User Interface: Keyboard 3.1

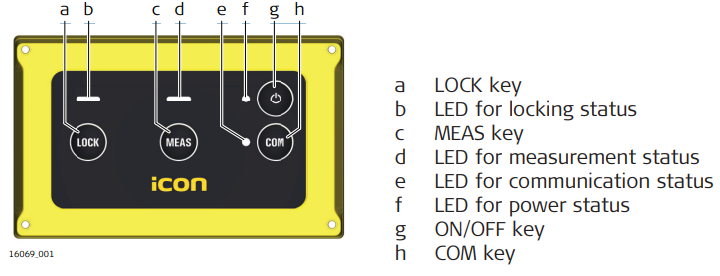

iCT30 Keyboard

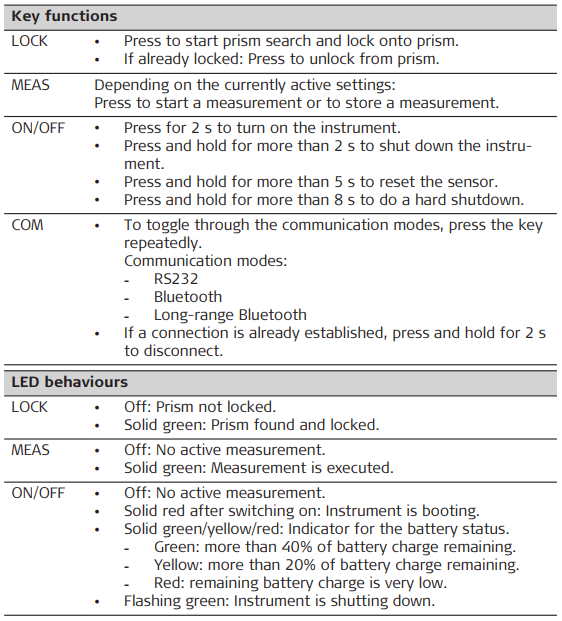

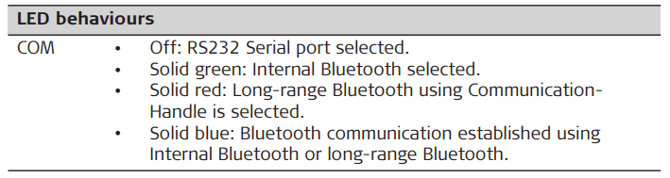

iCT30 key functions and LED behaviour: The following description of key functions and LED behaviours applies to the iCT30 being connected to a field controller.


iCT30 key functions and LED behaviour in standalone mode: The following description of key functions and LED behaviours applies to the iCT30 being used without a field controller.
