Automatic Target Aiming (ATR) 7.4

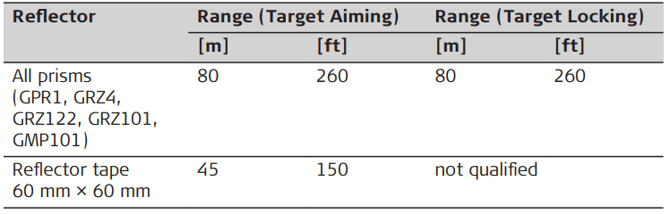

Range of target aiming/target locking


☞ The maximum range can be restricted by poorer conditions, for example rain.





ATR accuracy with the GPR1 prism

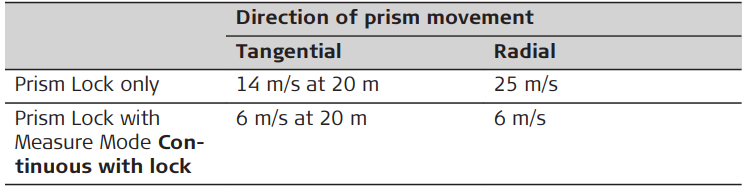

Maximum prism speed

☞ A tangential movement means the prism is passing by the instrument at the specified distance. A radial movement means the prism is moving away from or towards
the instrument in the line of sight direction.

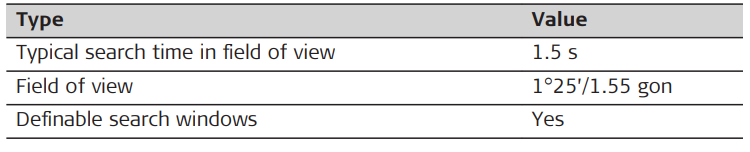

Searching

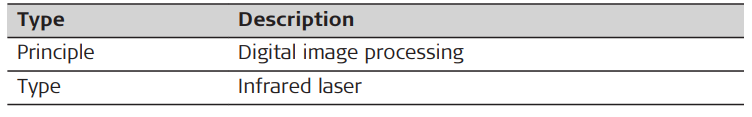

Characteristics
