Main Menu 5.2
Description: The Main Menu is the first screen displayed when the instrument is switched
on.

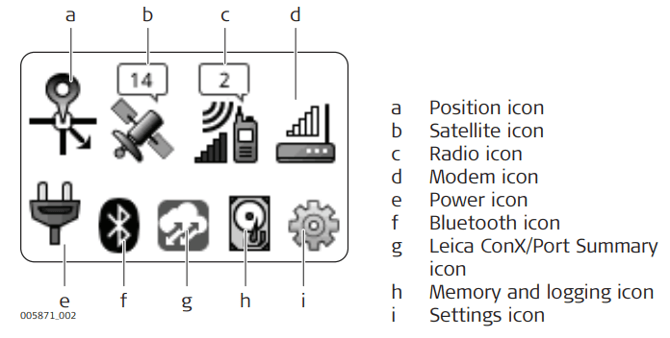

Main Menu content: The Main Menu features a matrix set of menu icons.

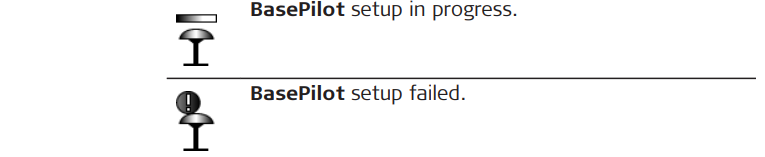

☞ The appearance of the menu icons depend upon the current instrument status and setup.

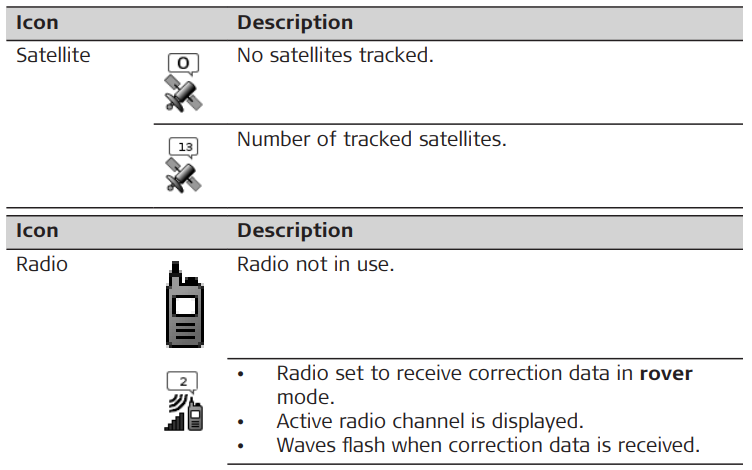

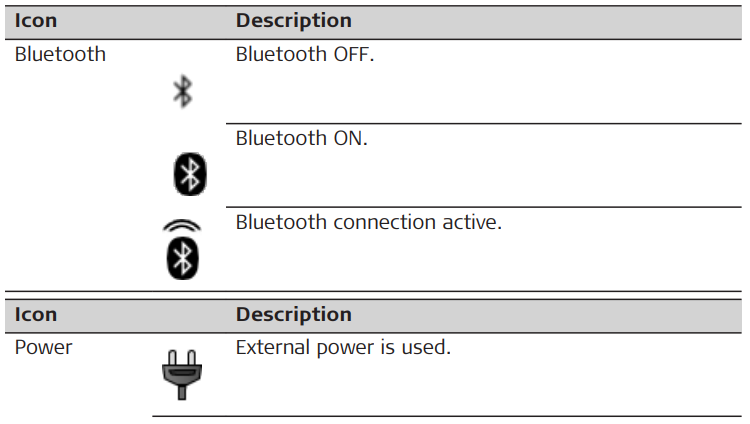

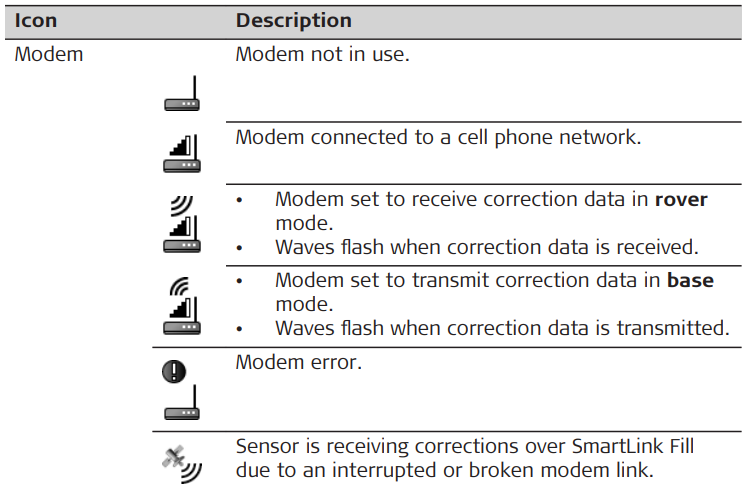

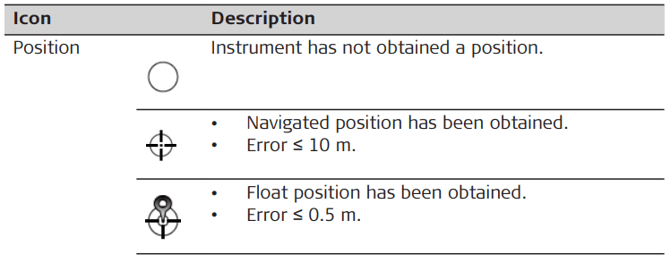

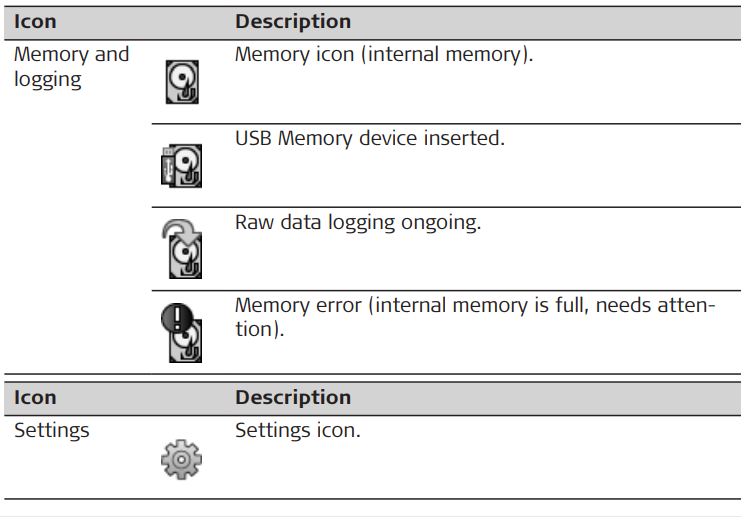

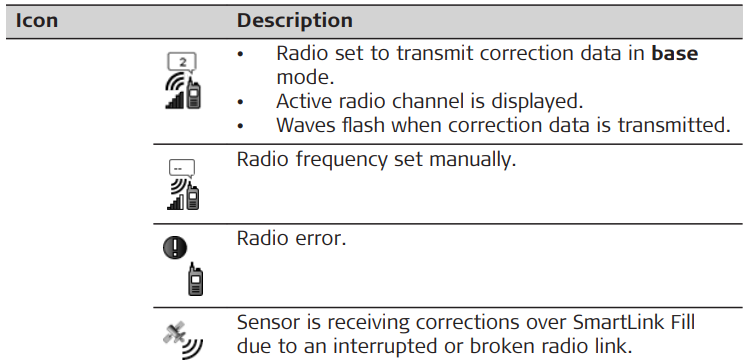

Additional icon information: The menu icons on the display provide additional information related to basic instrument status.
