Import, Export, or Delete Data 6.6

Access the Import /Export / Delete function: Select Settings > Tools > Import / Export / Delete to import or export data from/to a USB Memory device installed in the instruments USB port or to delete data from the instruments internal memory.

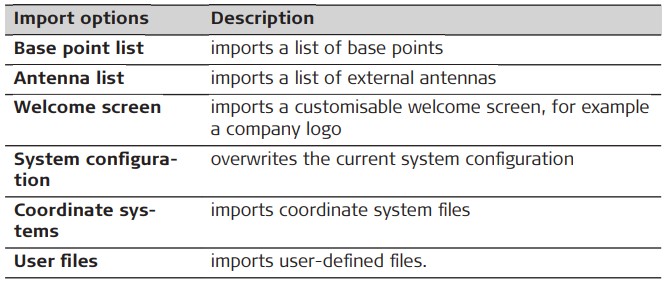

Import data from USB: Select Settings > Tools > Import / Export / Delete > Import from USB to import data from a USB Memory device installed in the instruments USB port.

☞ To import data from a USB Memory device to the instrument appropriate folders must be created on the USB device and the files placed in the correct folder: for Coordinate Systems a folder called CoordinateSystems is needed, for User files a folder called User is needed, while files for Base Point list, Antenna list, Welcome Screen, and System Configuration need to be placed in a system folder.

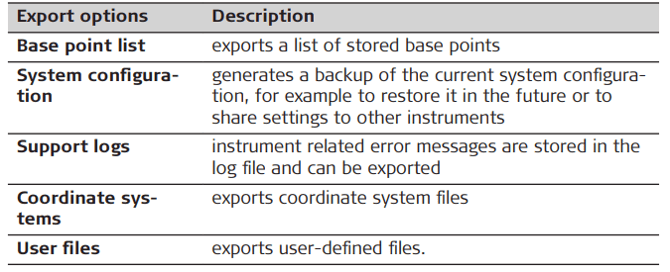

Export data to USB: Select Settings > Tools > Import / Export / Delete > Export to USB to export data to a USB Memory device installed in the instruments USB port.

☞ To export data to a USB Memory device no folders must be created on the device. The appropriate folders are automatically created by the software.

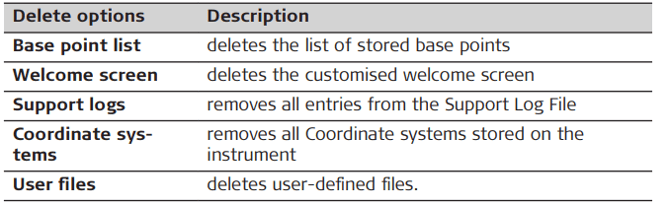

Delete data on the instrument: Select Settings > Tools > Import / Export / Delete > Delete on instrument to delete data from the instruments internal memory.
