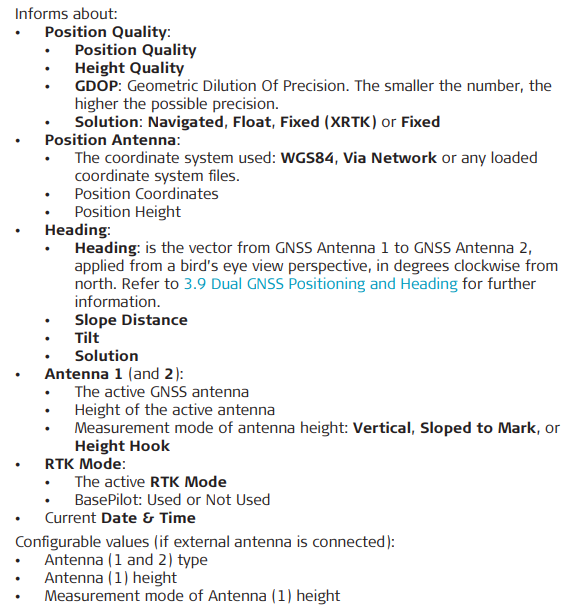

Position Menu
☞
☞ Information about Antenna 2 as well as Heading is only valid for the iCG82 instrument with installed Dual positioning and Heading licence, when both GNSS antennas are connected and have a clear view of the sky.
Satellite Menu
Informs about:
• Satellites Antenna 1 (and 2):
• The number of tracked satellites and available satellites, if no position is given (no base correction data received).
• The number of used satellites and available satellites, when position is available (with base correction data).
• Cut-Off Angle: below this defined angle satellites will not be taken into account for calculations.
• Reference Satellites:
• The number of reference satellites, in rover mode only.
Configurable value:
• Cut-Off Angle, for iCG82 applied to both antennas.
Radio Menu
Informs about:
• Radio status information, including managing internal power supply for the radio
• Connection details of the internal and / or external radio
• Base station information
• Radio channel, frequency and bandwidth
• Internal power supply Yes/No, Radio On/Off
• Protocol (for some radio types only)
• Correction format (only in base mode)
When in base mode, the RTK correction format can be edited from within the radio menu.
• FEC (Forward Error Correction) (for some radio types only)
Configurable values:
• Radio channel, frequency and bandwidth
• Internal power supply Yes/No, Radio On/Off
• Protocol (for some radio types only)
• Correction format (only in base mode)
When in base mode, the RTK correction format can be edited from within the radio menu.
• FEC (Forward Error Correction) (for some radio types only)
☞ For an internal Satelline radio or an external GFU30 radio the frequency can be set manually and FEC turned On/Off, when radio firmware version 07.27.2.1.1.5 or higher is installed.
Modem Menu
Informs about:
• Internal Modem:
• Modem type and connection details
• Managing internal power supply for the modem
• RTK status
• Base Station information
Configurable values:
• Internal power supply for the modem Yes/No
• Modem connect/disconnect
• Selected mobile internet service type
• Correction format (only in base mode) When in base mode, the RTK correction format can be edited from within the modem menu.
Power Menu
Informs about:
• The port used for external power supply
• The input voltage
Configurable values:
• None
Bluetooth Menu
Informs about:
• Bluetooth connection details and status
Configurable value:
• Activate/deactivate Bluetooth
Leica ConX and Port Summary Menu
Informs about:
• The status of Leica ConX and its functions View, Track and Sync
• Enable or disable the Share screen function, to allow a remote user to
view the instrument’s screen
• The different ports and their usage/status
Configurable values:
• Activate/deactivate Share screen
Storage Menu
Informs about:
• Internal Memory:
• Free/Used/Total Memory
• Raw data logging active/inactive
• USB Storage:
• Free/Used/Total Memory, when a USB memory device is inserted
Configurable values:
• None
Contains following submenus:
• Tools
• System Information
• System Configuration
• Service
• Copyrights
Settings Menu: Tools

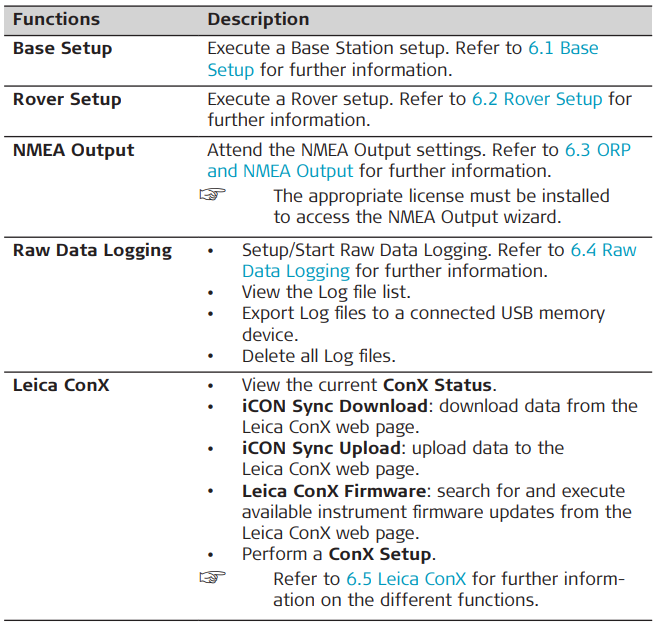

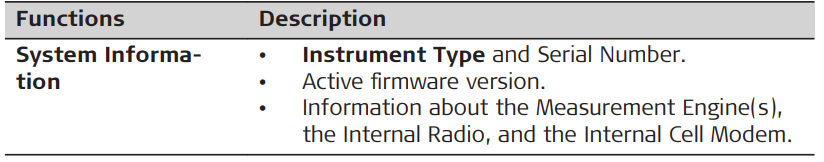

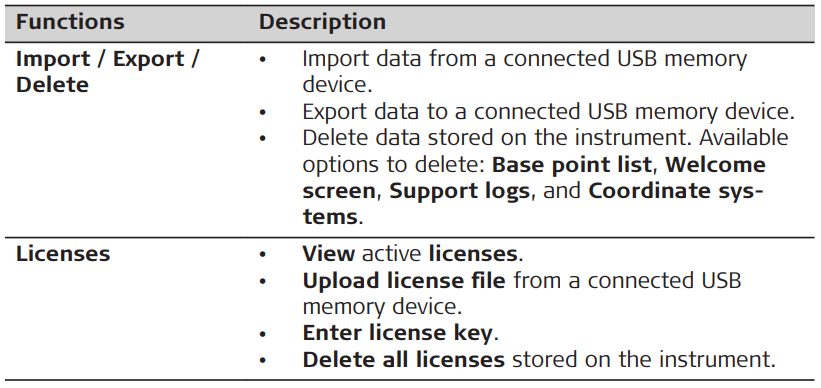

Settings Menu: System Information

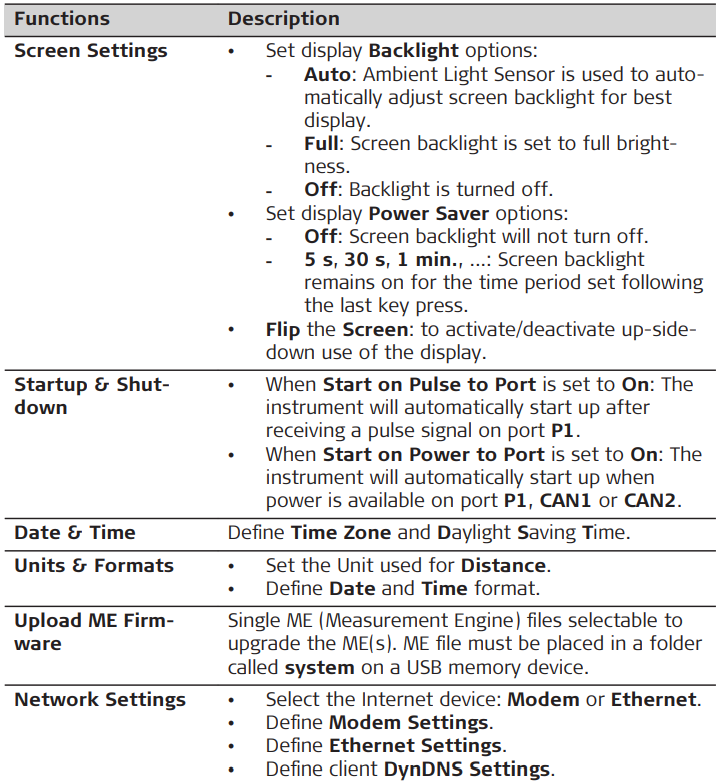

Settings Menu: System Configuration

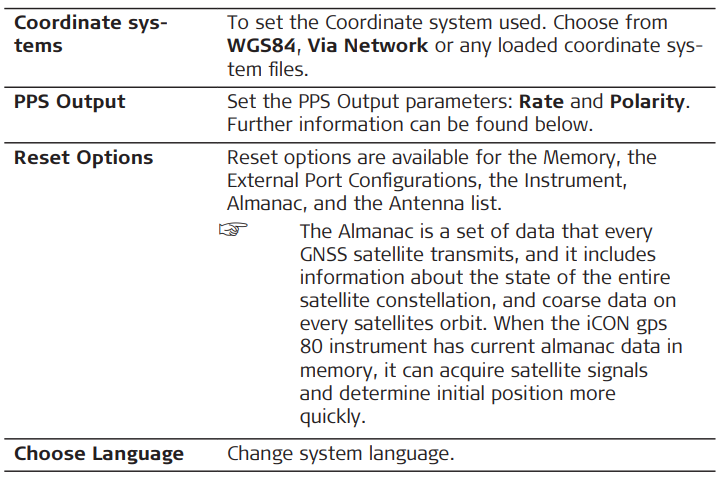

PPS Output - Description
• PPS stands for Pulse Per Second. If configured, iCON gps 80 sends out an electric pulse at a specified interval time. For example, this could be used to activate another device.
• PPS output is possible using the Data/Power port P1 on the iCON gps 80.
• The PPS output source is a 0 V to +5.0 V signal referenced to Vin negative.
PPS Output - Parameters to set
• Rate: Defines the interval at which the pulses are output.
• Polarity: Defines if the pulses are output at the negative or positive edge of the pulse.

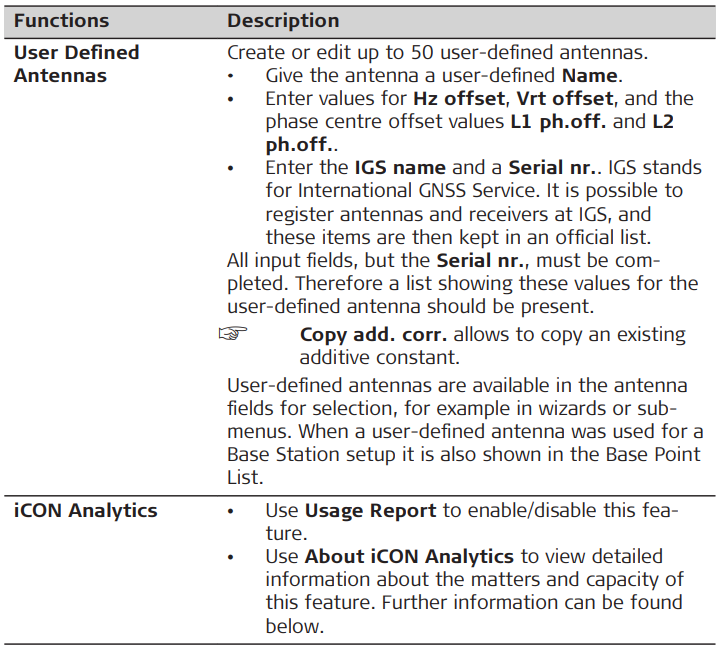

iCON Analytics - detailed information
Leica Geosystems would like your help to improve this product. Your iCON device can automatically collect diagnostic and usage info from your device and send it to Leica Geosystems for analysis - but only with your permission. Diagnostic and usage information may include details about hardware and operating system specifications, performance statistics, and data about how you use your devices and applications. The collected information may also contain the location and serial number of the hardware. This collected information is stored on a cloud based server and will be used for troubleshooting
and for shaping future development of the product. We encourage users to select the option to Auto Send diagnostic and usage info when prompted. You may also, at any time, choose to turn off the monitoring of usage altogether. To do so, open System Configuration, iCON Analytics, and choose Don't send.

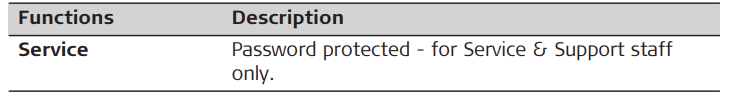

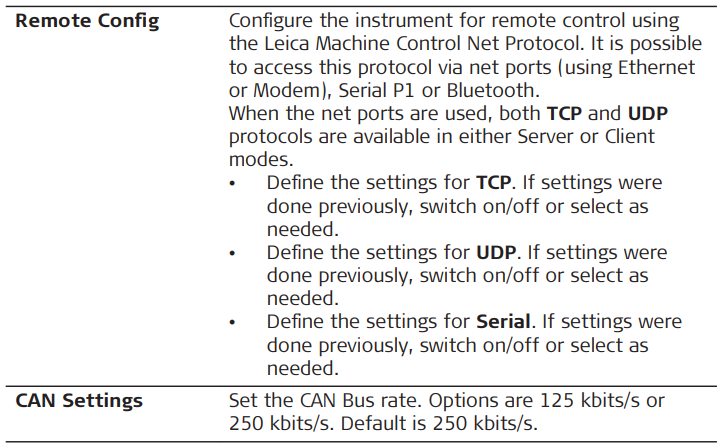

Settings Menu: Service

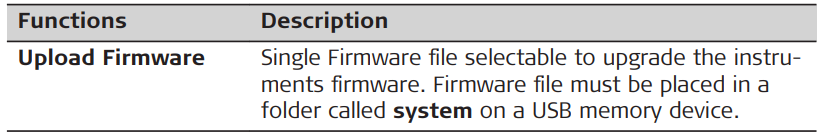

Settings Menu: Copyrights
This software contains copyright-protected software that is licensed under various open source licenses.
• Press Settings > Copyrights to view the copyright information and a link to download the source code and license text.
And/Or
• The according copyright statements and license texts are part of the documentation delivered with this product.
If foreseen in the corresponding open source licence, you may obtain the source code, license texts and other related data on the open source centre website of Leica Geosystems, http://opensource.leica-geosystems.com.
