Description: This proprietary Leica message provides the current Position and Quality in
either Geodetic or Grid coordinates for one or two antennas plus the resulting
orientation.
Access: Select Settings > Tools > NMEA Output. Select NMEA Out 1 or NMEA Out 2 and toggle to Edit. ORP is available on the second page of the wizard.

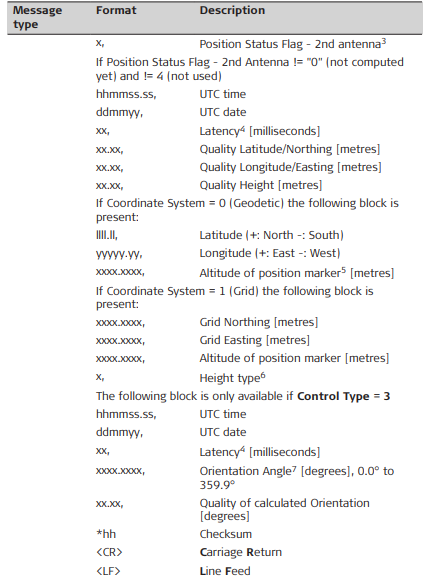

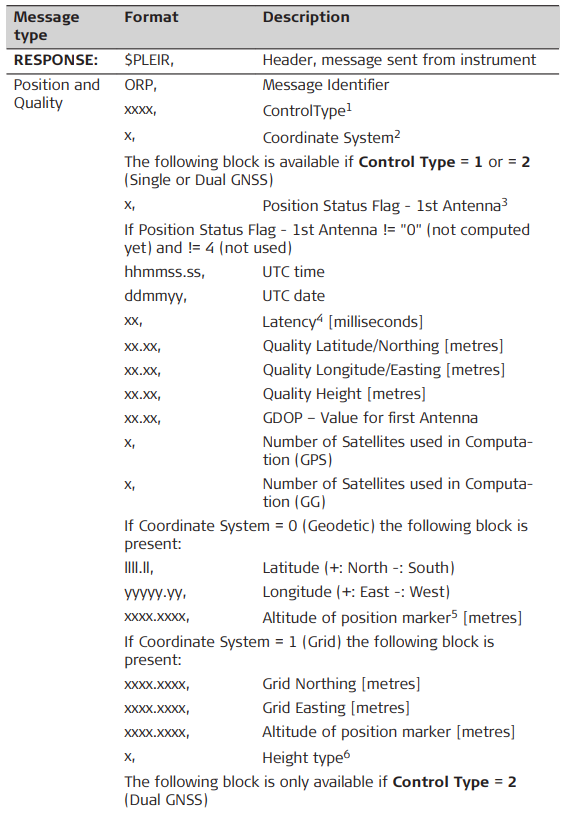

Description of fields
1 Control Type
1: Antenna1 Position Information
2: Antenna1 and Antenna2 Information
3: Antenna1 and Antenna2 Information + Orientation
2 Coordinate System
0: WGS Geodetic
1: Local Grid
3 Position Status
0: Computed Position not yet available
1: Differential code Position
2: Differential phase Position
3: Non-differential Position
4: xRTK
4 Latency given is defined as the difference in time between the UTC of the measurements used in the computation and the UTC of the first Message byte sent out the instrument port.
5 Ellipsoidal height is forced for Geodetic coordinates. Orthometric height is forced for Grid coordinates.
6 Height
0: Ellipsoidal height
1: Orthometric height
7 Orientation is available for Local Grid and WGS84.
Example
$PLEIR,ORP,
3,1,2,084709.25,310713,50,0.006,0.005,0.016,1.847,5,7,5250781.241,5466
72.161,371.528,1,254,084709.25,310713,100,0.005,0.004,0.012,5250781.2
77,546671.390,371.497,1,084709.25,310713,100,272.683,0.592*23
