Real-time reference setup for raw data logging
Real-time reference setup for raw data logging step-by-step

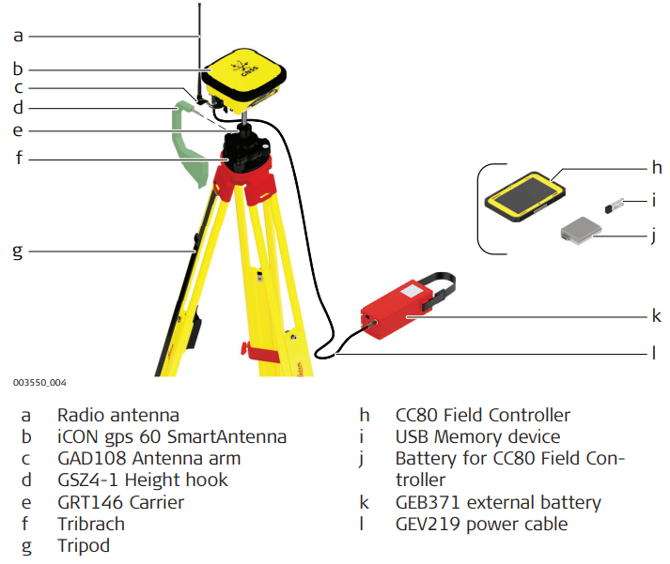

1. Setting Up the Equipment
• Set up the tripod, mount and level the tribrach onto the tripod.
• Check that the tribrach is correctly centred over the marker.
• Place and lock the carrier into the tribrach.
• Screw the iCON gps 60 SmartAntenna onto the carrier.
• Check that the tribrach is still correctly positioned and levelled.
• Hang the external batteries onto the tripod legs.
• Take the GEV219 cable.
• Attach the connector with the 8 pin plug to the iCON gps 60 SmartAntenna.
• Attach the connector with the 5 pin plug to the external battery.
• Turn on the antenna and the controller.
2. Configuring the Raw Data Logging
• Refer to 6.4 Raw Data Logging.
3. Perform a Base Station setup on the iCON gps 60 SmartAntenna or run the Reference Setup application of the iCON site software
• Refer to 6.1 Base Setup respectively the iCON site Software Manual for further information.
