Description: With a connection between the instrument and the Leica ConX web page,
Leica ConX offers:
• View: Enables a remote user to access the instrument to view or control it.
• Sync: To exchange data between the instrument and a remote web page.
• Track: Enables a remote user to track the current position of the instrument.
• Remote firmware upgrade: Allows new instrument firmware files to be downloaded and installed remotely.
☞ To use this functionality an account is needed for the Leica ConX web page. The license is handled on the instrument. Ask your agency or your Leica Geosystems representative for information about licensing and how to get an account.
☞ An Internet connection on the instrument is needed, using a 4G modem. Refer to 3.3 Installing a SIM Card for information about SIM card installation.

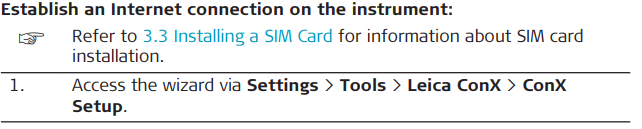

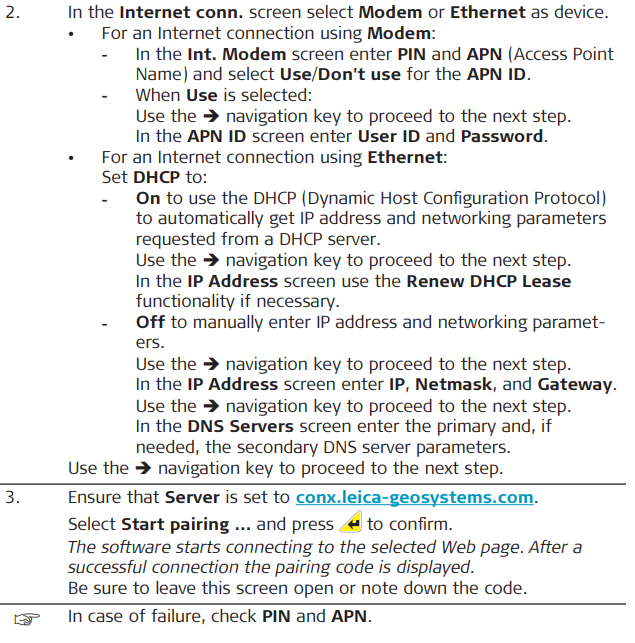

Leica ConX first setup step-by-step- To use the Leica ConX functionality perform following setup works in the given order:

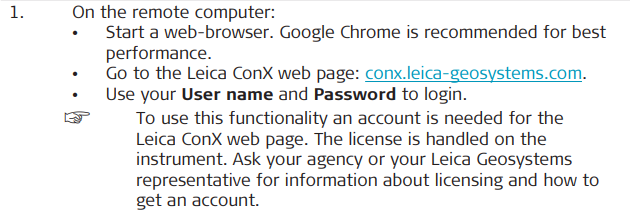

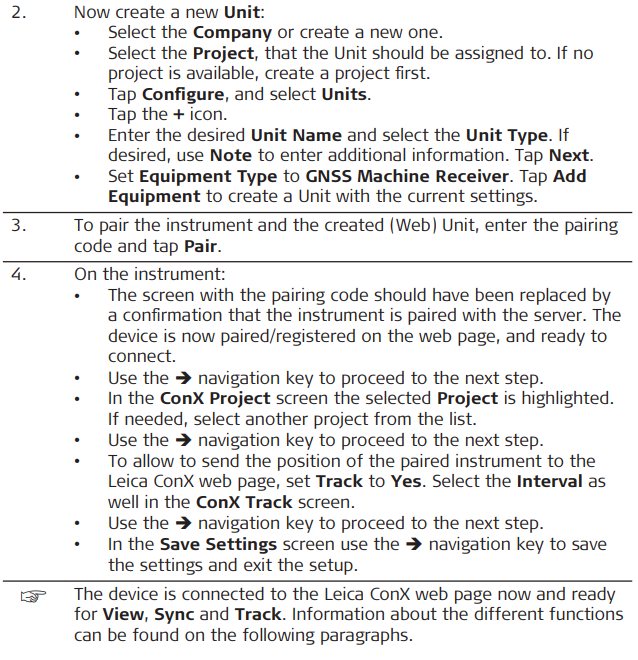

Pair the instrument to the Leica ConX web page.
☞ This is only necessary for the first time the instrument is connected to the Leica ConX web page.
ConX Status- Use Settings > Tools > Leica ConX > ConX Status to:
• enable or disable the Share screen function, to allow a remote user to view the instrument’s screen,
• view the status of Leica ConX and its functions View, Track and Sync.

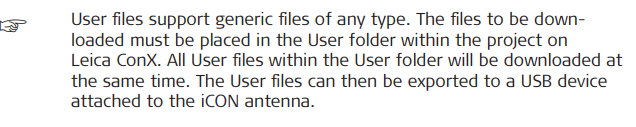

iCON Sync Download

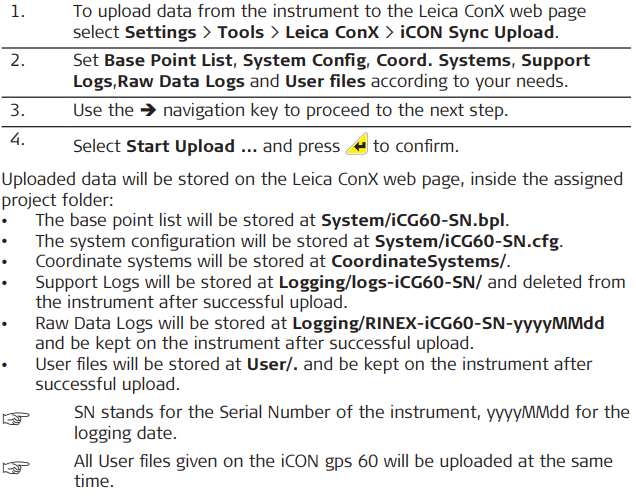

iCON Sync Upload

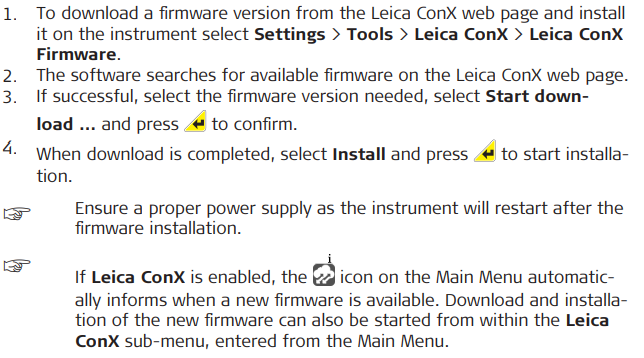

Leica ConX Firmware

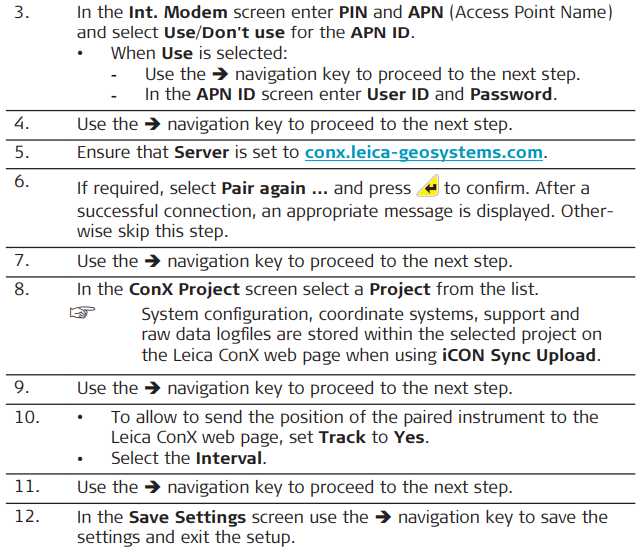

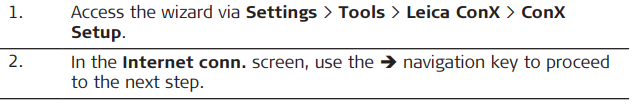

Leica ConX settings step-by-step
