Installing a SIM Card 3.3

• Keep the card dry.
• Use it only within the specified temperature range.
• Do not bend the card.
• Protect the card from direct impacts.


Failure to follow these instructions could result in data loss and/or permanent damage to the card.

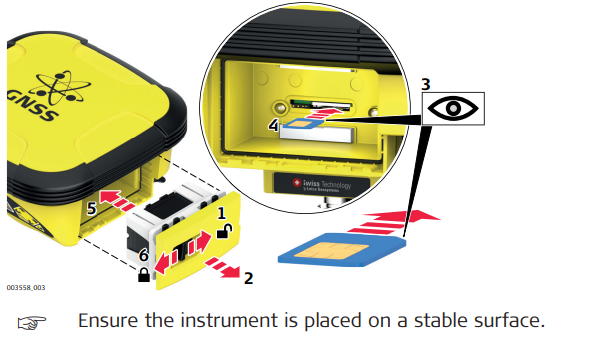

Insert and remove the SIM card step-by-step



  1. Push the slide fastener in the direction of the arrow with the openlock symbol.
  2. Pull out the battery holder.
  3. Orientate the SIM card as illustrated.
  4. Insert the SIM card into the card slot and push it in until it locks in place.
  5. Insert the battery holder. Check for proper seating!
  6. Close the battery compartment by pushing the slide fastener in the direction of the arrow with the close-lock symbol.
