Symbols Used for Describing the NMEA Formats A.2

Description: NMEA messages consist of various fields. The fields are:
• Header
• Special format fields
• Numeric value fields
• Information fields
• Null fields
Certain symbols are used as identifier for the field types. These symbols are described in this section.

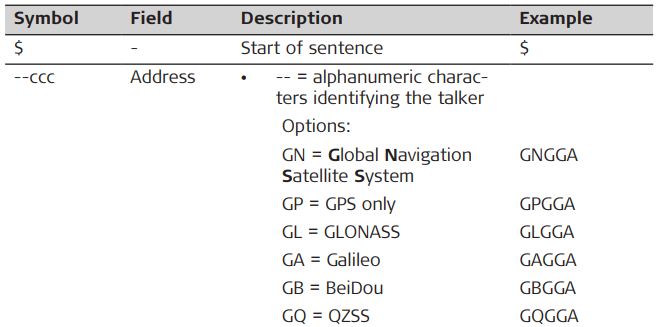

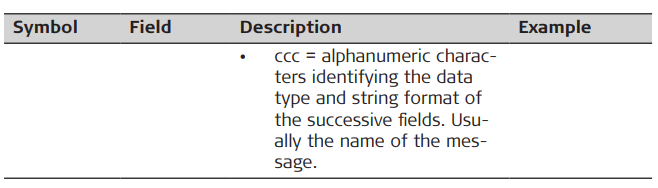

Header

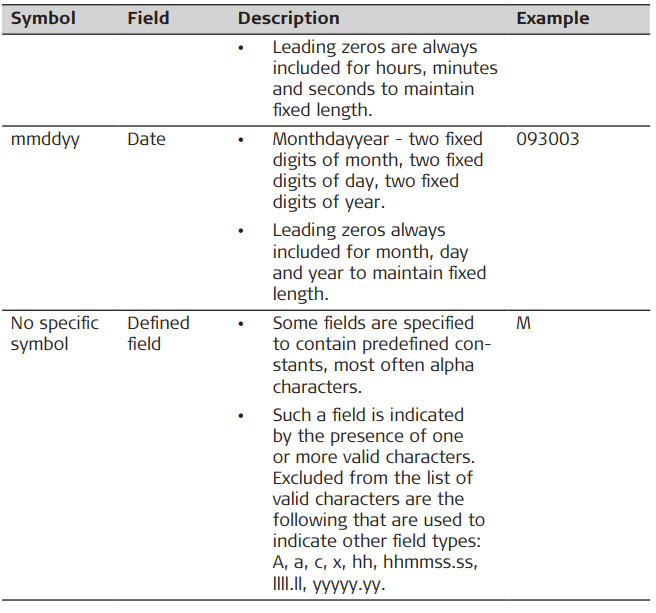

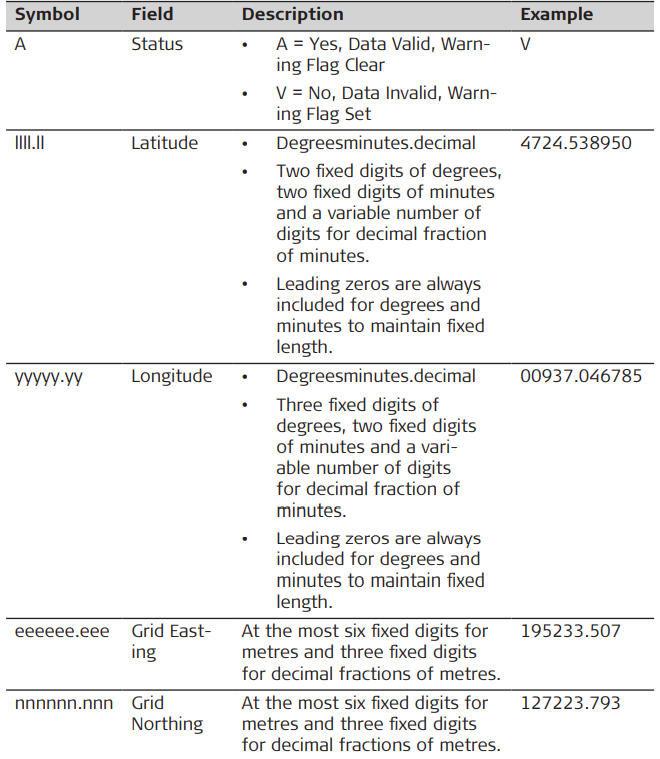

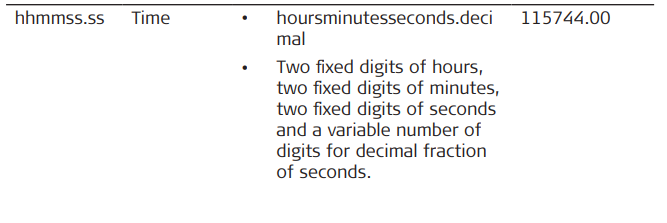

Special format fields


Numeric value fields


Information fields

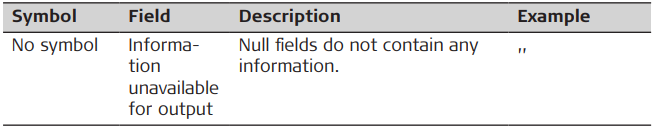

Null fields


☞ Fields are always separated by a comma. Before the Checksum field there is never a comma.


☞ When information for a field is not available, the position in the data string is empty.
