AutoPole functionality: Functionalities are listed according to the individual sales variants.
☞ AP20 can only be used in combination with an AP Reflector Pole (CRP4, CRP5, GLS51 and GLS51F) or an AP Mini Pole (GLS53 or GLS54).
☞ Establish a Bluetooth connection between the AP20 and the field controller or the total station in order to be operative. Use the connection wizard.

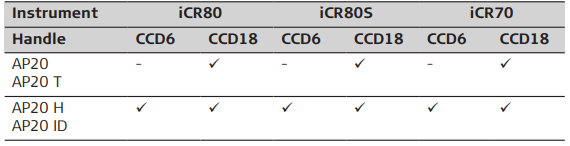

Supported connection types
Supported: AP20 (all variants) with TPS
☞ A robotic TPS must be connected to a controller first. Then connect to AP20.
TS16 and MS60 can also be used.
Not supported
• AP20 (all variants) with GNSS (no PoleHeight)
• Onboard use case

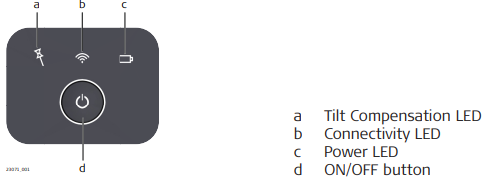

Description of the AP20 ON/OFF button and status LEDs
Diagram
