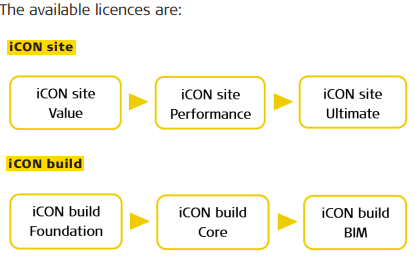

Licencing: A licence for using the iCON software can be acquired on three different levels.
Upgrade options
In total there are four upgrade options available:
• From 'site Value' to 'site Performance' and from 'site Performance' to 'site
Ultimate'.
• From 'build Foundation' to 'build Core' and from 'build Core' to 'build BIM'.
For detailed information on which Tools/View options are available on which
level, refer to:
iCON site: Overview of available Apps/View Options/Tools
iCON build: Overview of available Apps/View Options/Tools
Optional licences
For detailed information on optional licences for each level, refer to:
Availability of Optional Licences for iCON site
Availability of Optional Licences for iCON build
☞ You may also refer to the Equipment Lists that can be downloaded from myWorld and/or ask your agency or your Leica Geosystems representative for information about licencing.

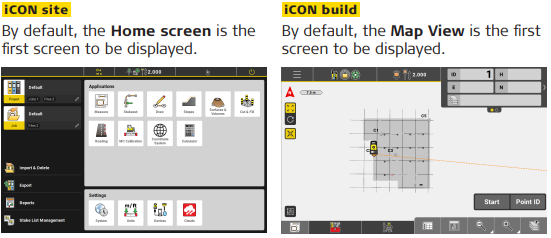

Startup
1. The iCON software starts automatically after the device is switched on.
2. In case the iCON software was exited, you can re-enter by selecting iCON
from the Start menu or Desktop within Windows.
See also: Display

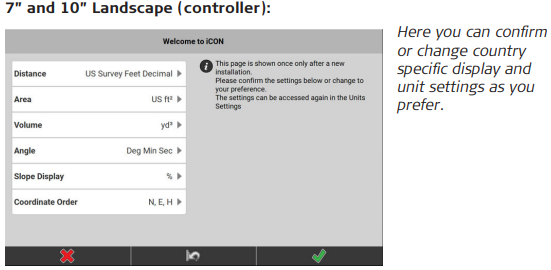

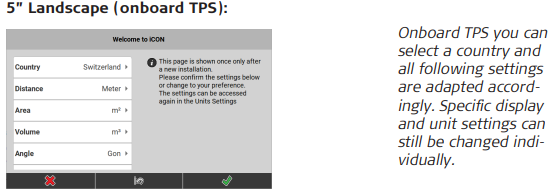

Startup after new installation
On the first startup after a new installation of the iCON software a Welcome
page is displayed.
☞ On upgrading the software the settings will be kept unless you install the software choosing to restore factory defaults.
☞ The same settings can always be changed later via Settings > Units & Tolerances and Settings > System > Display. See also: Distance & Angle/Display

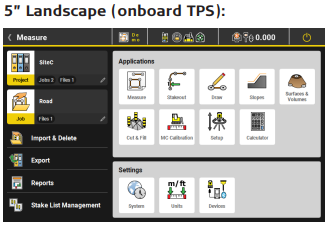

Display formats: The iCON software is available in different display formats, depending on the equipment you are using.
☞ Sample screenshots are taken from iCON site.
☞ If you have got an 'iCON site Excavator' licence, you can optionally switch the display to portrait mode on the CC200 controller
The applications used in each display format have the same functionality.

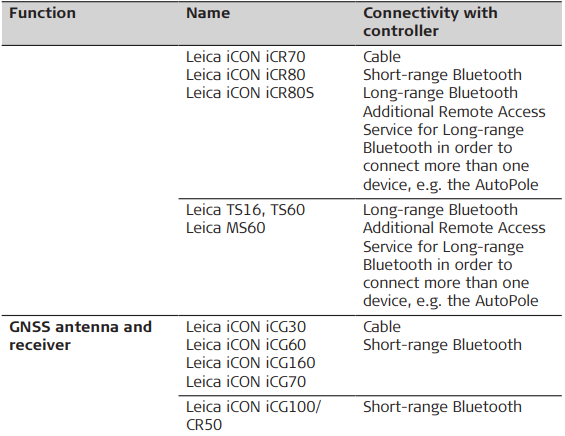

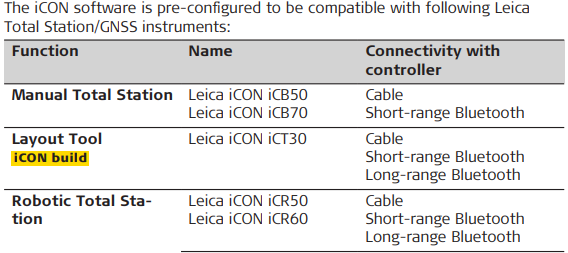

Instruments and connectivity
☞ For further information on the specific instrument, please refer to the associated manual provided with the product.
Data storage, connectivity of controller
Both the 7” and 10” controllers can record and store data internally. Data can
be transferred to an Office PC using a USB connection.
☞ For further information regarding a specific instrument, please refer to the associated manual provided with the product.

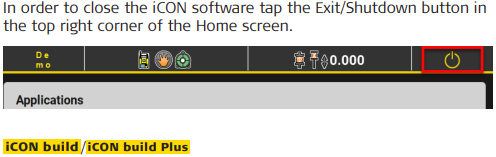

Logout/Shutdown
- iCON site/iCON site Plus
☞ For detailed information on the iCON site/iCON site Plus classic Home screen versus the iCON build/iCON build Plus Admin Panel refer to: Overview on Home screen vs Admin Panel
2. Select between the following Exit/Shutdown options:
