Projects and Jobs 2.1

Projects and jobs overview

The iCON software allows the simple location and transfer of data between
instrument, controller and office.

Imported reference and control data is stored in the iCON software, within individual Projects. Jobs can be created and carried out within these projects.
Reports, measured data and calculated results are stored to the active job,
ready for exporting.

This allows you to create a project with specific reference and control data,
and then carry out multiple jobs within this project.

☞ Jobs are created within the active project. All imported data is available for all jobs within that project.

Example of a basic data flow/storage directory structure

Projects
|
|--|Project 1
|--|--|Imported data
|--|--|Jobs
|--|--|--|Job 1
|--|--|--|--|Reports
|--|--|--|--|Measured data
|--|--|--|--|Calculated results
|--|--|--|Job 2
|--|--|--|Job 3
|--|--|--|Job 4
|
|--|Project 2
|--|Project 3
|--|Project 4

Projects: To create, edit, select or delete a project, tap Project from within the Home screen/Admin Panel.

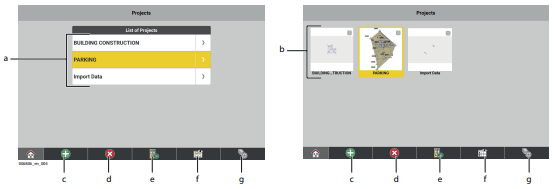

When working with the 'Classic Home screen' (iCON site/iCON site Plus default), then the Projects page gets displayed. The currently active project is highlighted in yellow.

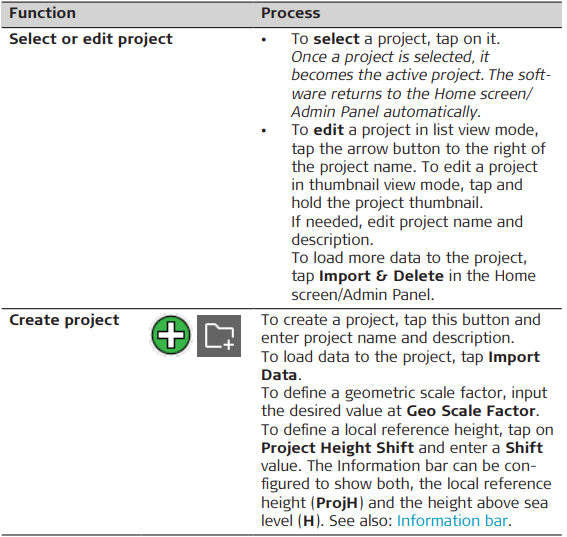

    1. Select or edit project (list view mode, default)
    2.  Select or edit project (thumbnail view mode)
    3.  Create project

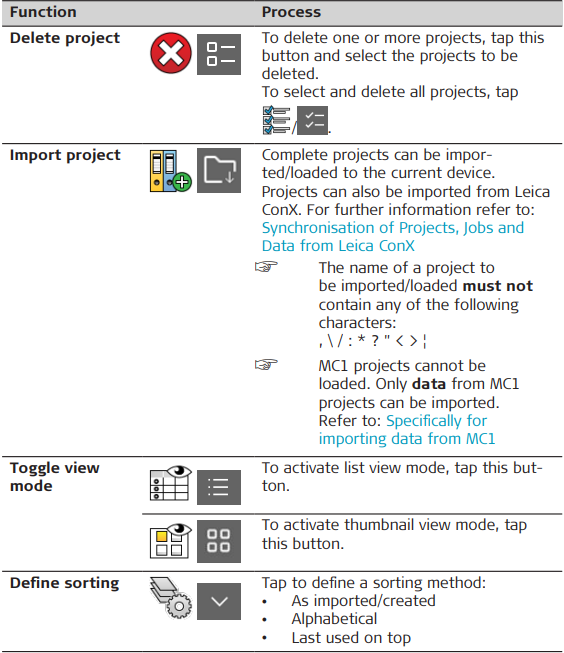

    4. Delete project
    5.  Import project
    6.  Toggle view mode
    7. Define sorting

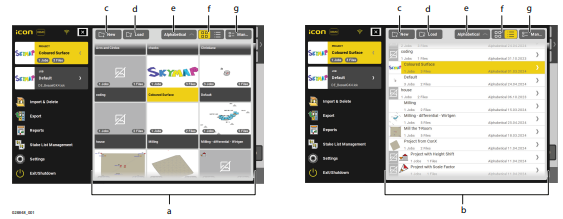

When working with the 'Admin Panel' (iCON build/iCON build Plus default),
then the Project panel gets diplayed. The currently active project is highlighted in yellow.

    1. Select or edit project (thumbnail view mode, default)
    2. Select or edit project (list view mode)
    3. Create project
    4. Import project
    5. Define sorting
    6.  Toggle view mode
    7.  Manage projects > Select All/Delete

☞ On how to change default settings from using the 'Classic Home screen' to using the 'Admin Panel' and vice versa, refer to: System Settings > Display



☞ Projects are not backwards compatible: it is not possible to use a project with an older version of the software.

☞ Data can be loaded to the active project using Import & Delete, refer to Importing data to the project step-by-step.

Jobs

☞ Creating, editing, selecting and deleting jobs follows the same process as with projects.
Tap Job from within the Home screen/Admin Panel.

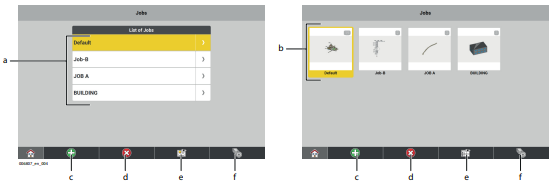

When working with the 'Classic Home screen' (iCON site/iCON site Plus default), then the Jobs page gets displayed. The currently active job is highlighted in yellow.

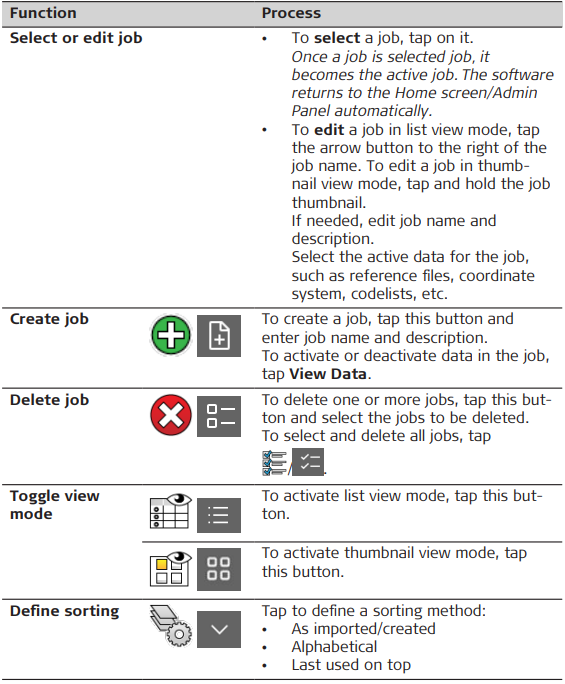

    1. Select or edit job (list view mode)
    2. Select or edit job (thumbnail view mode)
    3. Create job
    4. Delete job
    5. Toggle view mode
    6. Define sorting

When working with the 'Admin Panel' (iCON build/iCON build Plus default),
then the Job panel gets diplayed. The currently active job is highlighted in
yellow.

    1. Select or edit job (thumbnail view mode, default)
    2. Select or edit job (list view mode)
    3. Create job
    4. Define sorting
    5. Toggle view mode
    6.  Manage job > Select All/Delete

☞ On how to change default settings from using the 'Classic Home screen' to using the 'Admin Panel' and vice versa, refer to: System Settings > Display

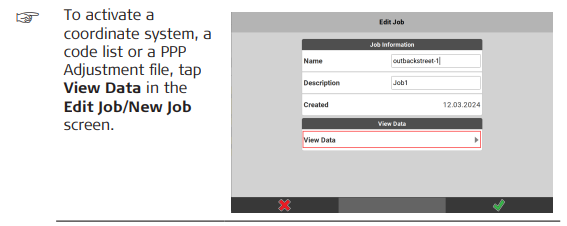

☞ Other imported data, such as reference files or control files, can also be activated or deactivated using the Map view manager, refer to  Map View manager.

☞ Data imported from Leica ConX is listed with an indicator. For further information refer to: Synchronisation of Projects, Jobs  and Data from Leica ConX
