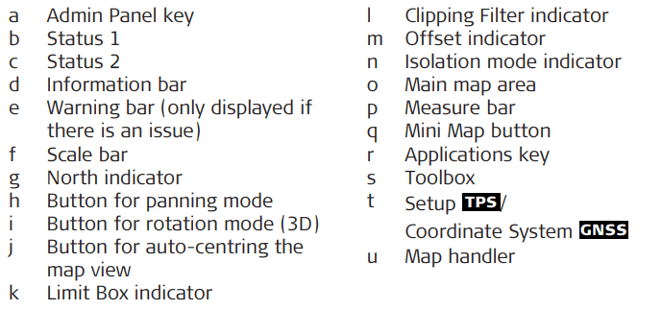

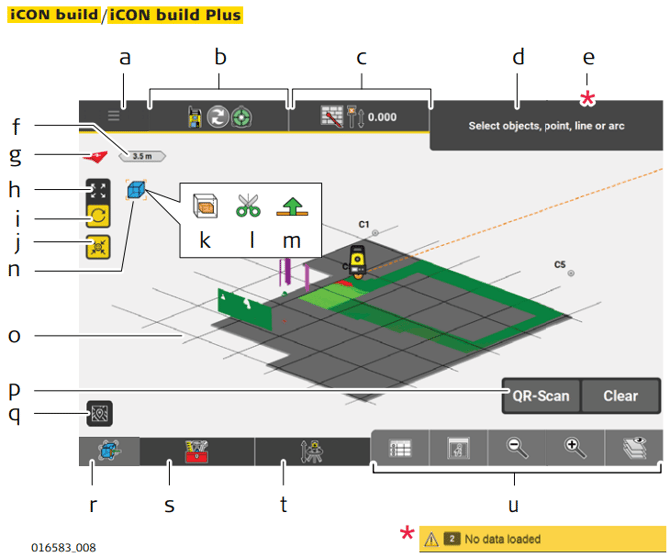

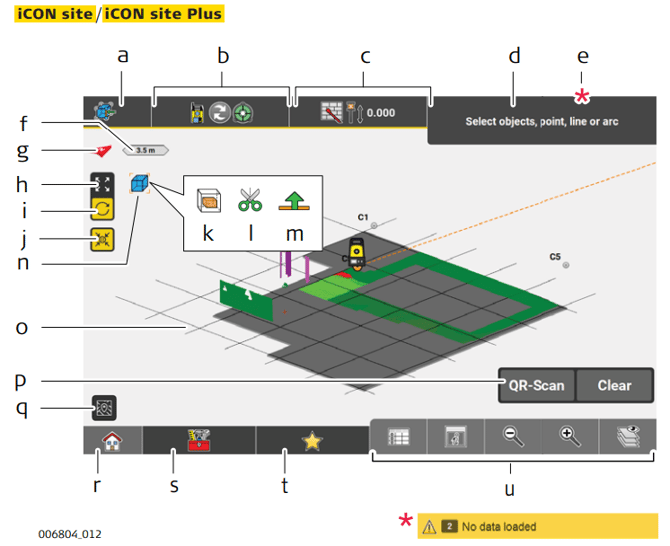

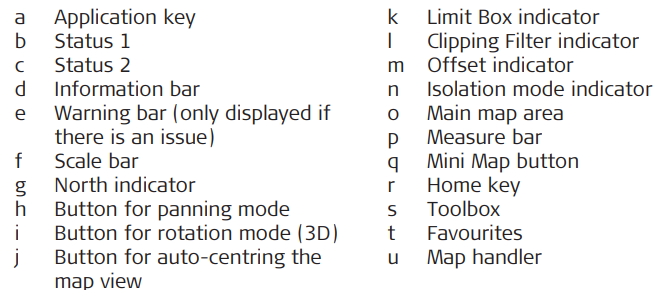

Default Map View

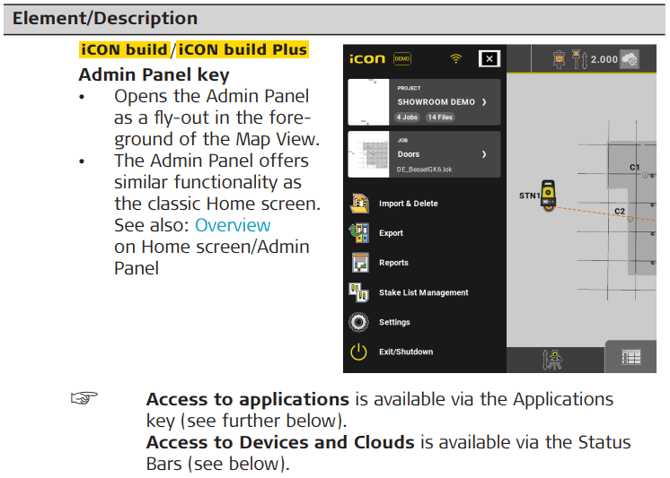

☞ On how to change default settings from using the 'Classic Home screen' to using the 'Admin Panel' and vice versa, refer to: Display
b Status 1
• Displays status of connected Total Station or GNSS instrument.
• Contains options to directly edit function/status of the connected instrument.
• Allows for viewing Total Station or GNSS Base Station information, depending on the connected instrument.
iCON build/iCON build Plus
Additional function when using iCON build/iCON build Plus default settings:
• The overall Devices Management can be accessed from here.
See also:
Status bar TPS
Status bar GNSS
c Status 2
• For TPS: displays status of target, for example pole and prism information, and controller.
• For GNSS: displays status of the communication devices (radio or modem). Contains options to edit relative settings.
• Displays Leica ConX status information, if Leica ConX license is
activated.
• The overall Clouds Management can be accessed from here.
See also:
Status bar TPS
Status bar GNSS
e Information bar
Displays information about the current measurement, the selected points, and all configured values. Tap and hold to configure.
d Warning bar
Displays any issues with the operation that may compromise usability.
