Managing Stakeout Lists 2.4
Stake List Management function: The Stake List Management function offers the following options
• Getting an overview of available stakeout lists within the active project.
• Checking the work progress of a stakeout list.
• Editing the name of a stakeout list.
• Selecting a stakeout list for staking out.
• Creating or deleting a stakeout list.

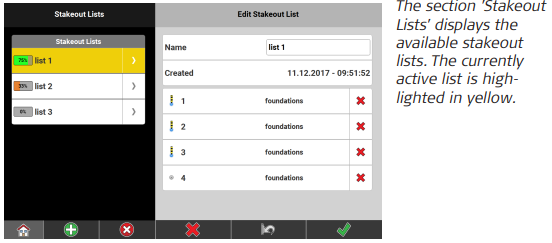

The Stakeout Lists screen
To display the Stakeout Lists screen, select Stake
List Management from the Home screen/Admin
Panel.

To select a different stakeout list for staking out, tap the name of the list. The
selected list gets highlighted.
To display the content of a stakeout list or to edit its name, tap the arrow button.
Already staked-out points are displayed greyed out and are
marked with a stakeout icon.
Work progress
A status icon displays the work progress as percentage of the total number
of points to be staked out. Additionally, the icon contains a progress bar with
changing colours.
Creating a stakeout list based on reference data or the point list

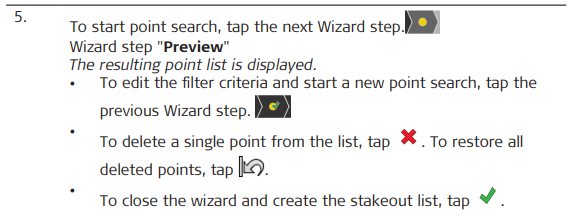

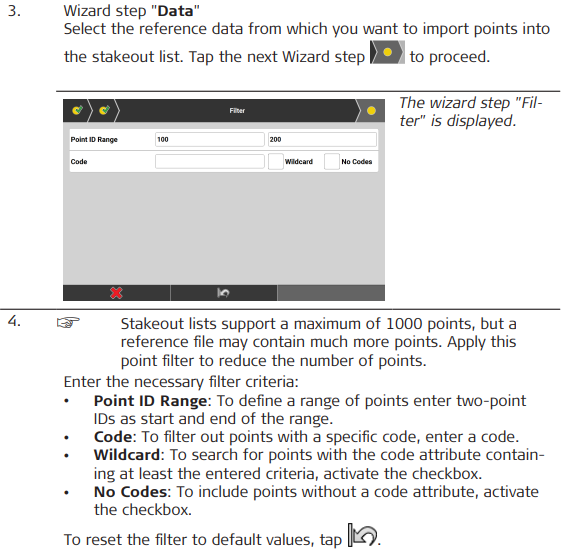

Stakeout list based on reference data
☞ Before creating a stakeout list, ensure that the necessary reference data is imported to the project.





Stakeout list based on point list
☞ You can use the point list to add points to a new or existing stakeout list.
For detailed information on using the Point list, refer to 3.9 Point
List, Searching for a Point.

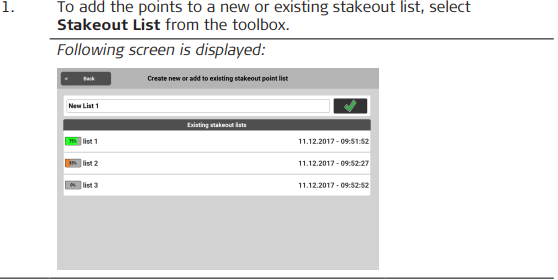

In the current application, select Point List
from the Map handler.

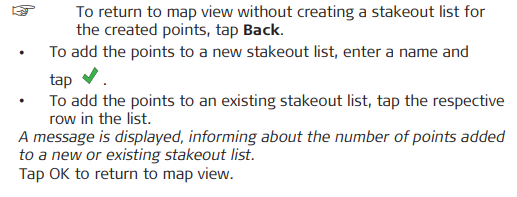

The Point List screen is displayed. ![]()
☞ Regardless of having points selected, the Stakeout List function always adds all points in the point list to the stakeout list. To reduce the number of points to be added, use the Point search function.


Exporting a stakeout list
If desired, you can export an individual stakeout list or all stakeout lists within
a project.
☞ Points in the stakeout list that already have been staked out, are not
included in the exported file.
For detailed information about possible export formats and how to export
files, refer to Exporting data step-by-step.
