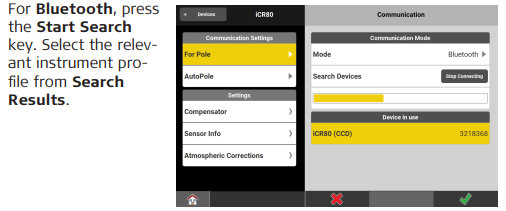

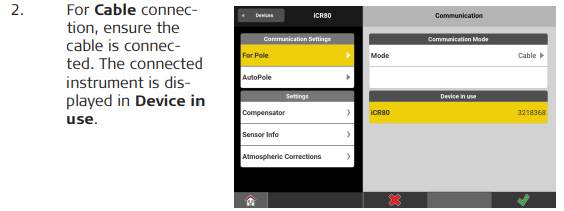

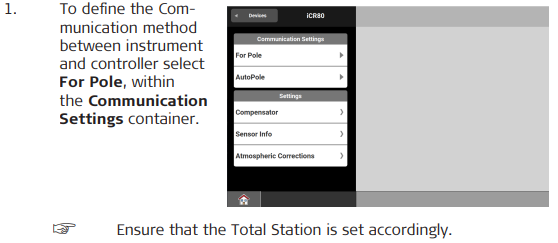

Define communication method step-by-step
☞ Once the instrument is connected, it changes from white to yellow
in the search list. Tap
.
☞ Once a profile has been created, connection to the instrument is automatically established each time the software is launched. Precondition for this automatic connection: the instrument is turned on with the correct communication method, and the relevant instrument profile is selected in the Profiles screen.
☞ To edit profile settings later, tap the arrow to the right of the profile name in the Profiles screen.

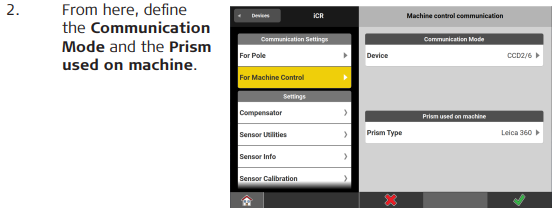

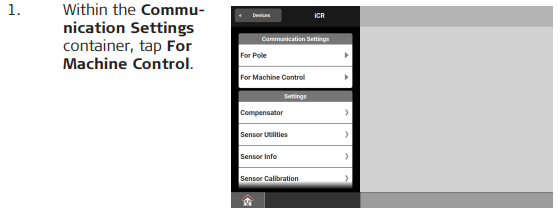

Machine communication
Within the iCON iCR50 and the PowerTracker profiles it is also possible to define communication settings between Instrument and Machine.

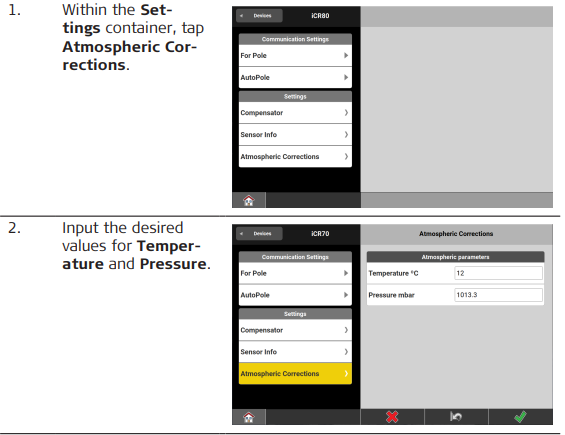

Atmospheric corrections: Within a Total Station profile it is also possible to define atmospheric correction settings.
☞ The values for Temperature and Pressure are displayed and must be entered according to the current unit settings.

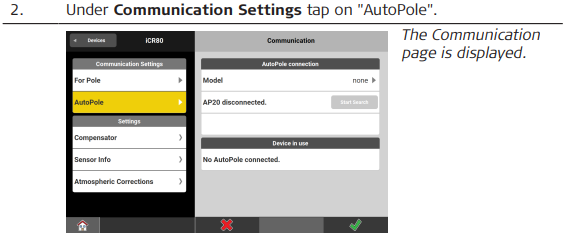

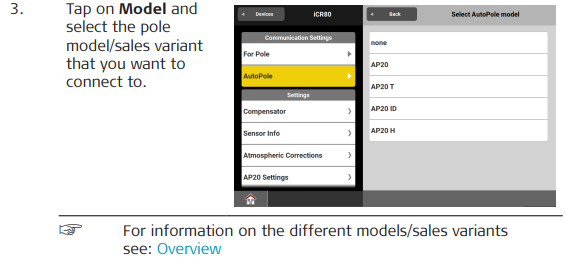

Editing TPS profile for using AutoPole step-by-step
