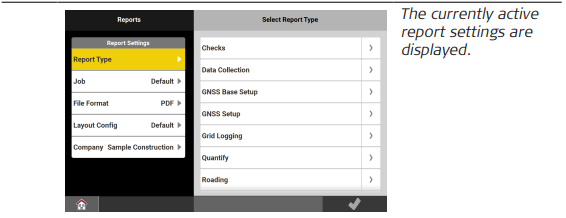

Available report types: Following report types are available
• Checks
• Verification
• Data Collection
• GNSS Base Setup
• GNSS Setup
• GridLogging
• Quantify
• Roading
• Stakeout
• TPS Setup
• Volume
☞ You can configure the template of a report type according to your needs. Refer to How to configure the template of a report type.
☞ GridLogging is only available with the Surface Pilot licence. Verification is only available with the Point Cloud licence.

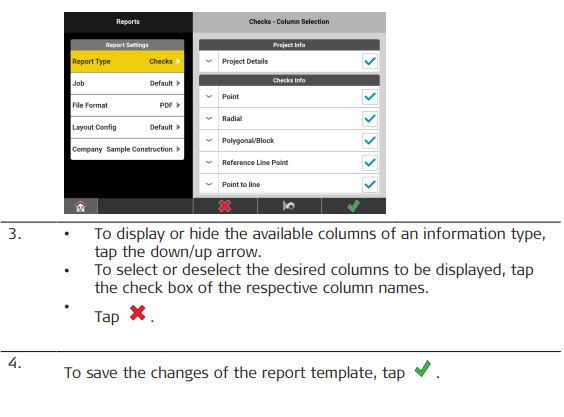

How to configure the template of a report type

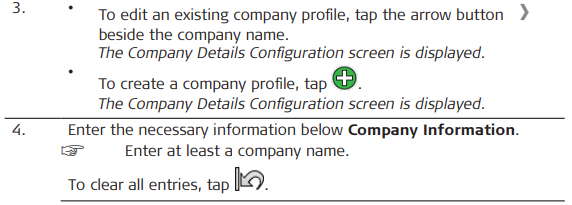

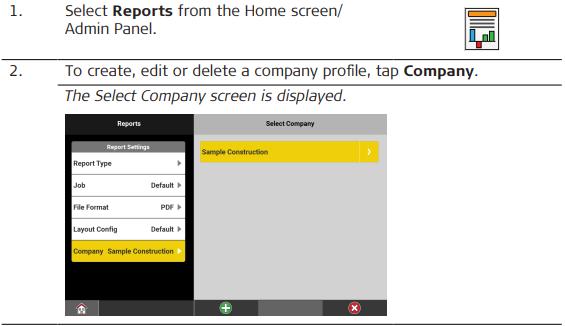

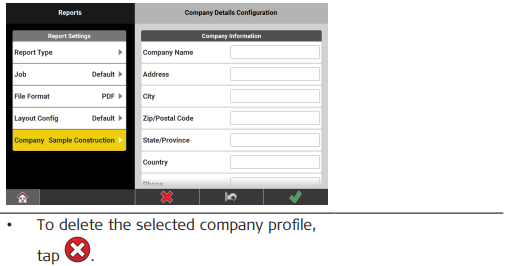

How to configure the company information
It is possible to configure the report to include a specific logo, address, contact
details and footer. You can create several company profiles and apply them to
the report as needed.

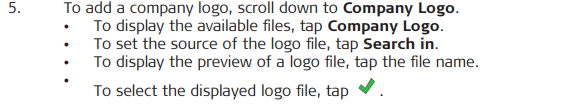

☞ You can add a company logo as .jpeg or .png file. Save such files in the internal memory or in the root directory of a removable data storage device.
Logo size:
• Minimum: 10 x 10 pixels
• Maximum: 102 x 1024 pixels
☞ You can add a footer as .jpeg or .png file. Save such files in the internal memory or in the root directory of a removable memory device.
The procedure is the same as for a company logo.
Footer size:
• Minimum: 300 x 1500 pixels
• Maximum: 10% of the height of the text or width size

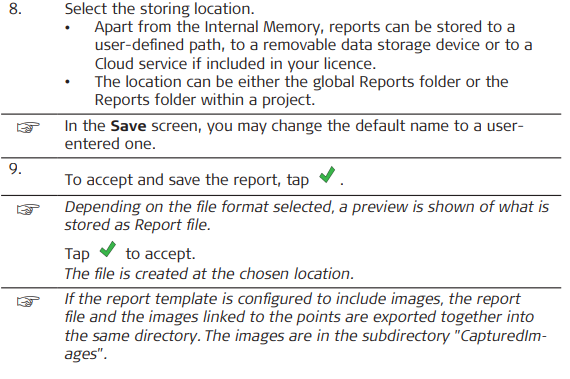

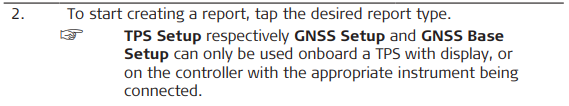

How to create a report step-by-step
