BIMPLUS Settings: BIMPLUS is a collaboration platform designed by Allplan to coordinate and
exchange project data.
All file types which are supported by iCON can be downloaded or uploaded.
☞ BIMPLUS requires the BIMPLUS licence.
1. Select Clouds from the Home screen.
When using iCON build the Clouds settings are
available from within the Status Bar 2, see also:
Status bar GNSS
Status bar TPS
2. Tap BIMPLUS Settings.

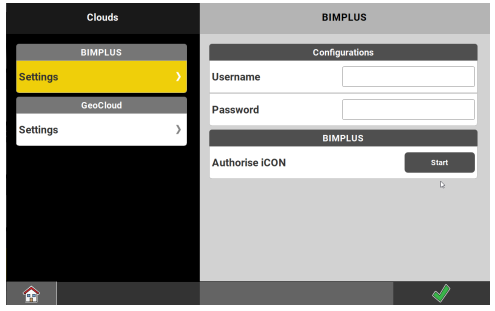

Following screen is displayed:
3. Enter your login data.
If necessary, create an account.
☞ To save your credentials tap
.
4. Tap Authorise iCON > Start, in order to connect to the BIMPLUS service.
5. Once the connection has been established, the iCON software issues a message, that authentication has been successful. Confirm the message with OK.
☞ Once authenticated, you can repeatedly access your documents online without having to start connection to the cloud service each time.
In the background, the iCON software receives an authentication token which is given to the BIMPLUS server to get a refresh token. The refresh token is saved in the Projects folder in iCON.
☞ The Start button changes to Logout. Tap the Logout button if you intend to disconnect from the cloud service.
6. While a connection to the BIMPLUS server is established, BIMPLUS is available as a data source for import and export.
• For instructions on how to import data, refer to Importing data to the project step-by-step.
• For instructions on how to export data, refer to Exporting data step-by-step.
☞ Specifically for importing BIMPLUS data:
• BIMPLUS automatically creates a 'Name' column when data is uploaded to the server.
Make sure that you delete all entries from the name column in BIMPLUS before import is started Else files and models will not be visible for import in iCON.

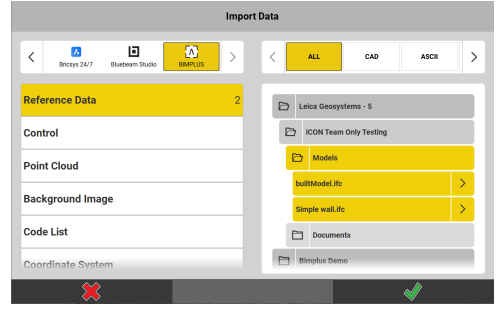

• In iCON select BIMPLUS as data source for import. The iCON software detects the teams and project folders on your BIMPLUS account.
• Open a team/project folder and select file(s) and/or model(s) from one or more sub-folders.
•Tap
to start download from BIMPLUS and import the selected files to iCON.
☞ Specifically for exporting BIMPLUS data:
• As Destination, select BIMPLUS.
• Select a folder on the BIMPLUS server where the data shall be exported to.
• Select a project from the list.
• Select the format.
• Tap
.
• Define a file name.
• Tap
.
