Autodesk Settings: Autodesk is an online file storage and sharing platform. It allows you to download or upload standard files, such as PDF, DXF, DWG or IFC.
☞ Autodesk licence needs to be active on the controller.
☞ With an active Autodesk licence data can also be imported/exported from Autodesk Construction Cloud.
☞ In order to connect to Autodesk, the account administrator must add the Leica iCON app from the Autodesk App Store to the Autodesk account. iCON recognises the permissions granted to a user within Autodesk for downloading or uploading files.
Refer to the Autodesk user guide for further information.
☞ For further details refer to the following website:
https://leica-geosystems.com/products/construction-tps-and-gnss/
software/software-partners/autodesk/bim360docs
1. Select Clouds from the Home screen.
When using iCON build the Clouds settings are
available from within the Status Bar 2, see also:
Status bar GNSS
Status bar TPS
2. Tap Autodesk > Settings.
Following screen is displayed:
3. To connect to the Autodesk service, tap Start. The Autodesk authorisation screen is opened in the default web browser.
4. Log in to Autodesk with your credentials. If necessary, create an account.
You can choose to save your credentials using cookies in the default
web browser on your device.

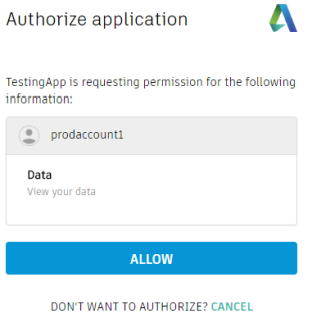

5. After login, following screen is displayed:
To establish a connection, tap Allow.
6. Once the connection has been established, the iCON software issues a message, that authentication has been successful.
Confirm the message with OK.
☞ Once authenticated, you can repeatedly access your documents online without having to start connection to the cloud service each time.
In the background, the iCON software receives an authentication token which is given to the Autodesk server to get a refresh token. The refresh token is saved in the Projects folder in iCON.
☞ The Start button changes to Logout. Tap the Logout button if you intend to disconnect from the cloud service.
7. While a connection to Autodesk is established, Autodesk is available as a data source for import and export.
• For instructions on how to import data, refer to Importing data to the project step-by-step.
• For instructions on how to export data, refer to Exporting data step-by-step.
☞ Specifically for importing Autodesk data:
• As data source for import, select Autodesk. The iCON software detects the companies on your account.
• Select a company and a project at the same time from the list. The folders within the selected project become available.
• Select the file to import.
☞ Specifically for exporting Autodesk data:
• For Export Destination, select Autodesk.
• Select a folder on the Autodesk server where the data is exported to.
• Select a project from the list.
• Select the format.
• Tap
.
• Define a file name.
• Tap
.
