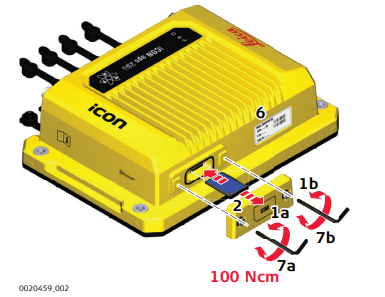

Insert and remove the SIM card step-by-step
☞ Ensure the instrument is placed in its fixed position or place it onto a stable surface.
1. Loosen the screws of the SIM card cover with the supplied hex key.
2. Remove the SIM card cover and press the clip next to the SIM card tray to eject it.
Pull out the SIM card tray.
3. Orientate the SIM card as illustrated and place it onto the SIM card tray.
4. Insert the SIM card tray into the card slot and push it in until it locks into place.
5. Place the SIM card cover back into position.
6. Tighten the screws of the SIM card cover, with maximum 100 Ncm.
