Description: The Leica iCON aps 200 instrument and the Leica CGA100 GNSS antenna together with dedicated accessories offers you highest productivity and flexibility.

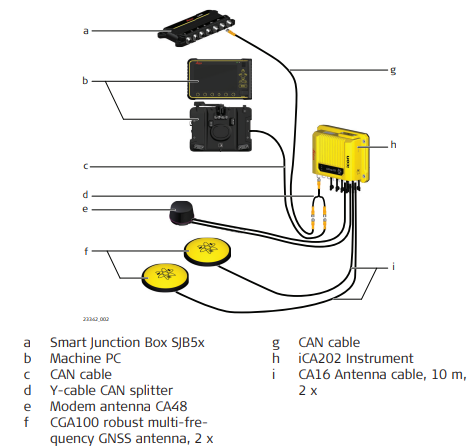

An example configuration is shown below.

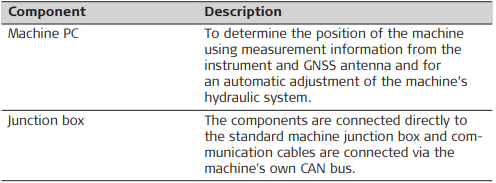

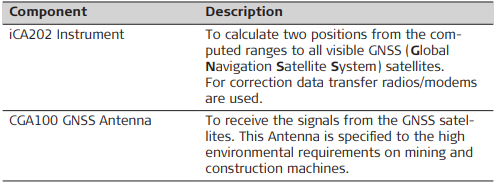

Main components, iCA202 configuration with internal cell modem
Satellite channels: Depending on the satellite systems and signals configured, a maximum number of 555 channels is allocated.
Special features iCA202
iCA202 instruments are equipped with several special features:
• Wide supply voltage range of 9 V to 32 V
• Voltage peak protection and reverse polarity protection
• Can be mounted on a machine in both the vertical and horizontal orientations
• Can be used near the sea
• Protection caps on connectors
• LEDs for status information
• Versatile connectivity including CAN, Serial RS232, Ethernet, Bluetooth and
WiFi
• USB host port for data transfer and firmware upgrade
• Integrated high speed LTE (4G) / WCDMA (3G)
• Integrated radio
• Support of external devices via serial port
• Robust, compact aluminium housing
Special features CGA100
CGA100 antennas are equipped with several special features:
• Can be used near the sea
• Standard robust 5/8" Whitworth thread
• Robust TNC connector
• Future proof four constellation, multi-frequency antenna element
• Robust, compact plastic housing
