How to Work On Site with the DS4000: The DS4000 is a Leica Geosystems system that can be deployed on site including several positioning systems (Quick Scan, Grid, GNSS, TPS modes). Its structure is designed with the aim to cover the largest possible applications and field conditions.

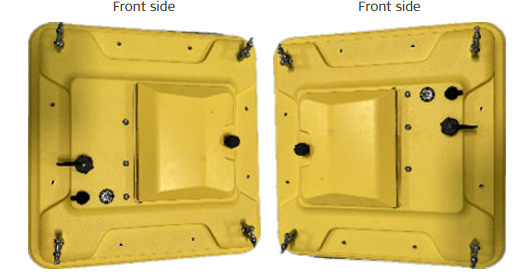

HH Polarisation acquisition mode: Front of the antenna (with respect to direction of acquisition) with the battery compartment opposite to the operator (or towards the operator).

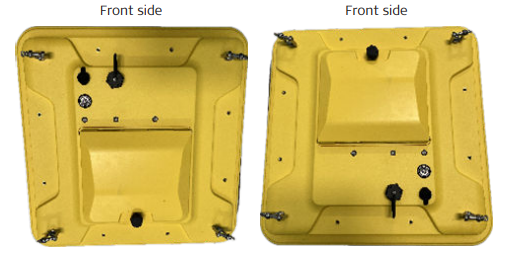

VV Polarisation acquisition mode:
Front of the antenna (with respect to direction of acquisition) with the battery compartment right to the operator (or left to the operator).

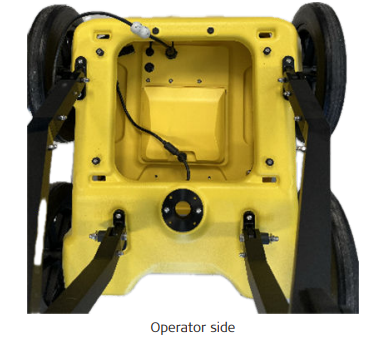

☞ DS4000 top view.
