Scanning: Field of View (FoV) 5.4.1

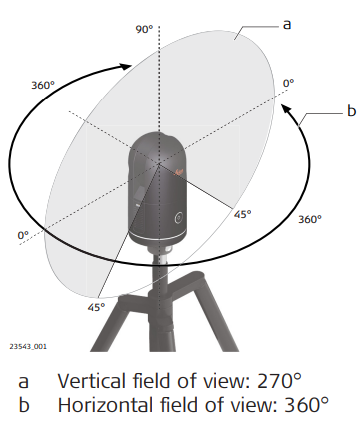

Scanning laser - field of view


If required, this gap can fast and easily be closed
• By another scan nearby that covers that area.
• Or capturing a second scan from the same position but rotating the BLK360 by 180°.

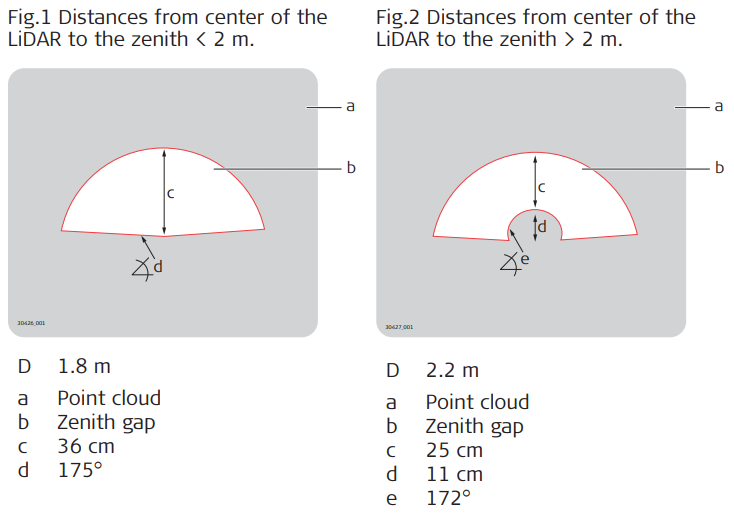

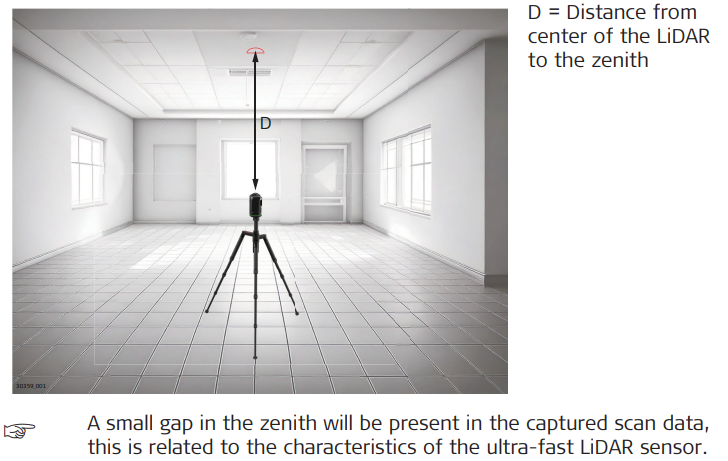

The zenith gap can have two different shapes, and the dimensions can vary depending on the distance from the center of the LiDAR sensor to the zenith.
