LED indicators
Description
The iCON gps 70 instrument has Light Emitting Diode indicators. They indicate the basic instrument status.

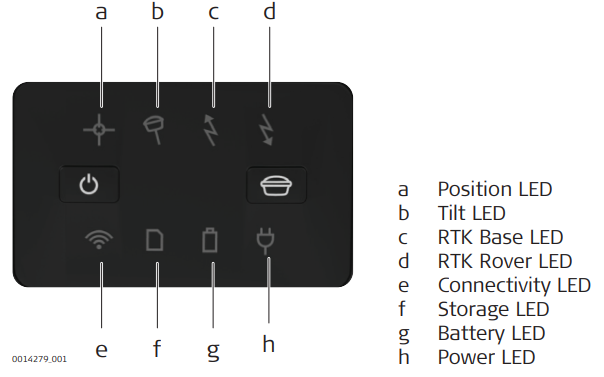

Diagram
➜ For the non tilt variant the tilt LED b) will always be turned off.

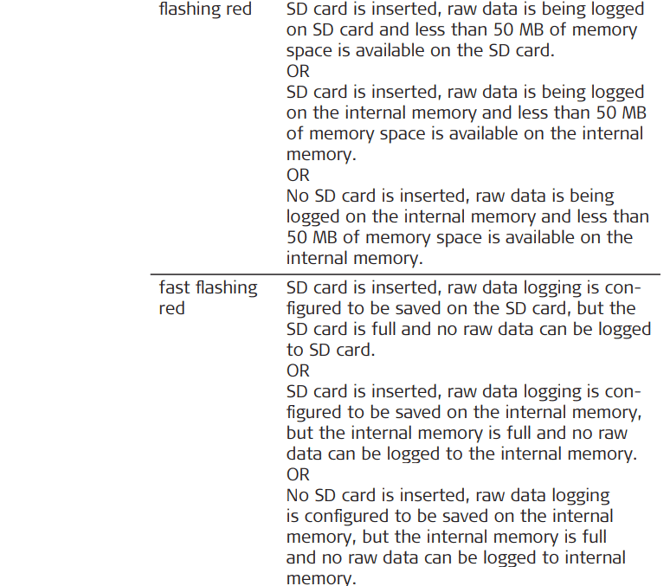

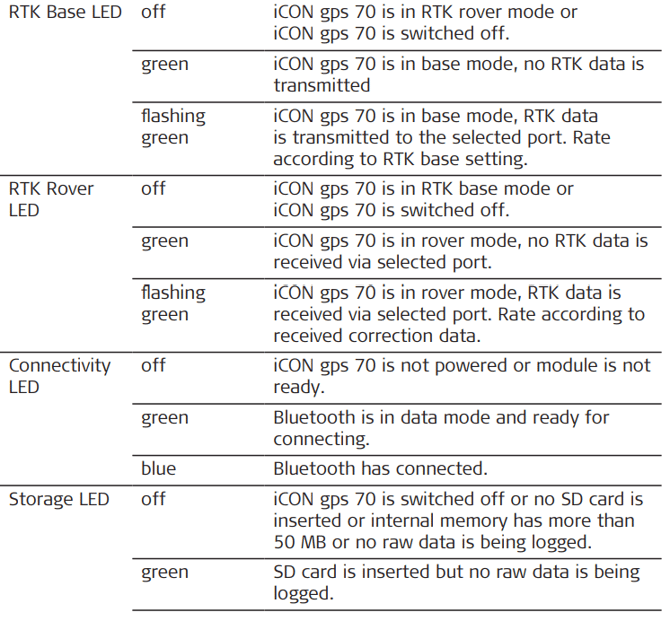

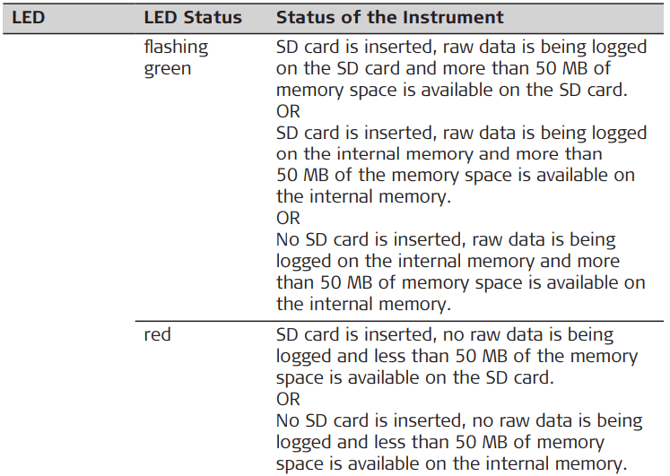

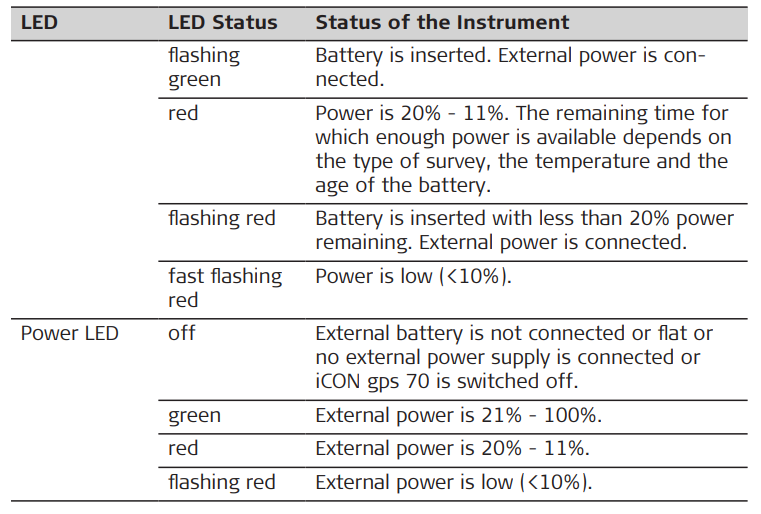

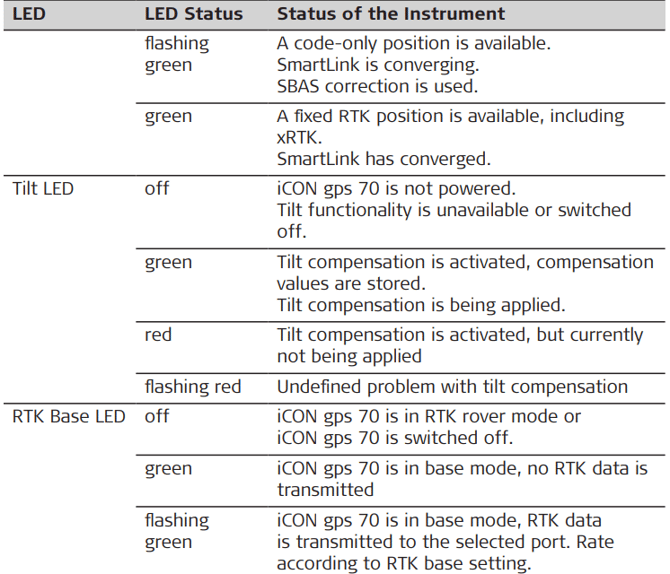

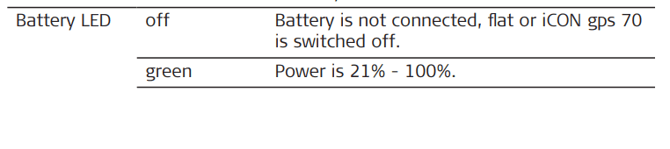

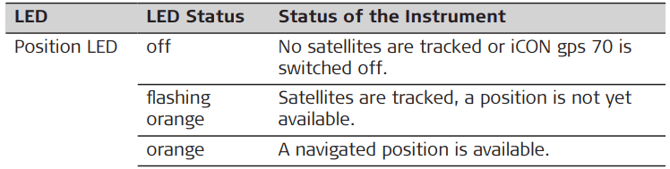

Description of the LEDs
