Layout with an Offset

Layout a point along a line, a polyline segment, a circle or an arc based on
the distance from the start point.

• Layout a point in a specific, perpendicular distance from the object.

1. Select an object.
2. Only for polyline:
   • Select a segment.
3. Tap Layout.

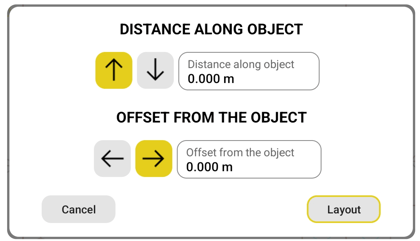

4. Tap Offset and specify distance along and from the object.
5. Confirm.

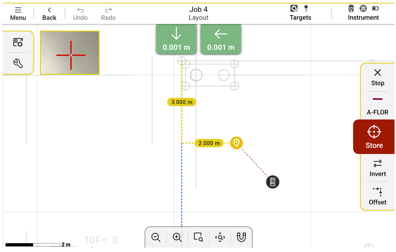

Example:

Additional Options:

Icon
	Invert Change the start point used for offset calculation.

☞ Setup is required.
