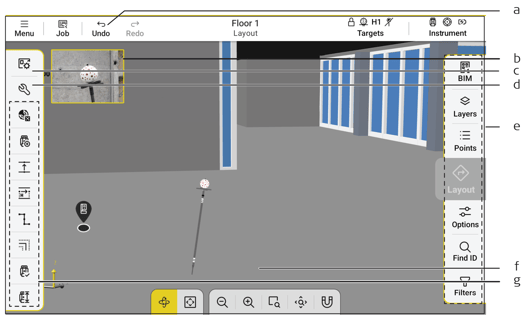

Layout Screen

• Transfer points and objects from the drawing into the reality using laser or trackable targets.
• Layout points and objects from CSV, PDF, DXF, DWG and IFC files.

a) Undo and Redo last action

b) Live View

c) View Settings

d) Tools

e) Action Bar

• Contains all important actions for the current mode or tool.
• Dynamically changes depending on the current situation.

f) Drawing View

g) Favorites

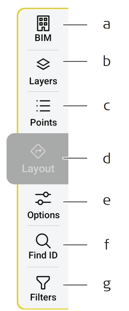

Action Bar

a) BIM

b) Layers

c) Points

d) Layout

• Available when a point or object for layout is selected.

e) Layout Options

f) Find Point

g) Filters

☞ A switch between Measure and Layout mode is available in the Tools
menu.
