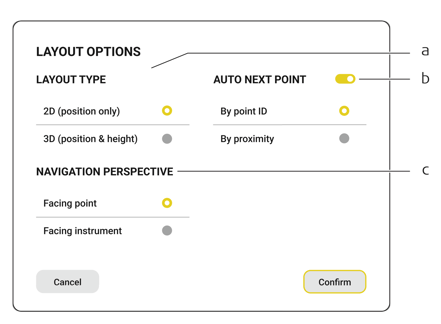

Layout Options

Customize the layout navigation process.

a) Layout Type

• 2D (position only)
  Only X and Y coordinates are checked during the navigation. A successful layout status can be achieved even if the height difference exceeds the defined tolerance.
  • 3D (position & height)
  X, Y and Z coordinates are checked during the navigation. For a successful layout, all differences must be within the tolerances.

b) AUTO NEXT POINT

• Switch automatic layout start to the next point on or off when Store
  button is pressed.
• The next point is selected based on the ID or distance from the current
  position.

c) NAVIGATION PERSPECTIVE

• Select the orientation point for the layout navigation.
• Refer to Layout Facing the Instrument and Layout Facing the Point.

How To Access:

1. Open the Layout mode.
2. Tap on .

☞ NAVIGATION PERSPECTIVE is unavailable for laser layout.

☞ Navigation facing the point is available only for iCS50 and vPole.
