Lay out Points using Two Tapes 8.3.3

↪  Layout Points license needs to be active. See also: General Information

↪  Process does not require the use of Total Station or GNSS. Only two measuring tapes are required.

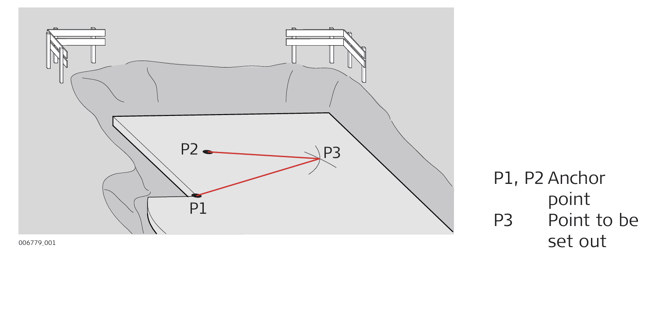

 General description Given:

• Points already established in the field.
• Points are active within the current job. Refer to Importing data to the project step-by-step.

 Layout using two tapes step-by-step

1. Open the Layout Points app.

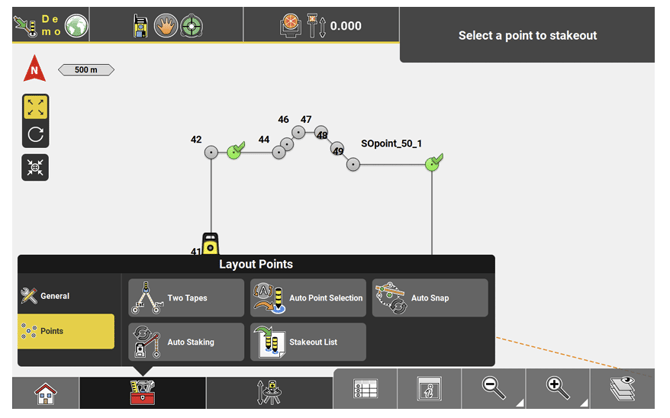

2. Select Two Tapes from the Toolbox.

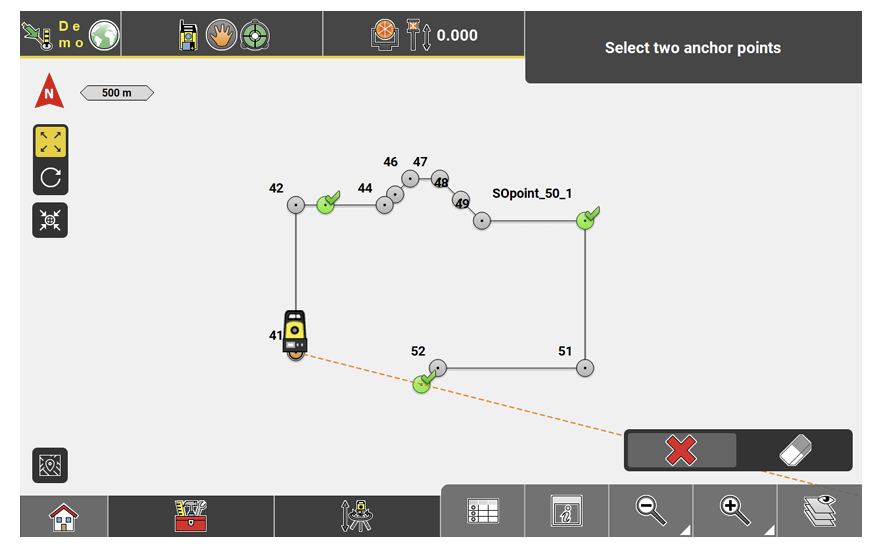

3.  Tap two anchor points.

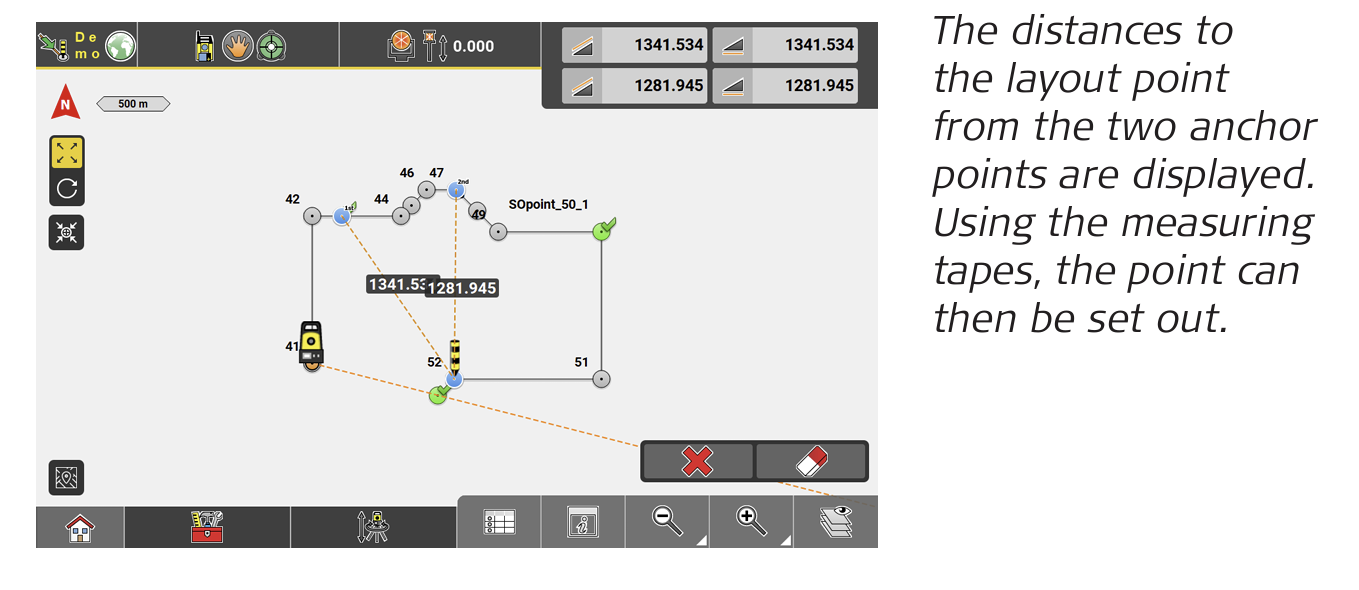

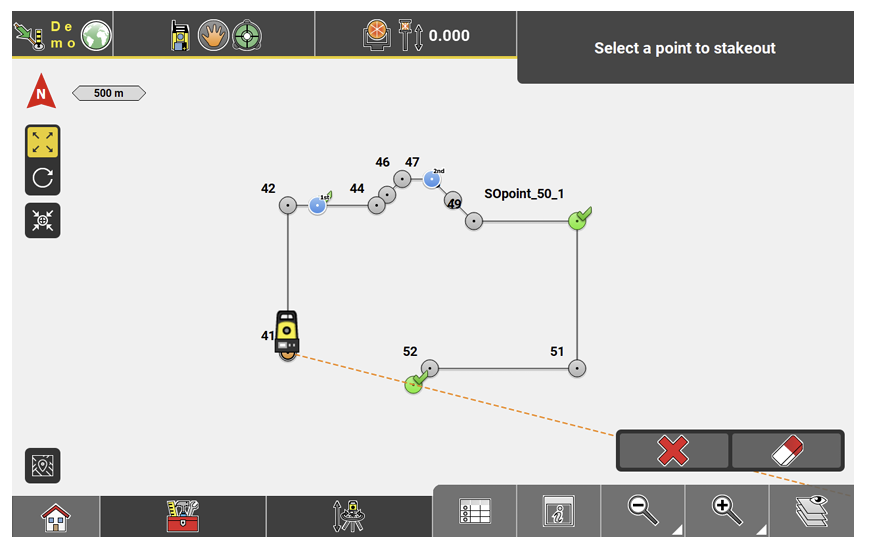

4. Then tap the point to be laid out.
