Concept
• Telescope for dual face measurement
• User adjustment for laser beam
Laser
Type: Visible, red, laser class 3R
Carrier wave: 657 nm
Optics
Line of sight offset: 52.20 mm
Focussing distance: 22.76 mm
Beam angle: 0.09 mrad
Power
Power supply: From instrument
Power consumption: ca. 0.2 W
Environmental specifications
Range
Daylight: 250 m
Darkness: 500 m

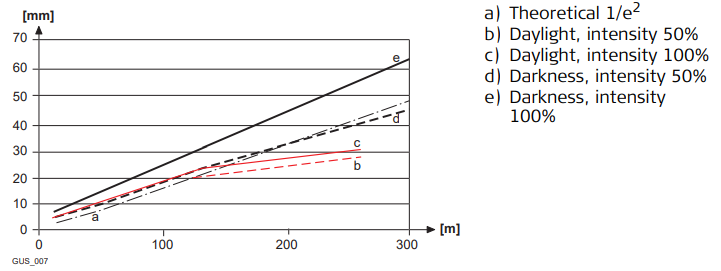

Beam diameter
The laser beam diameter is influenced by the intensity of the laser guide, by the application distance, by the characteristics of the surface and by the ambient light. Typical laser beam diameter on white, smooth surfaces with intensity 50% and 100%
