Workflow 01: Identify your machine control solution

Workflow 01: Identify your machine control solution

Find out if you have a 2D or 3D machine control solution installed on your machine. Once you know which solution you have to  work with, you can skip ahead to the relevant chapter in this manual.

Step 1: Identify which machine control components you have installed on your machine.
Step 2: Identify the source of your position reference (Rotating laser, total station or GNSS).
Step 3: Compare your hardware configuration with the overview on the following two pages:

• Do you have a 2D or 3D solution?

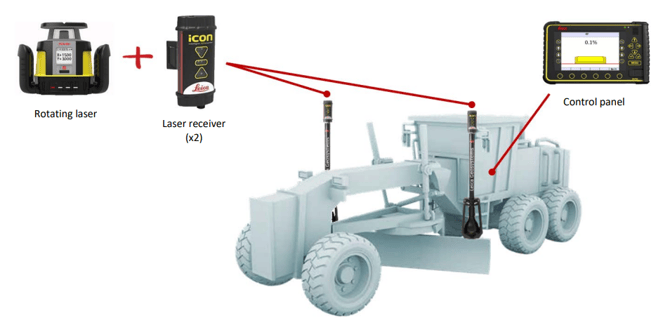

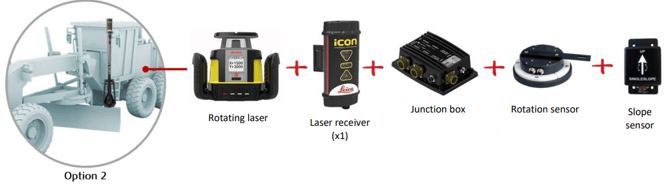

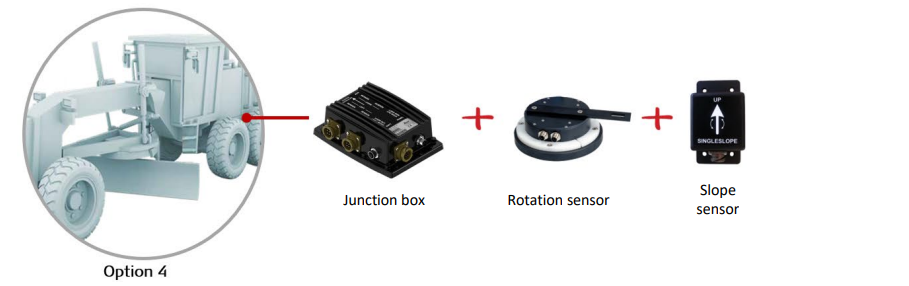

2D solution (Illustration)

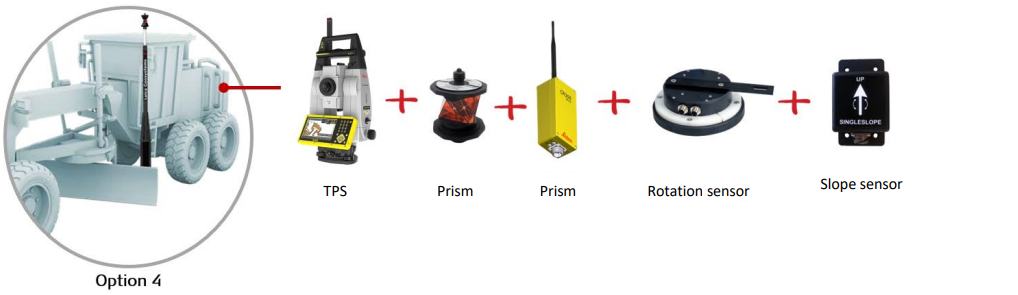

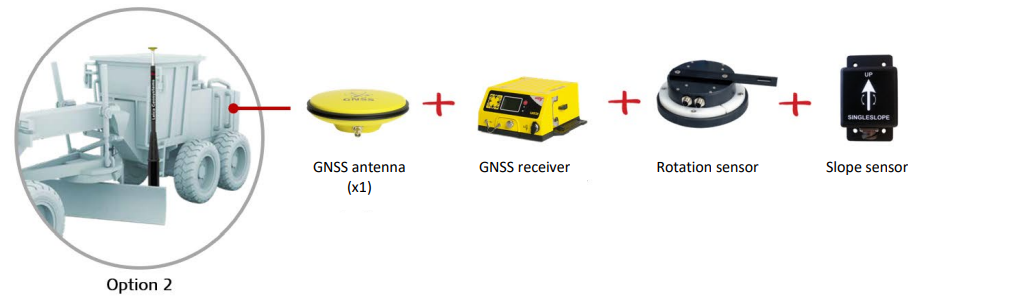

3D solution (Illustration)
