Information Bar Values  8.3.10

 Description

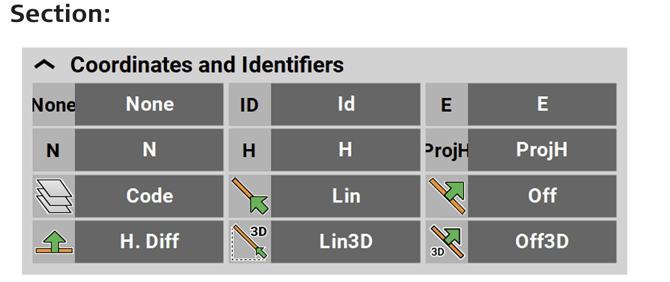

 Type/Icon Description

Id

 Point ID of the current point to record.

E

East value at the current target position.

N

North value at the current target position.

H

Height at the current target position.

ProjH

A value set during project creation to define a height shift for measured points in the project.

Code

 Code/layer for the next point to record.

Lin

Horizontal line value (2D) from the measured point along the selected line.

Off

Offset value at measured point to the selected line (2D).

 H. Diff

Height difference, from the measurement position to the start of the control line. Or with a reference line selected, from the measurement position to the start of the reference line.

Lin3D

3D line value from the measured point along the selected line.

Off3D

3D offset value at measured point to the selected line.

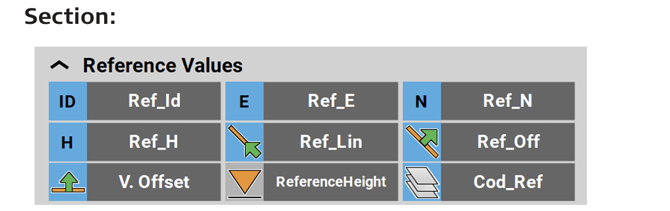

 Type/Icon Description

Ref_Id

Reference ID of the stakeout/layout element.

Ref_E

East value of the stakeout/layout point.

Ref_N

North value of the stakeout/layout point.

Ref_H

 Height of the stakeout/layout point.

Ref_Lin

Line value of the stakeout/layout point, along the selected reference line.

 Ref_Off

Offset value of the stakeout/layout point, to the selected reference line.

VOff

Vertical offset value of the defined reference
surface.

 Reference Height

 Reference height for staking out, that is defined by entering a value or selecting a point or surface.

 Cod_Ref

Code of the reference point.

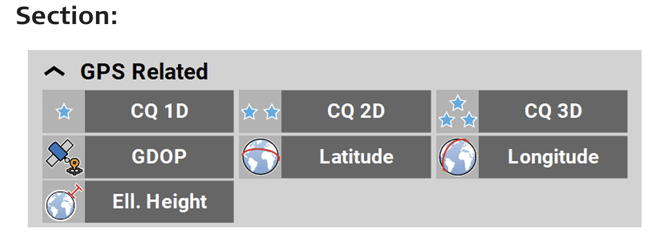

 Type/Icon Description

 CQ 1D

Coordinate quality value for the height information at the current position.

 CQ 2D

Coordinate quality values for the plain information at the current position.

CQ 3D

Coordinate quality values for a combination of the height and the plain information at the current position.

GDOP

Geometric dilution of precision quality value at the current position.

Latitude

Global coordinate to define the north-south position of a point.

Longitude

Global coordinate to define the east-west position of a point.

 Ell. Height

Global coordinate to define the ellipsoidal height of a point.

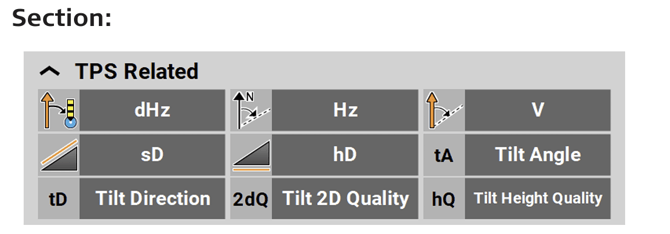

 Type/Icon Description

dHz

TPS only: Horizontal angle between the current line of sight and the stakeout/layout point.

Hz

Horizontal angle to the current target position.

V

Vertical/zenith angle to the current target position.

sD

Slope distance to the last point measured.

hD

Horizontal distance to the last point measured.

 Tilt Angle

When using AutoPole: Tilt angle of pole.

 Tilt Direction

When using AutoPole: Direction in which the pole is tilted, with regard to the compass.

 Tilt 2D Quality

When using AutoPole: Quality of position measurement.

Tilt Height Quality

When using AutoPole: Quality of height measurement.

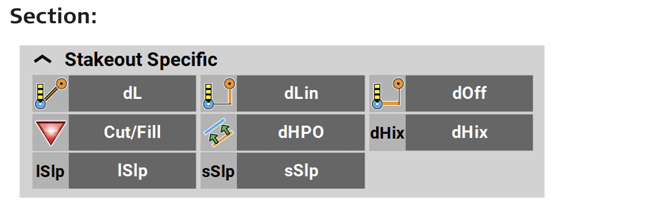

 Type/Icon Description

dL

Horizontal distance from the last point measured to the stakeout/layout point.

dLin

Perpendicular distance from the last point measured to the north heading at the stakeout/layout point.

dOff

Perpendicular distance from the last point measured to the east heading at the stakeout/layout point.

Cut/Fill

Cut/Fill value of the last point measured, compared to the stakeout element.

dHPO

Perpendicular height difference from the measured position to the stakeout/layout line.

dHix

Horizontal distance to the design stakeout/lay
out line.

lSlp

Only available in Stakeout app. Indicates the long slope at the measured point. Negative means down sloping in the line direction.

sSlp

Only available in Stakeout app. Indicates the side slope (cross slope) at the measured point to the selected line. A negative value means downward sloping from the measured point to the selected line.

 Type/Icon Description

Proj.Lin

Only available in Stakeoutt and Layout Points app. Line value at measured point along the selected reference line.

Proj.Off

Only available in Stakeout and Layout Points app. Offset value at measured point to the selected reference line.

 Proj. H. Diff

Only available in Stakeout and Layout Points app. Height difference at measured point to the selected reference line.

 Int. Chainage

Chainage at the measured point along the selected reference line, without station equation.

Chainage

Chainage at the measured point along the selected reference line, including the station equation.
 With no reference line, the value shows the
 chainage at the measured point along the selected line.

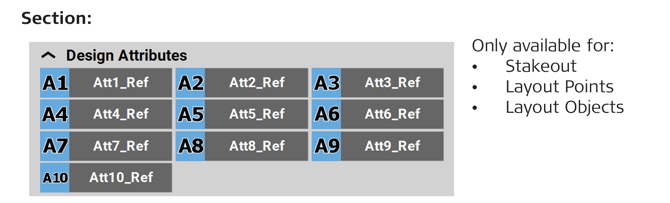

 Type/Icon Description

Att1_Ref ... Att10_Ref

Design attribute 1 to 10 of the reference point.
Up to 10 attributes can be defined.

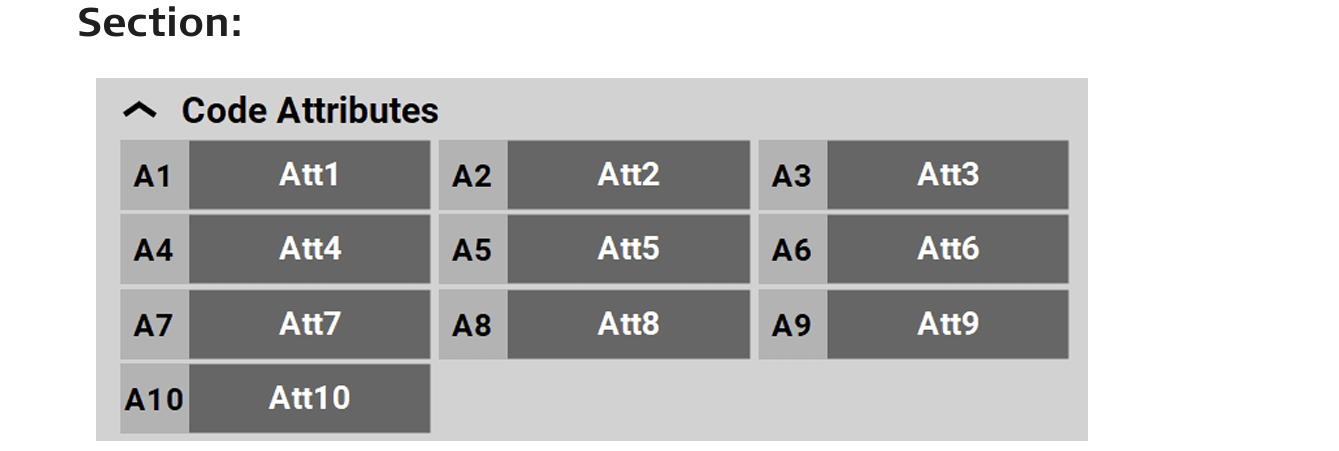

 Type/Icon Description

 Att1 ... Att10

Code attributes 1 to 10 of measured point.
Up to 25 attributes can be defined, up to 10 attributes can be displayed in the Information bar.
