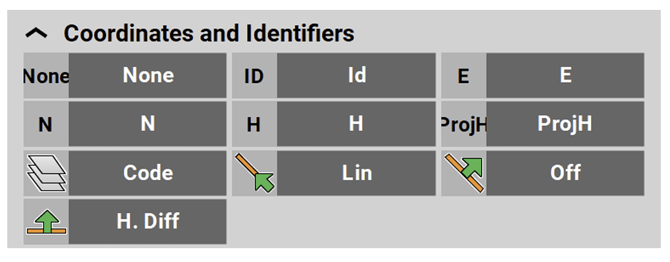

Description
Section:
| Type/Icon | Description |
|
ID
|
Point ID of the current point to record. |
|
E
|
East value at the current target position. |
|
N
|
North value at the current target position. |
|
ProjH
|
A value set during project creation to define a height shift for measured points in the project. |
|
Code
|
Code/layer for the next point to record. |
|
Lin
|
Horizontal line value (2D) from the measured point along the selected line. |
|
Off
|
Offset value at measured point to the selected line. |
|
H. Diff
|
Height difference, from the measurement position to the start of the control line. Or with a reference line selected, from the measurement position to the start of the reference line. |

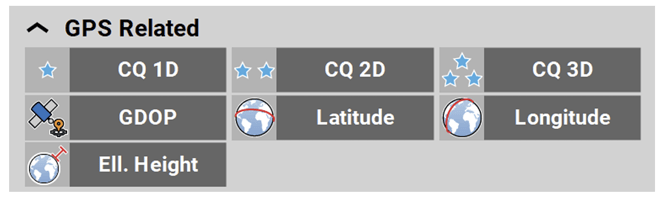

Section:
| Type/Icon | Description |
|
CQ 1D
|
Coordinate quality value for the height information at the current position. |
|
CQ 2D
|
Coordinate quality values for the plain information at the current position. |
|
CQ 3D
|
Coordinate quality values for a combination of the height and the plain information at the current position. |
|
GDOP
|
Geometric dilution of precision quality value at the current position. |
|
Latitude
|
Global coordinate to define the north-south position of a point. |
| Type/Icon | Description |
|
Longitude
|
Global coordinate to define the east-west position of a point. |
|
Ell. Height
|
Global coordinate to define the ellipsoidal height of a point. |
Section:

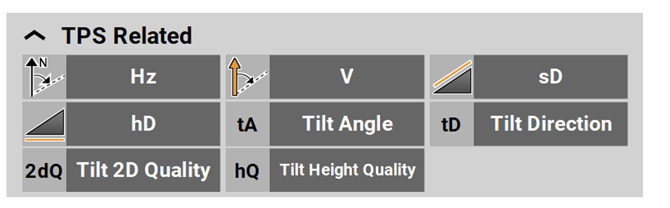

| Type/Icon | Description |
|
Hz
|
Horizontal angle to the current target position. |
|
V
|
Vertical/zenith angle to the current target position. |
|
sD
|
Slope distance to the last point measured. |
|
hD
|
Horizontal distance to the last point measured. |
|
Tilt Angle
|
When using AutoPole: Tilt angle of pole. |
|
Tilt Direction
|
When using AutoPole: Direction in which the pole is tilted, with regard to the compass. |
|
Tilt 2D Quality
|
When using AutoPole: Quality of position measurement. |
|
Tilt Height Quality
|
When using AutoPole: Quality of height measurement. |

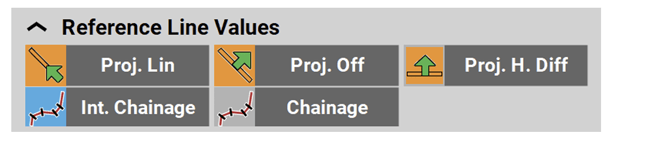

Section:
| Type/Icon | Description |
|
Proj.Lin
|
Line value at measured point along the selected reference line. |
|
Proj.Off
|
Offset value at measured point to the selected reference line. |
|
Proj. H. Diff
|
Height difference at measured point to the selected reference line. |
|
Int. Chainage
|
Chainage at the measured point along the selected reference line, without station equation. |
|
Chainage
|
Chainage at the measured point along the selected reference line, including the station equation. |

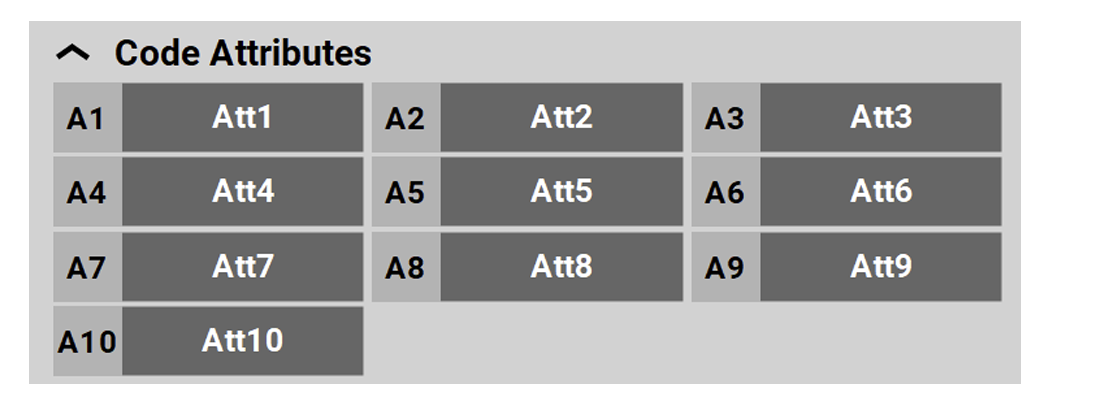

Section:
| Type/Icon | Description |
|
Att1 ... Att10
|
Code attributes 1 to 10 of measured point. Up to 25 attributes can be defined, up to 10 attributes can be displayed in the Information bar. |
