iCON site / iCON site Plus

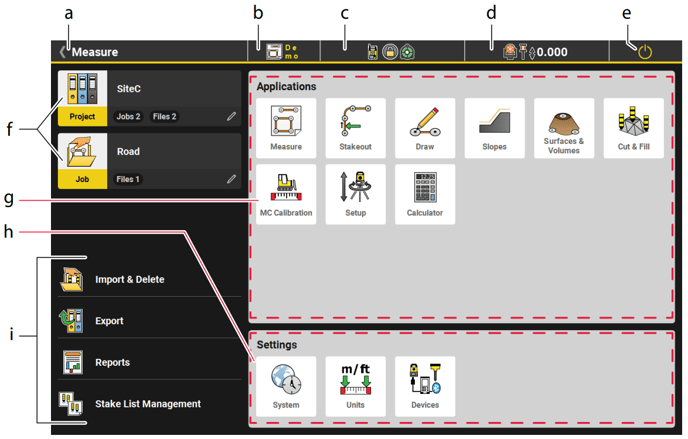

Upon launching the software, the Home screen is by default the first screen
to be displayed.
| a | Back key Allows for direct access to the last used application. |
| b | Icon of last-used application Indicates the last-used application. |
| c | Status bar 1 In Home screen minimised and read-only. |
| d | Status bar 2 In Home screen minimised and read-only. For detailed information on Status bar 1 & 2 functionality refer to: Status bar TPS Status bar GNSS Status bar for internal GNSS |
| e | Power button Exits the software or shuts the controller and sensor down. |
| f | Project and Jobs management Contains options to manage projects and jobs. |
| g | Applications container Displays the different applications available for use. See also: General Information on Applications |
| h | Settings container Comprises options for editing System and Units settings, managing connected Devices and licensed Clouds services. Licenses can be added here. See also: Settings |
| i | Data management Contains options to import, export or delete data, to manage stakeout lists and to create reports. |
iCON build / iCON build Plus
Upon launching the software, the Map View of the last used application is by default the first screen to be displayed.

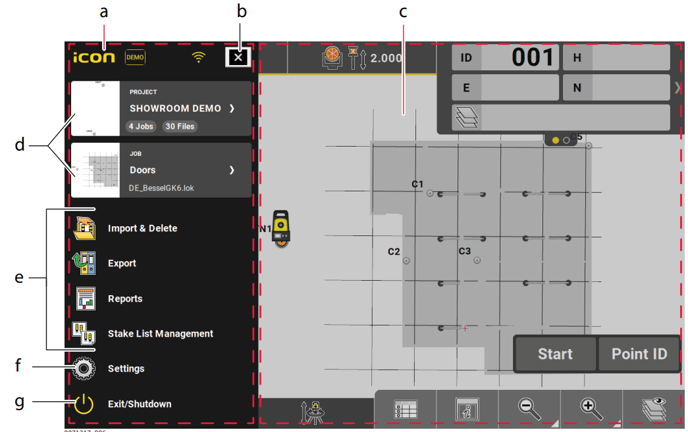

From within the Map View the Admin Panel can be accessed. Tap the
button in the upper left corner of the screen.
The Admin Panel opens as a flyout on top of the Map View.
The Map View stays visible but becomes inactive while the Admin Panel is open.
| a | Admin Panel Opens on top of Map View, Map View becomes inactive. Comprises Project and Jobs management, Data management, Settings and Exit/Shutdown. |
| b | Close Admin Panel key Closes the Admin Panel and re-activates the Map View. |
| c | Map View Inactive when Admin Panel is open. For detailed information on the Map View refer to: Default Map View ☞ Tapping anywhere in the inactive Map View closes the Admin Panel. |
| d | Project and Jobs management Contains options to manage projects and jobs. |
| e | Data management Contains options to import, export or delete data, to manage stakeout lists and to create reports. |
| f | Settings key Opens the Settings page. For further information on single settings refer to: Settings Settings for Devices are available from within Status Bar 1. See also: Status bar TPS/Status bar GNSS Settings for Clouds are available from within Status Bar 2. See also: Status bar TPS/Status bar GNSS |
| g | Exit/Shutdown key Exits the software or shuts the controller and sensor down. |
☞ For information on how to access single applications refer to: Default Map View
☞ Whether the User Interface shows the classic Home screen or the Admin Panel can be changed by toggling Settings > System > Display > Classic Home Screen On/Off.
See also: Display
When Off, iCON site and iCON site Plus + can be used with the Admin Panel, if preferred.
When On, iCON build and iCON build Plus + can be used with the classic Home screen, if preferred.
