General description
Draw/Sketching is an application that can be used without a connected instrument. Layout plans consisting of points, lines and arcs can be created, and these plans can then be used in another application to be directly staked out/laid out.

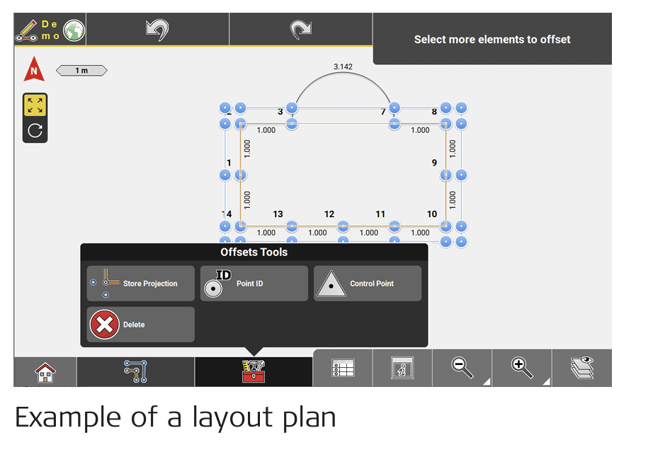

The following is a step-by-step guide to using some of the key functions in Draw/Sketching to create a layout plan.
➜ No instrument connection is required.

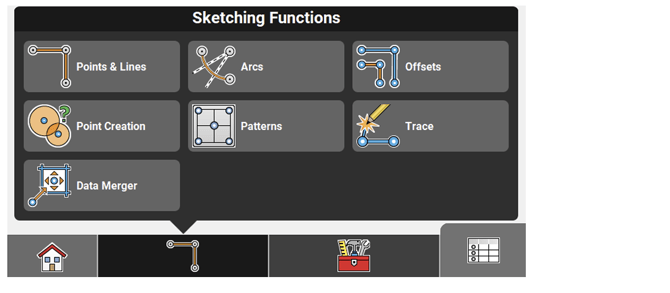

Sketching functions Overview
| Function | Description |
|
Points & Lines
|
Allows for drawing/sketching points and lines. Is selected by default when opening the Draw/Sketching app. |
|
Arcs
|
• Allows for drawing/sketching arcs. • Allows for sketching circles iCON build + iCON site Plus. |
|
Offsets
|
Allows for sketching offsets. |
|
Point Creation
|
Allows for point creation by calculation using different tools. See also: Point Creation Toolbox functions |
|
Patterns
|
iCON build + iCON site Plus Allows for applying anchor bolt layout patterns to points. |
|
Trace
|
iCON build + iCON site Plus Allows for quickly sketching rectangular figures. Lines are drawn/sketched automatically. Figures need to be closed and dimensioned to complete the workflow. |
|
Data Merger
|
Allows for merging separate data models into one. |
➜ For details on each function and how to use it see the following chapters.
