How to display the Coordinate Quality Value [GNSS]

Coordinate Quality (CQ) values are recorded together with every GNSS measurement. Like other measuring information, these CQ values can be arranged to be displayed in the Information bar.

Display Coordinate Quality Values Step-by-Step

  1.  Tap and hold for 2 seconds within the Information bar area.

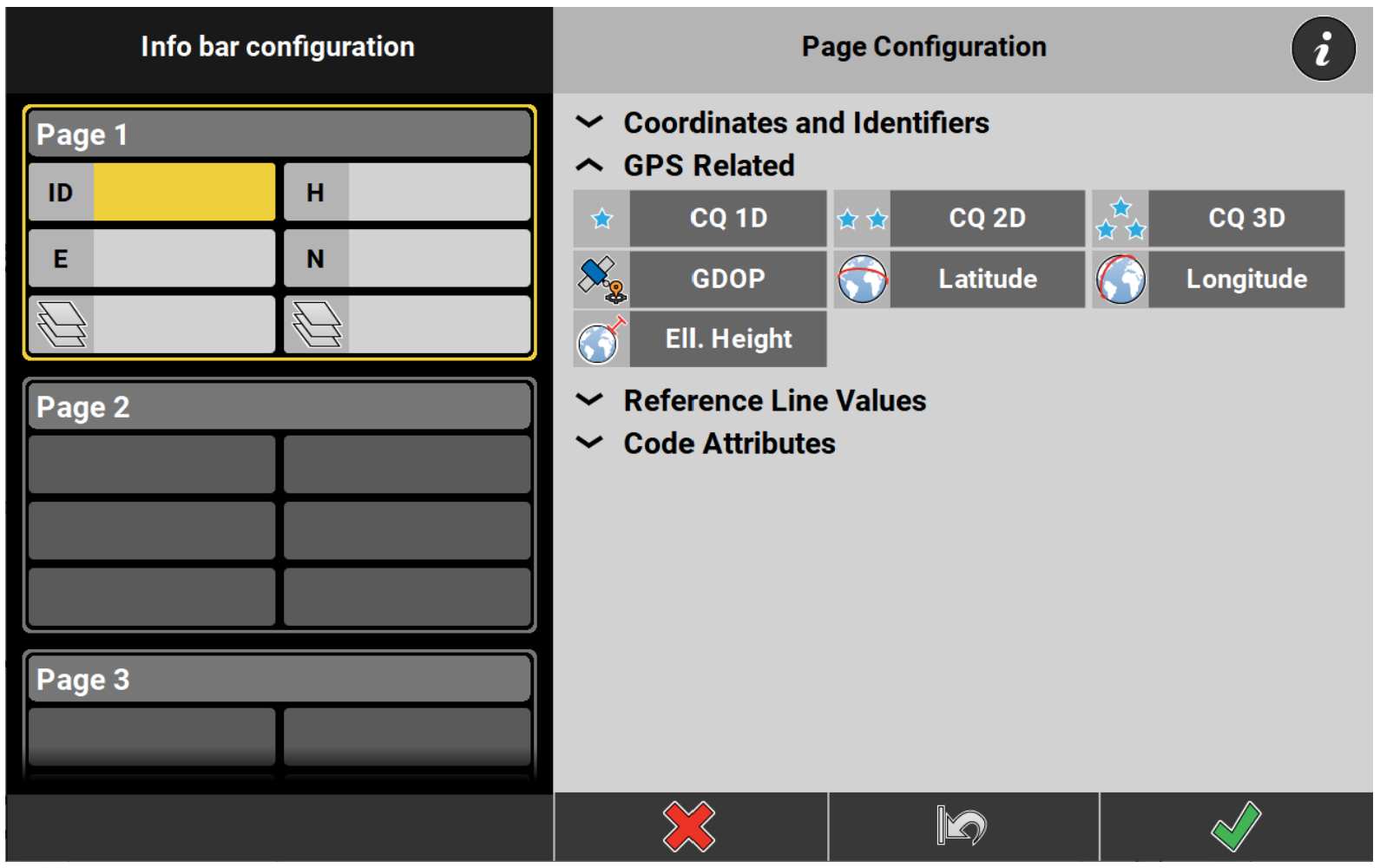

  2. Within the Info bar configuration screen, tap the page to which you want to add the CQ values.
  3. Select the CQ values to display: CQ 1D for the height information, CQ 2D for the plain information and CQ 3D for the combination of both. Tap when finished. Tap again in the Info bar configuration screen to confirm.

    In the Information bar, the CQ values are shown with one star for height, two stars for plain and three stars for the combination.
