Holder for CC80

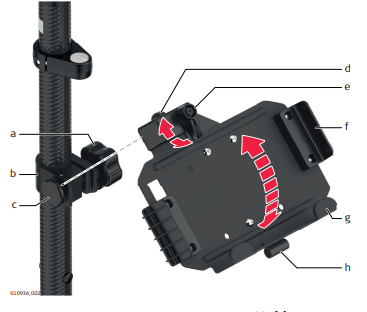

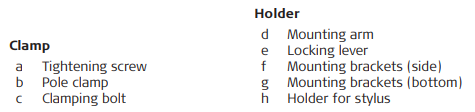

Fixing the CC80 tablet to a pole step‑by‑step: For an aluminium pole, fit the plastic sleeve to the pole clamp
- Insert the pole into the clamp hole.
- Attach the holder to the clamp using the clamp bolt.
- Adjust the angle and the height of the holder on the pole to a comfortable position.
- Tighten the clamp with the clamp bolt.
- Before placing the CC80 tablet onto the mounting plate, ensure that the locking lever
is set to the unlocked position (see illustration).
- Lower the bottom side of the tablet and slide it into the bottom mounting brackets
of the holder.
- After placing the tablet onto the mounting plate, set the locking lever to the locked
position (see illustration).

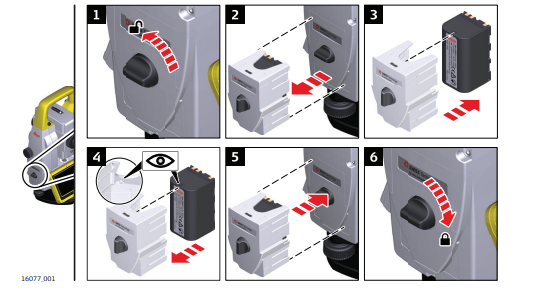

- Face the instrument so that the vertical drive screw is on the left. The battery compartment is below the vertical drive. Turn the knob to the vertical position, opening the lid of the battery compartment.
- Pull out the battery housing.
- Pull the battery out of the battery housing.
- At the top of the battery is a notch which corresponds to the inner surface of the battery housing. This notch helps you to place the battery correctly.
Place the battery into the battery housing, ensuring that the contacts are facing outward. Click the battery into position. - Place the battery housing into the battery compartment. Push the battery housing in until it fits completely into the battery compartment.
- Turn the knob to lock the battery compartment. Ensure that the knob is returned to its original horizontal position.
Detaching the tablet from the holder/pole step-by-step
- Set the locking lever of the holder to the unlocked position.
- Lift the top side of the tablet and slide the tablet to the top and out of the holder.
