Heavy Duty Tripod Setup 3.1.3

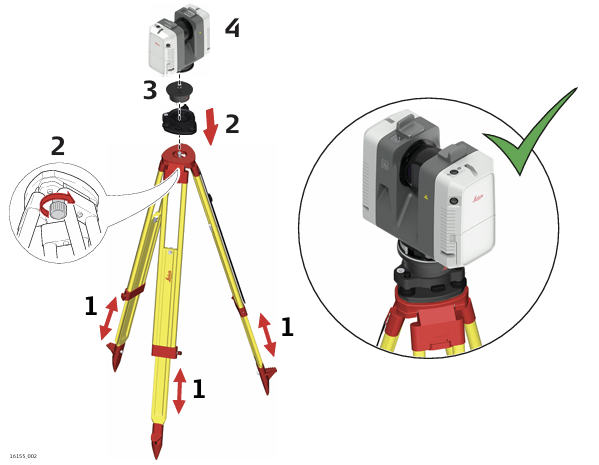

Instrument setup step-by-step

1. Extend the tripod legs to allow for a comfortable working posture. Ensure that the tripod plate is roughly horizontal.

   ---

2.  Place the tribrach on the tripod and secure it with the central fixing screw.

   ---

3.  Place the tribrach adapter on the tribrach and secure it with the locking knob of the tribrach.

   ---

4. Place the instrument on the quick release mount and secure it.

   ---
