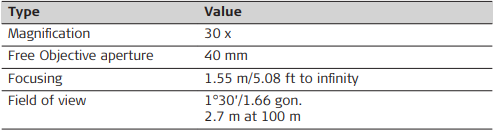

Telescope
Compensation
Level

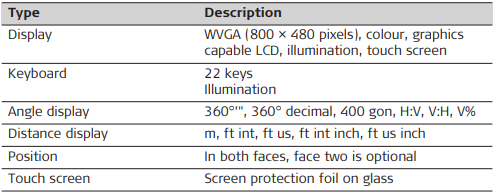

Control unit

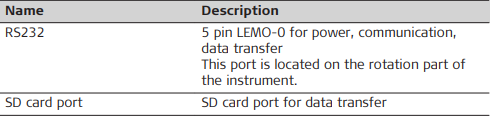

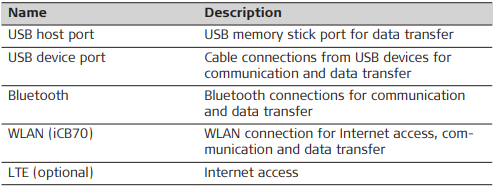

Instrument ports

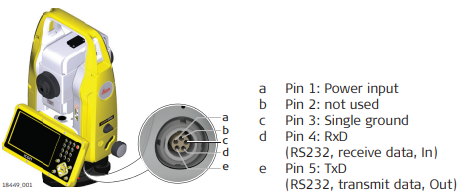

Pin assignments of the 5 Pin LEMO-0 port

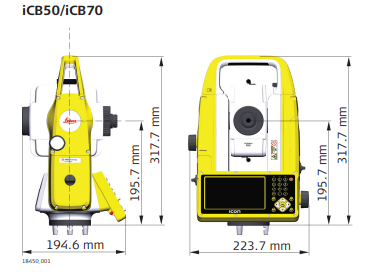

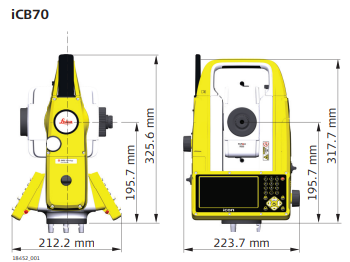

Instrument dimensions

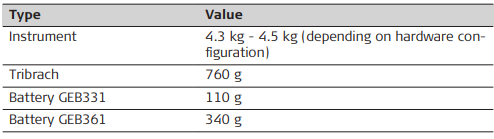

Weight
Tilting axis height

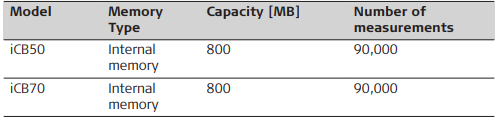

Recording

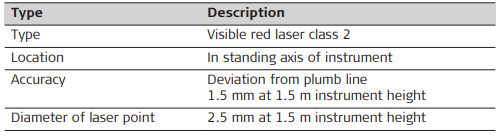

Laser plummet
Power

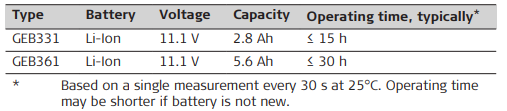

Internal battery

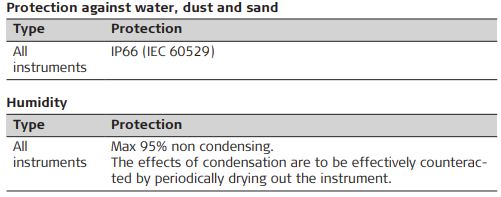

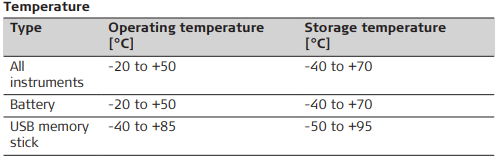

Environmental specifications
Automatic corrections
The following automatic corrections are made:
• Line of sight error
• Tilting axis error
• Earth curvature
• Standing axis tilt
• Vertical index error
• Refraction
• Compensator index error
• Circle eccentricity
