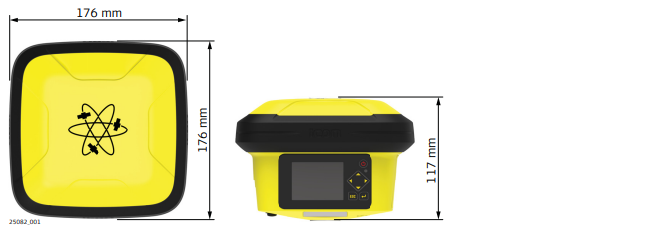

Dimensions: The overall dimensions are given for the housing including the sockets.
Weight: Instrument weight without battery:
☞ Modem and radio are integrated (according to the variant).
Recording
Power
Internal battery
Battery external

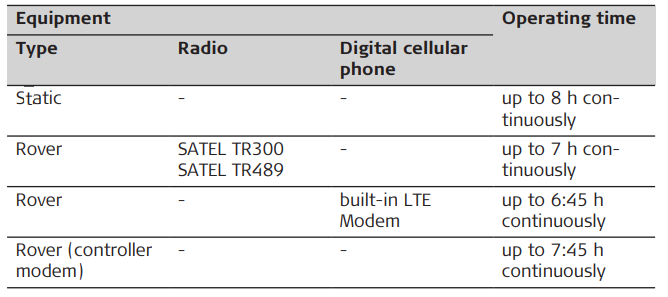

Operating times
The given operating times are valid for
• iCON gps 160 SmartAntenna: fully charged GEB334 battery.
• room temperature. Operating times will be shorter when working in cold weather.

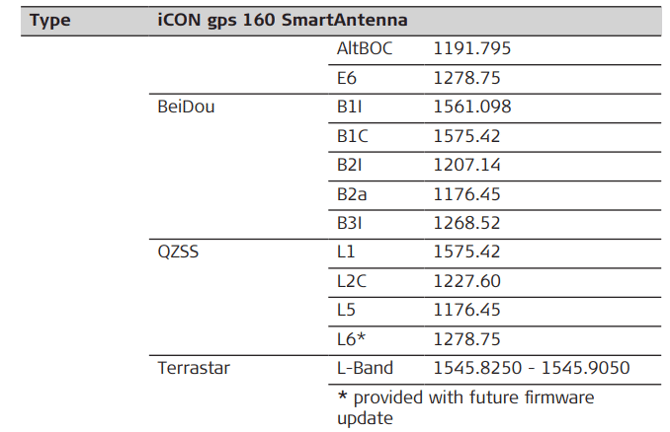

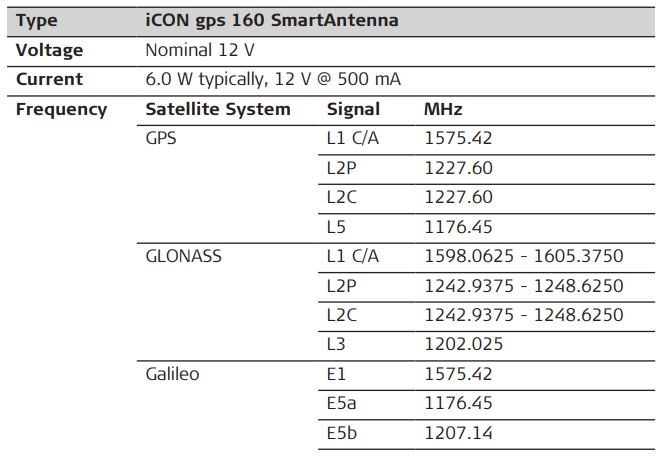

Electrical data
For corresponding information regarding optional, internal radios refer to their specifications.

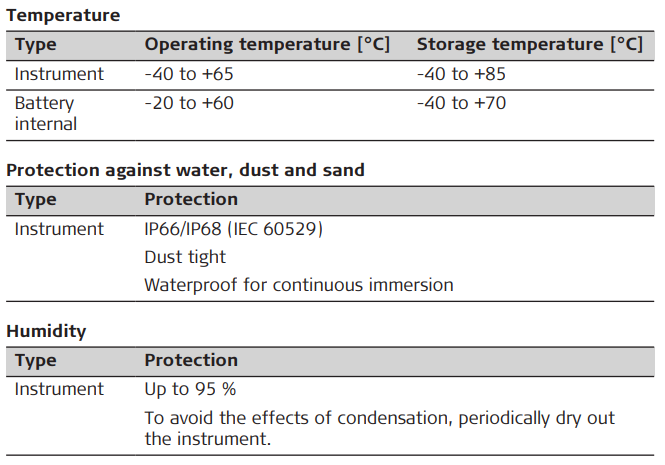

Environmental specifications

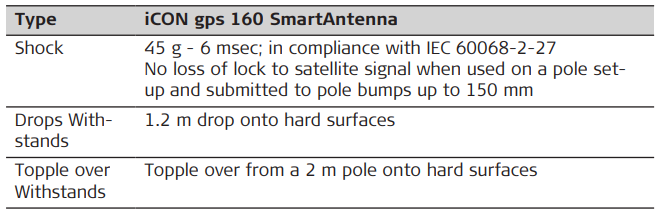

Vibration/Shock
