Export

Export data from the job in multiple formats.





  1. Click the Export button on the Job screen.
  2. Define the export location.



  3. Select one format or several formats to export.

☞ All files are exported to the folder iCONtrades_Projectname_Exports. The folder is created automatically at the selected location.



Images (JPEG)

  • Panorama images. Available only for iCS20 and iCS50.
  • Photos captured during measurements. Available only for instruments with camera.

Point List (CSV)

  • List of all points with coordinates with customizable columns order and separators.

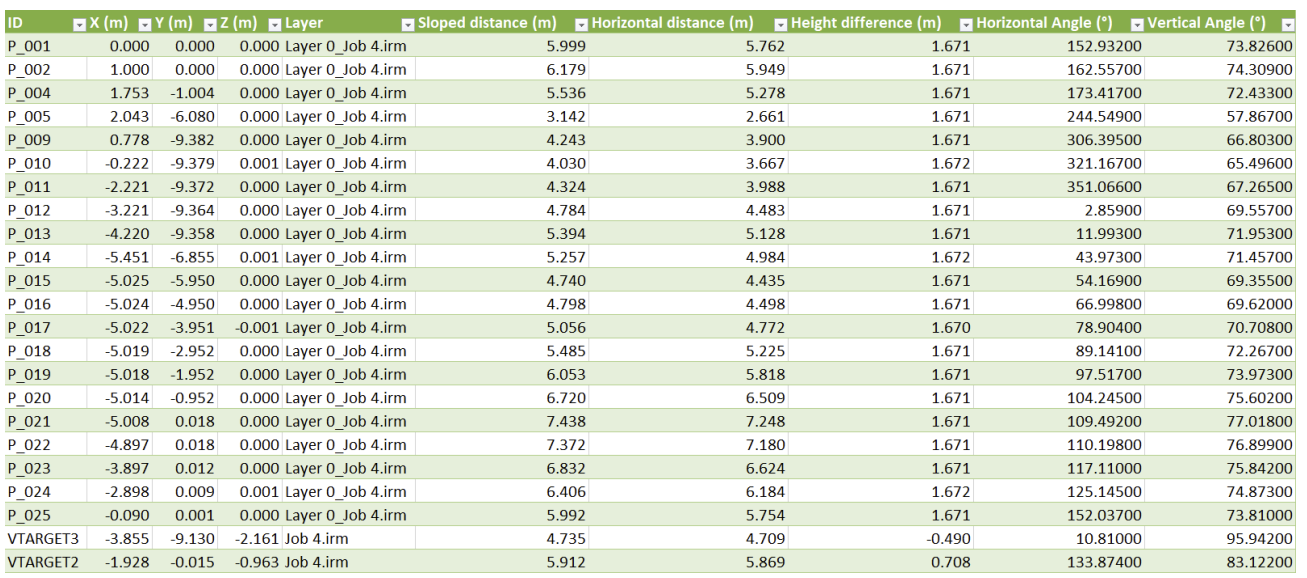

Example:

Point List Export Options:



3D DXF

  • All objects are exported with measured coordinates.
  • Points are exported on a separate layer.
  • Planes are presented together with unprojected measurements.

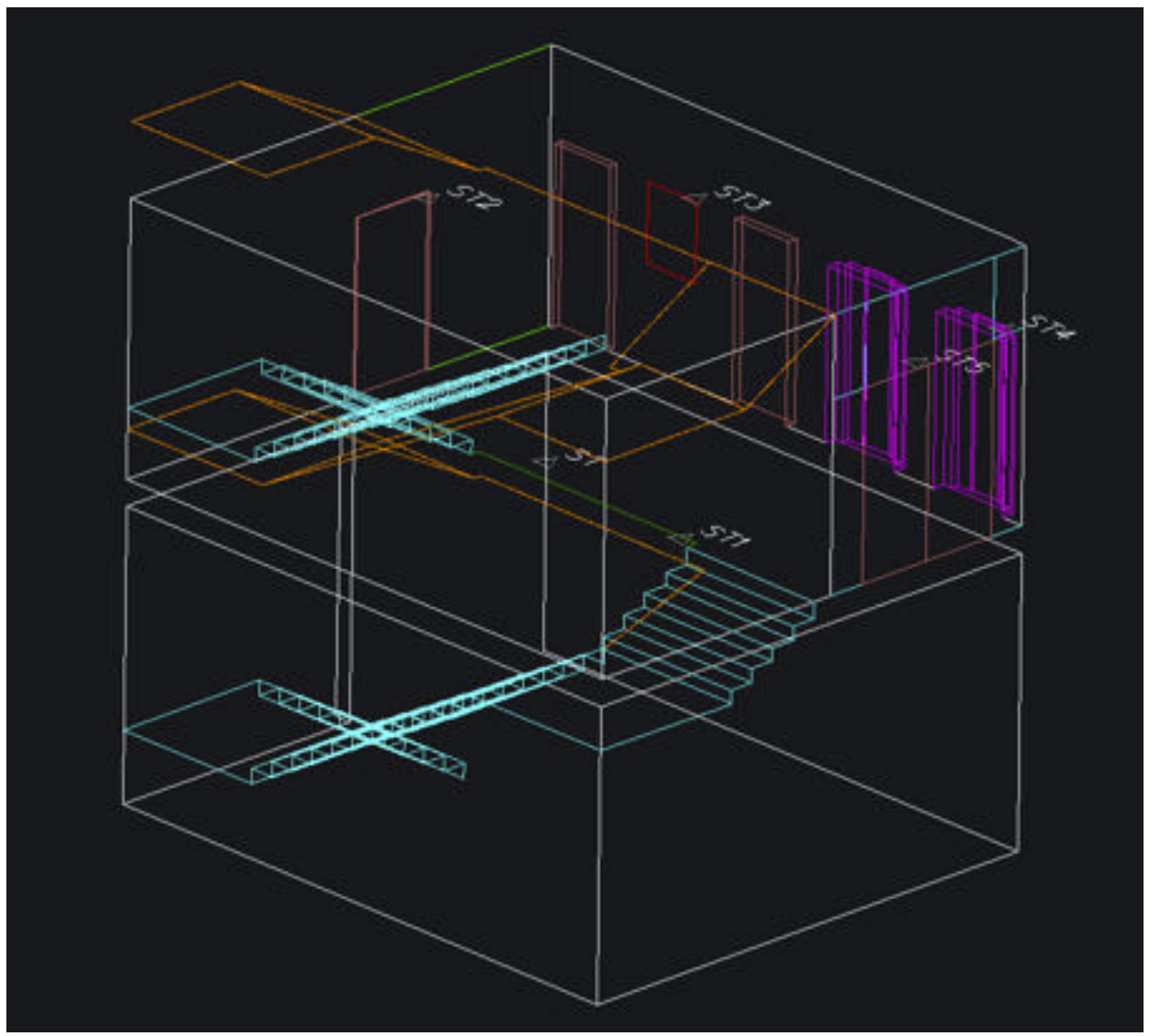

Example:

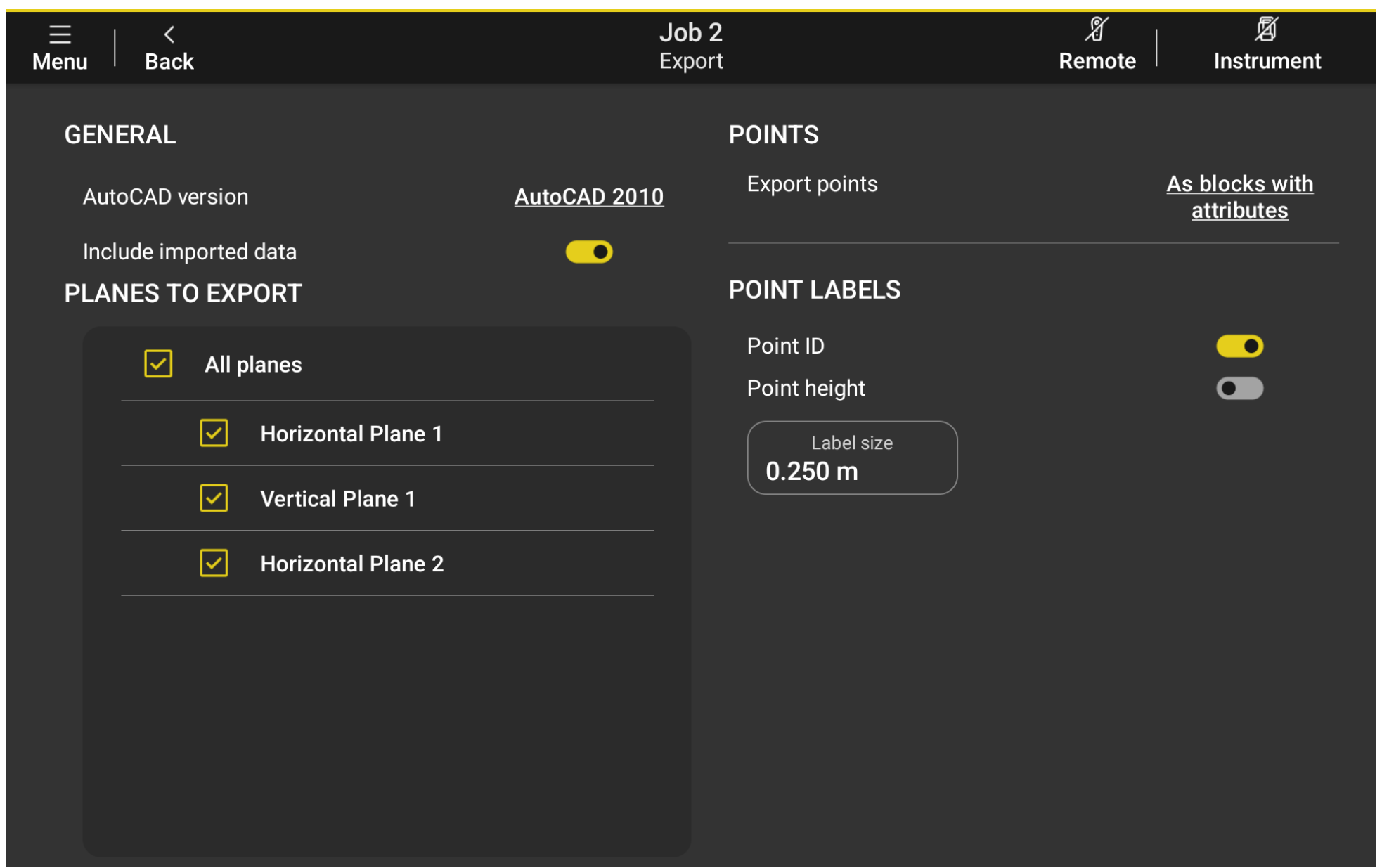

3D DXF Export Options:



2D DXF

  • All measurements are exported with 2D coordinates (Z=0). This is a top view.
  • Each plane is presented separately.
  • Points are exported on a separate layer.

Example:

2D DXF Export Options:



CNC DXF

  • All measurements are exported with 2D coordinates (Z=0).
  • All planes are shown in a combined drawing.
  • Points are not exported.
  • Annotations and dimensions are not exported.
  • Customizable selection of planes to export
  • It is possible to keep the original layer structure or move all objects to one layer.
  • It is possible to transform polylines, rectangles, circles, and arcs into lines.
  • Allow gaps to allow export open objects that are not connected to any other objects.

Example:

CNC DXF Export Options:

☞ A Templating licence is required for CNC DXF Export

ALPHACAM (IAZ)

  • All measurements are exported with 2D coordinates (Z=0).
  • Dedicated export to ALPHACAM software for seamless CNC machine programming.
  • Customizable selection of planes to export
  • Allow gaps to allow export open objects that are not connected to any other objects.

ALPHACAM (IAZ) Export Options:

☞ A Templating licence is required for ALPHACAM (IAZ) Export.



Shop Sheet (PDF)

  • Overview drawing containing all planes in a combined view
  • Separate page for each plane in a detailed view with annotations and dimensions

Example:

☞ A Templating licence is required for Shop Sheet (PDF) Export.



Layout Report (PDF)

  • List of laid out points with layout status and layout quality

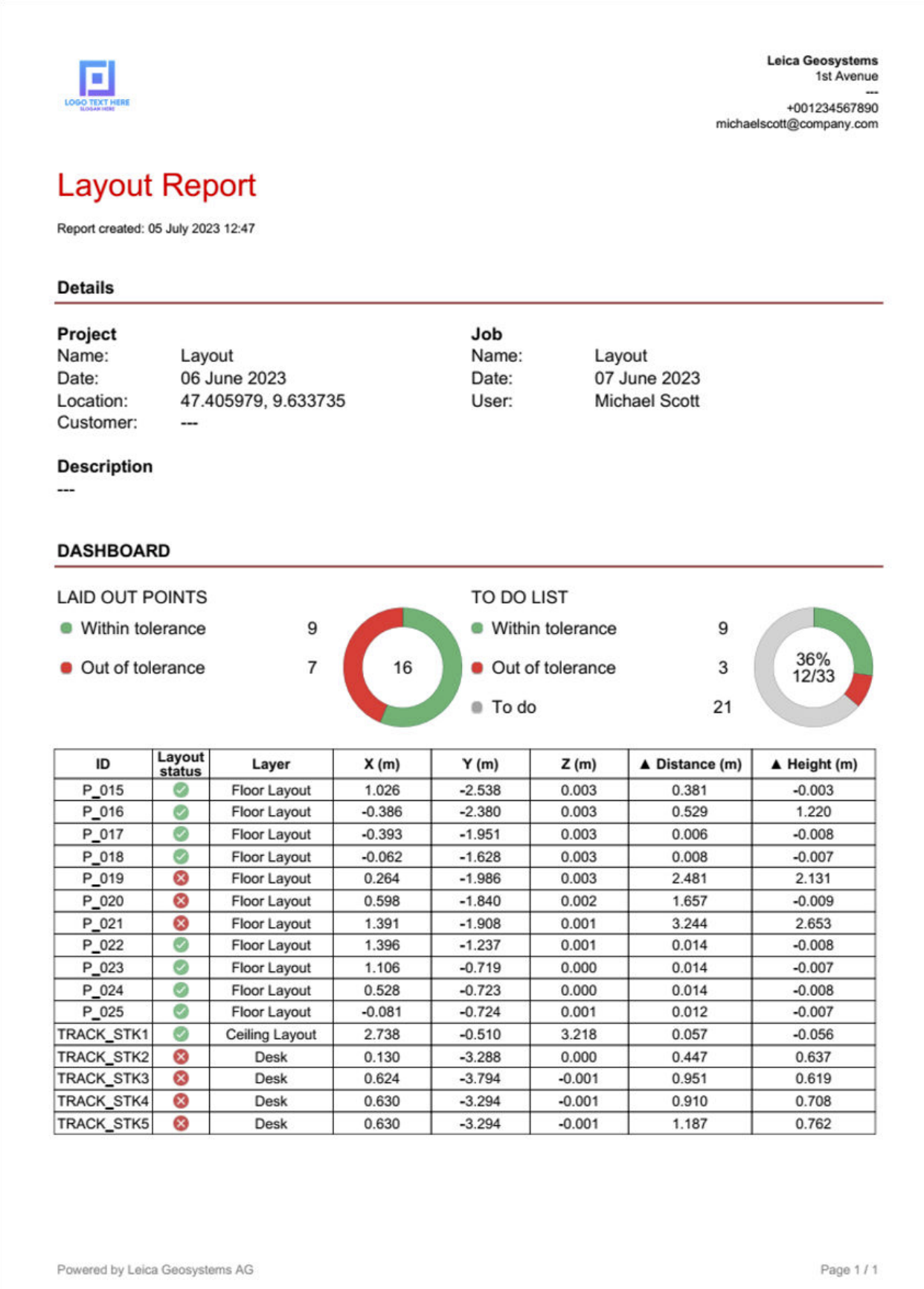

Example:

☞ A Layout licence is required for Layout Report Export.
