Range
Atmospheric conditions
Range A: Strong haze, visibility 5 km; or strong sunlight, severe heat shimmer
Range B: Light haze, visibility about 20 km; or moderate sunlight, slight heat shimmer
Range C: Overcast, no haze, visibility about 40 km; no heat shimmer
Measurements can be made to reflector tapes over the entire range without external ancillary optics.

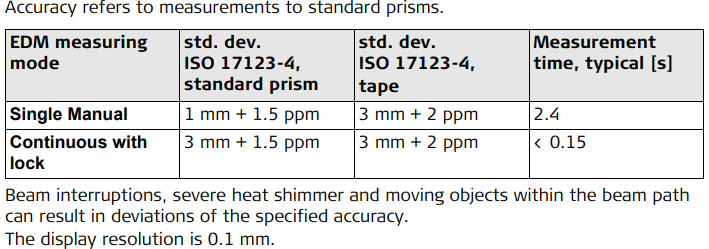

Accuracy
Characteristics
Principle: Phase measurement
Type: Coaxial, visible red laser
Carrier wave: 658 nm
Measuring system: System analyser basis 100 MHz - 150 MHz
