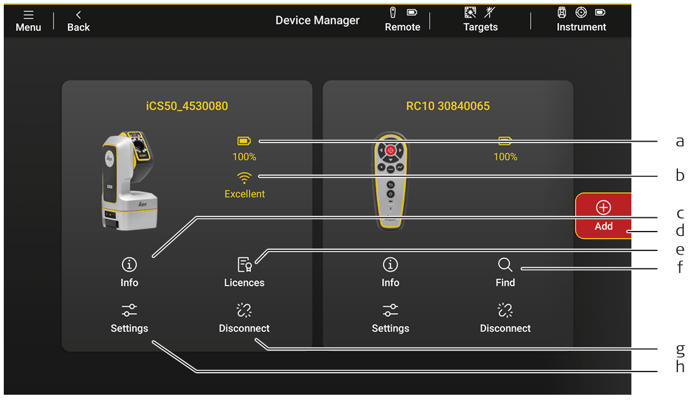

Device Manager

Add and manage and Update all Wi-Fi and Bluetooth devices, for example iCS20, iCS50 or Remote Control.

 a) Battery level
 b) Connection Status
 c) Info
Open information about the instrument, for example firmware status. It is recommended to check for instrument updates regularly. An Internet connection is required, therefore the software automatically connects to last used Wi-Fi network.
 d) Add
 Open the list of devices within the connection range.
 Add a new device to the Device Manager.
 e) Licences
Manage hardware licences, for example update the HW licences in case of adding or removing hardware options. An Internet connection is required, therefore the software automatically connects to last used Wi-Fi network.
 f) Find
 Find the device.
 g) Disconnect
 Terminate the connection to the device.
 h) Settings
 Manage settings related to the device.



How to Access:

  1.  Open the Menu.
  2. Tap Device Manager.
OR
  1.  Open the Instrument Menu from the Top Bar.
  2. Tap Device Manager.

Settings for iCS20/iCS50

Setting Description
Movement Alert Alert when device is moved.
Instrument Wi-Fi Switch the Wi-Fi of the instrument on or off.
 ☞ USB connection required to turn the Wi-Fi back.
Default sensitivity Recommended sensitivity setting
Rough sensitivity This setting is suitable for use in unstable environments, such as on floating floors. However, the accuracy is reduced.
Atmospheric Correction Configure temperature and atmospheric pressure settings.

Settings for iCR70

Setting Description
Tilt Compensator Switch the compensator on or off.
Atmospheric Correction Configure temperature and atmospheric pressure settings.
