Description: The Leica iCON gps 80 instrument and the Leica CGA100 GNSS antenna together with dedicated accessories like the Quick Release Machine Bracket CMB6, a machine computer, or an external radio offers you highest productivity and flexibility. For example, Single GNSS configuration as well as Dual GNSS configuration is possible, but the system also can be used in a Base Station configuration.
Two example configurations are shown in the following paragraphs.

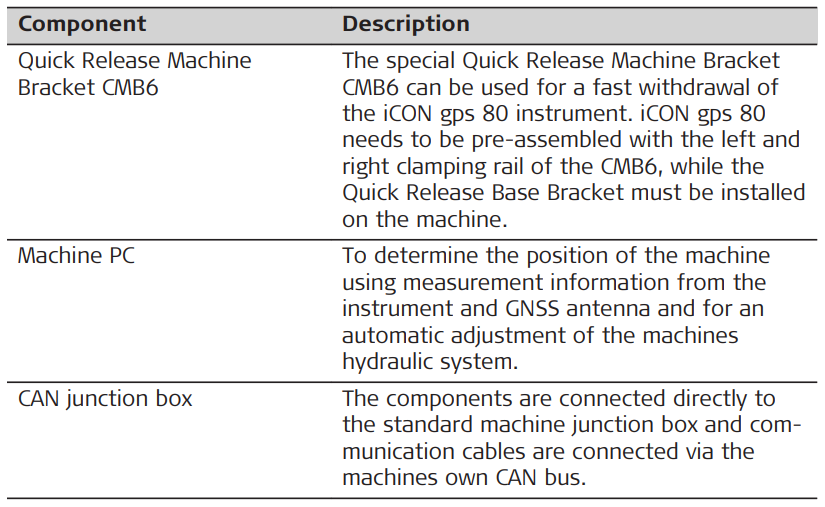

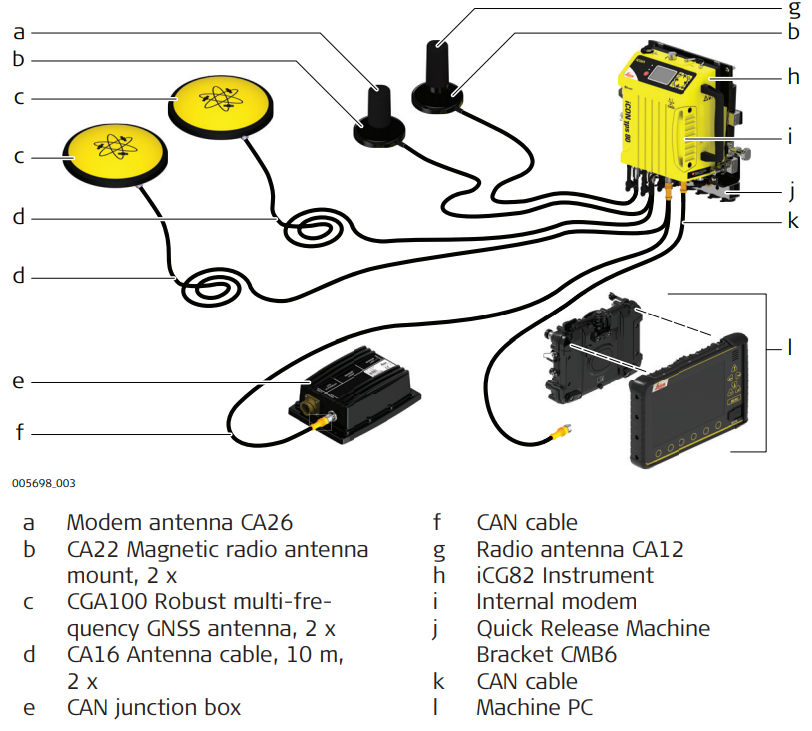

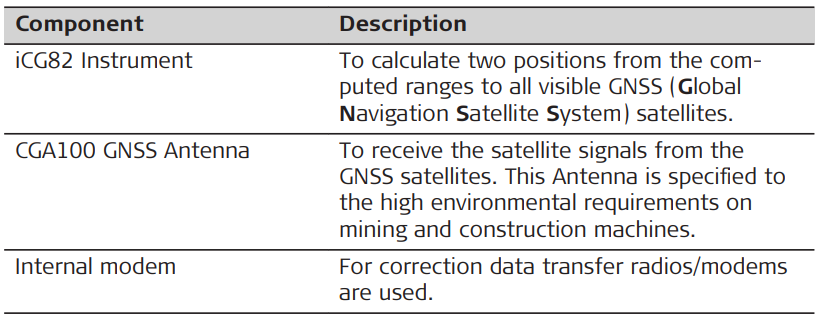

Main components, Dual GNSS configuration with internal modem

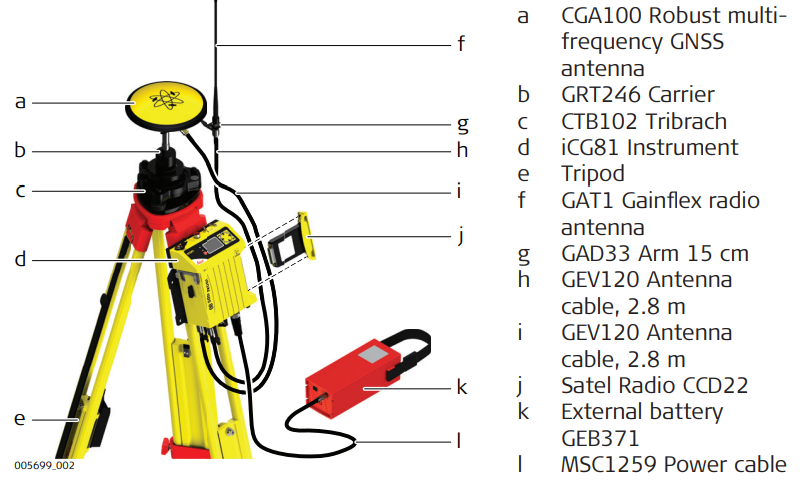

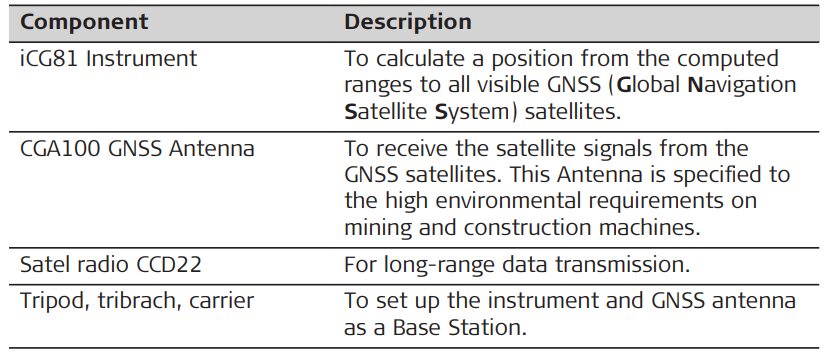

Main components, Base Station configuration
Satellite channels: Depending on the satellite systems and signals configured, a maximum number of 555 channels is allocated.
Special features iCON gps 80
iCON gps 80 instruments are equipped with several special features:
• Wide supply voltage range of 9 V to 36 V
• Voltage peak protection and reverse polarity protection
• Can be mounted on a machine in both the vertical and horizontal orientations
• Can be used near the sea
• Brackets for simple mountings
• Protection caps on connectors
• Display and keys for status and configuration
• Versatile connectivity including CAN, Serial RS232, Ethernet and Bluetooth
• USB host port for data transfer and firmware upgrade
• Integrated high speed LTE (4G) / HSPA (3.5G) / GPRS (2G) modem for countries without 4G/3G
• Integrated radio options
• Single and dual GNSS variants
• Backwards compatibility: supports external GFU communication devices for cost effective upgrade from legacy Leica systems
• Robust, compact aluminum housing
Special features CGA100
CGA100 antennas are equipped with several special features:
• Can be used near the sea
• Standard robust 5/8" Whitworth thread
• Robust TNC connector
• Future proof four constellation, multi-frequency antenna element
• Robust, compact plastic housing
Commands for Remote Config
The iCON gps 80 instrument can be communicated:
• via the MPI protocol on the serial port P1 and Bluetooth.
• via the Leica Machine Control CAN Protocol on the CAN ports.
• via the Leica Machine Control Net Protocol on the Ethernet port, Serial P1 and Bluetooth.
Documentation for these communication protocols is available on request from the Leica Geosystems representative.
