Defining Code for Each Stored Point

 Defining a code for each stored point using the code list

↪ Sample screenshots are taken from iCON site.

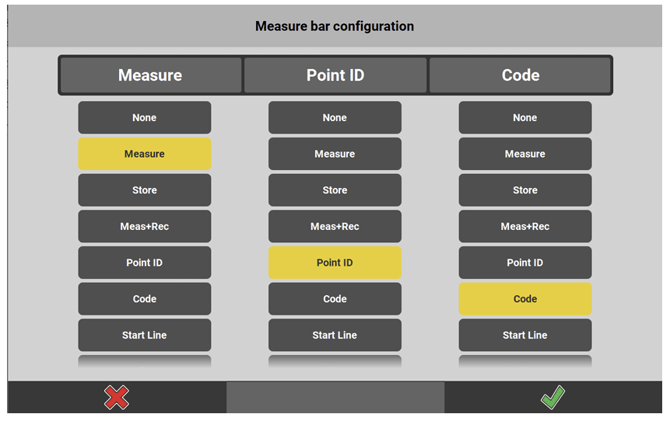

1. To define a code for specific points, configure the Measure bar to display Code. Tap and hold the Measure bar. Select Code from the Measure bar configuration screen, and tap to accept.

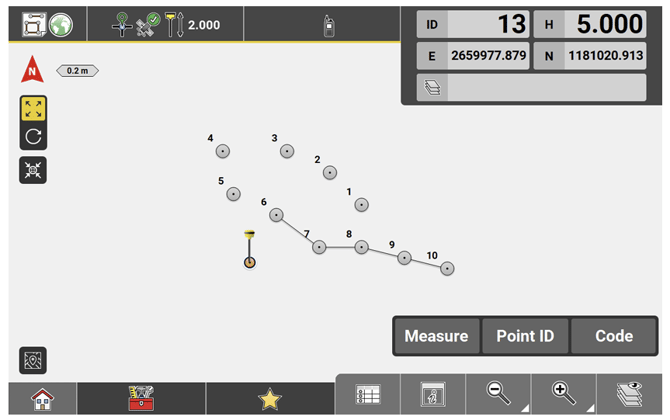

2.  Tap Code in the Measure bar.

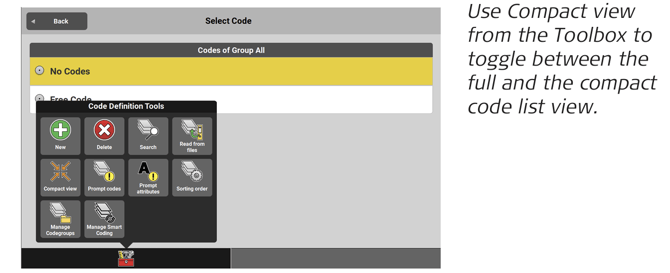

3.  Select a predefined code from the list. OR:

   Define a new code.	Select New from the Toolbox. Define a new code in the text entry field. Tap  when finished. New codes are stored in the code list. Now select the code.
   Edit an existing code.	Tap  to edit a code. When in Compact view select Edit from the Toolbox. Select the code to edit and tap to accept. Search for an existing code.  Edit the code as desired and tap  to  accept. Now select the code.
   Search for an existing code.	Select Search from the Toolbox. Enter the code to search for or a part of it in the text  entry field and tap to accept. Now select the code.
   Search for an existing code description.	Select Search from the Toolbox and tap on the Description button in the top left corner. In the text entry field, enter the code description or a part of the code description  and tap  to accept. Now select the code.

   4.

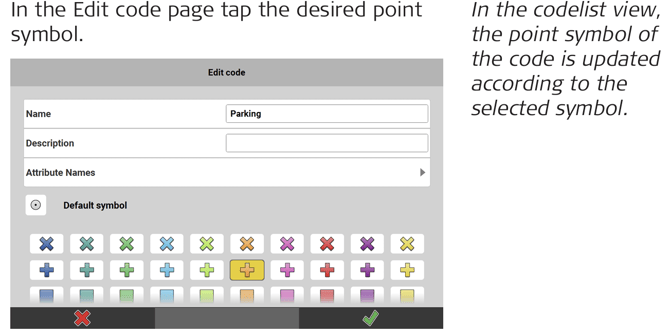

   Define or change a code symbol.
    You can choose between nine different shapes, each available in ten
    colours.

   5.



   6.  Tap to accept.
