Create Coordinate System by measuring points

Given:

• Control coordinates are available within the current job.
  • Refer to: Importing data to the project step-by-step
• Instrument is set up with a Rover profile and has a GNSS-fixed position.

  • Refer to:  How to set up a GNSS Profile for iCONiCG30/70/100/160 or
    How to set up a GNSS Profile for iCON iCG60

Create a new Coordinate System step-by-step

1. Open the Coordinate System app.

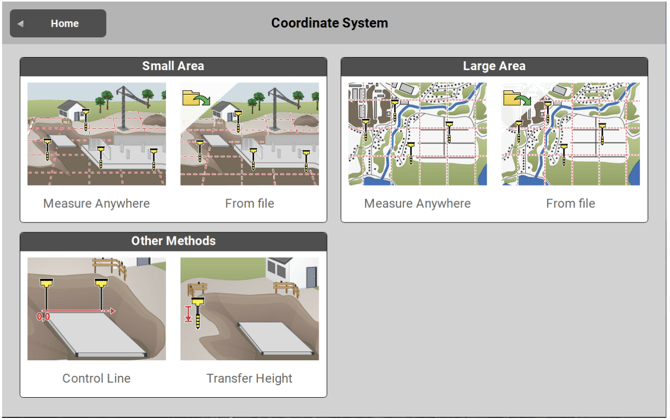

2. From the Coordinate System Menu, go to Small Area and tap on Measure Anywhere.

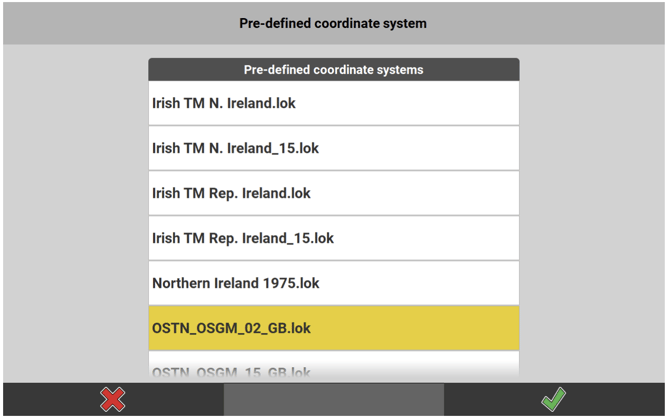

   1. For Large Area the workflow is the same, except that for Large Area a predefined coordinate system must be selected.

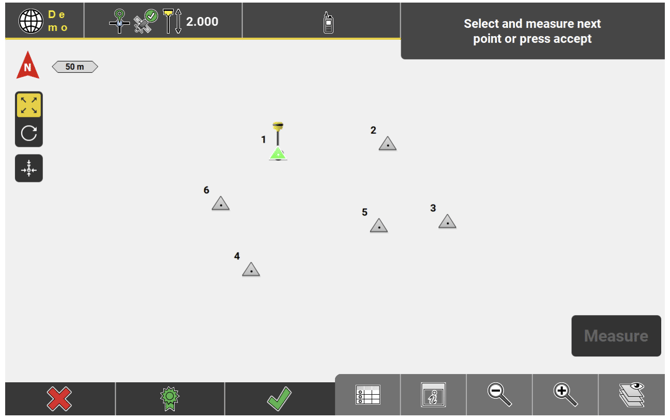

3. Select the first point, then press Measure. Repeat for further points.

   1. Define Measure Mode in the Status 1 menu. According to the setting selected, the measure key may differ from the description within this guide.

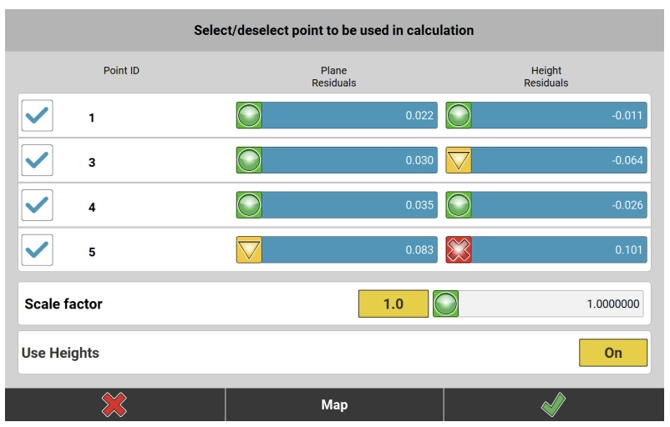

4. Tap in the Map screen to view residuals for each measured point.

   1. - Tap to deselect a point.
      - Heights can be turned On and Off altogether.
      - Tap on individual Plane Residuals or Height Residuals to deselect single values.
      - For a Small Area the scale can be set/locked to 1.000.
5. Tap Map at the bottom of the screen to return to the Map screen.
6. In the Map screen tap to save changes and create the Coordinate System.
   1. It is possible to cancel and store an unfinished localisation. In this case the unfinished localisation can be resumed the next time the Coordinate System application is started.

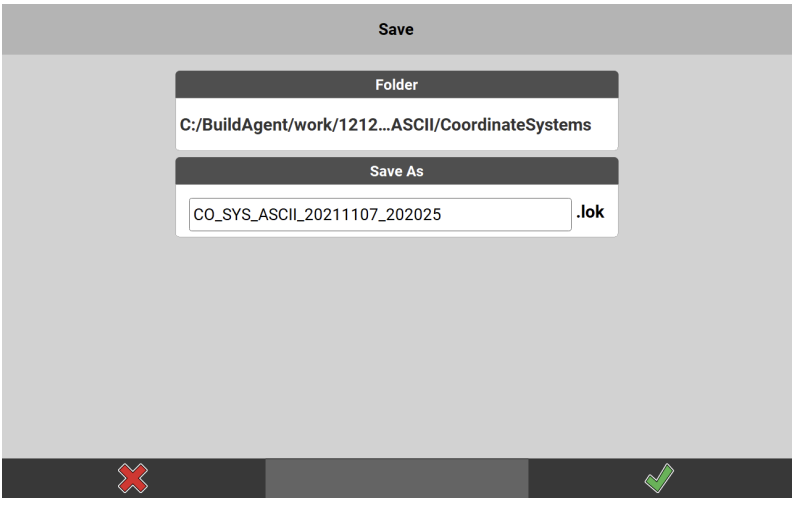

7. Confirm or enter a new name for the *.lok file and tap to save the file.
