Create an Exclusion Area  8.7.2

 Create an Exclusion Area

➜ The main workflow refers to GNSS. For Total Station press Measure, then Store.

➜ For illustration purposes screenshots are taken from iCON site.

1.  Open the Surfaces & Volumes app.

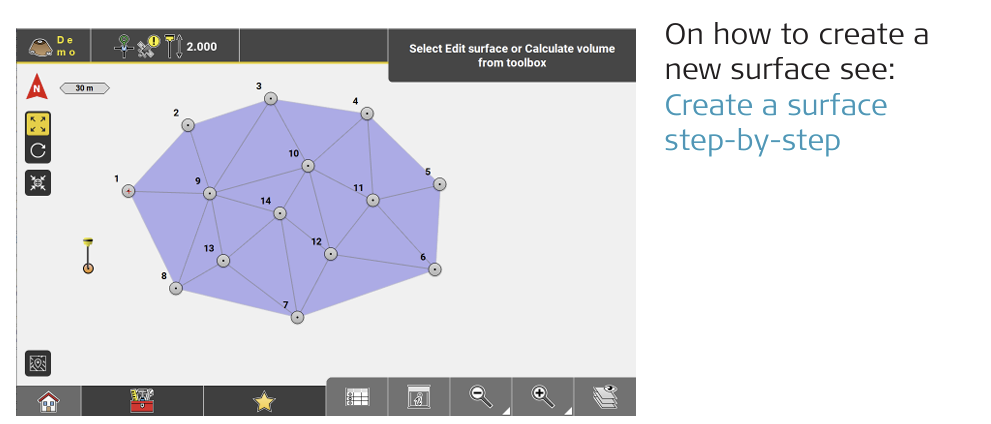

2.  In the Map View select the surface for which an exclusion area shall be defined by tapping onto it.

   ---



   ---

3.  From the Toolbox select Edit Surface.

   ---



   ---

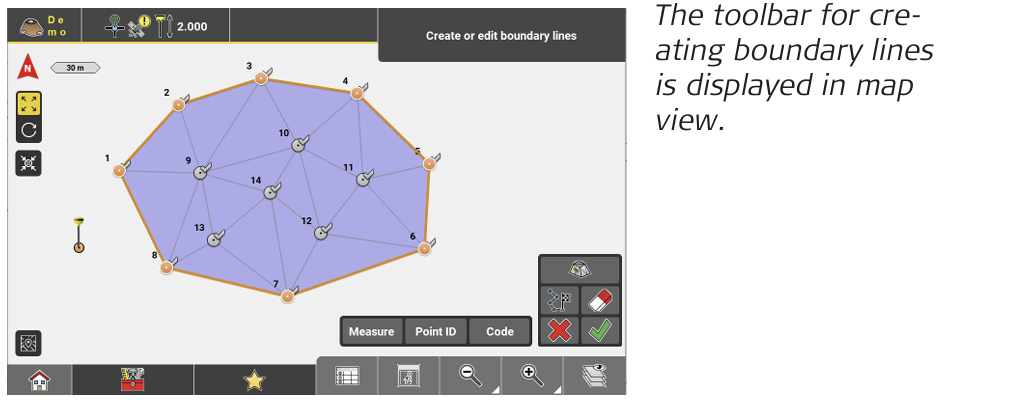

4.  Tap for editing boundaries.

   ---



   ---

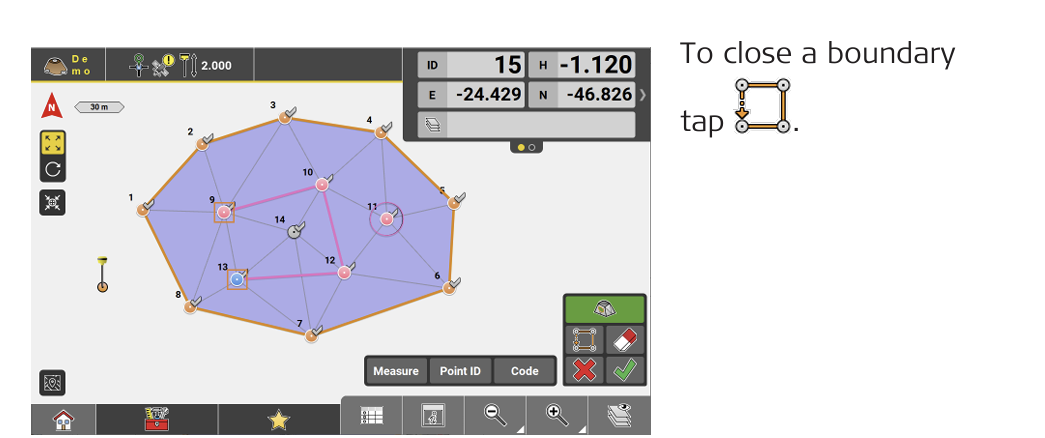

5.  Tap  and select or measure points or lines to create one or more exclusion areas.

   ---



   ---

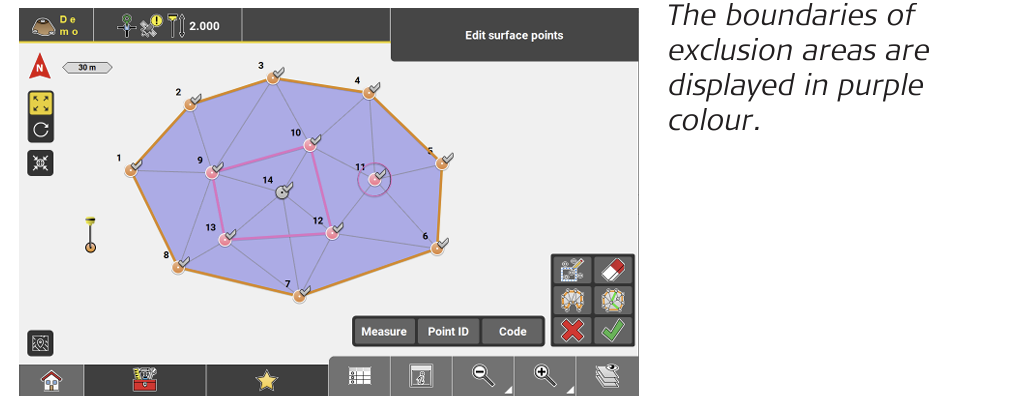

6.  Tap to finish the exclusion area definition.

   ---

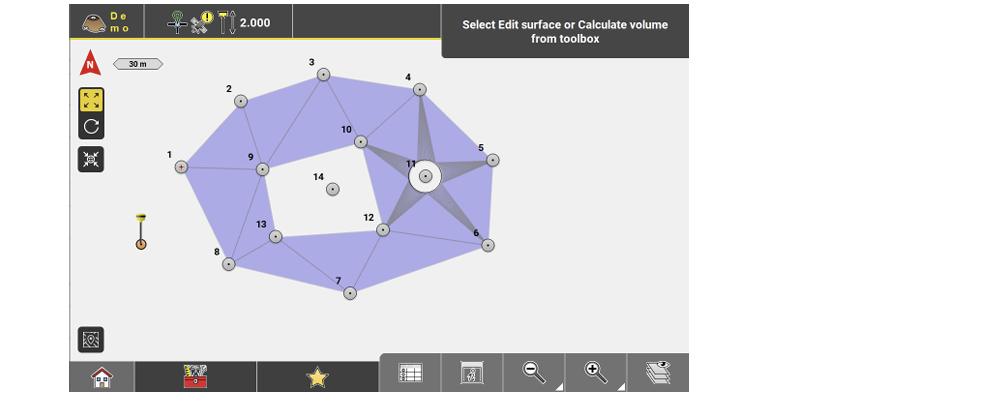

7.  Tap again to apply the defined exclusion areas to the selected surface.
