Conformity Declarations: iCON gps 160 10.5.1

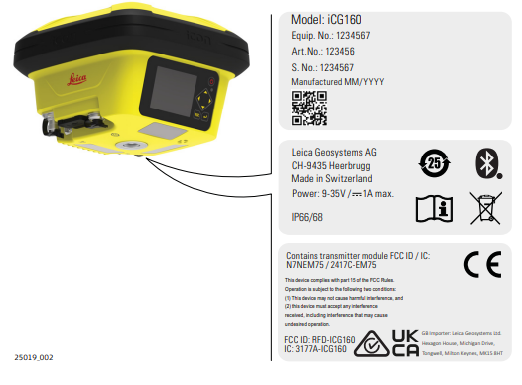

Labelling iCON gps 160 SmartAntenna

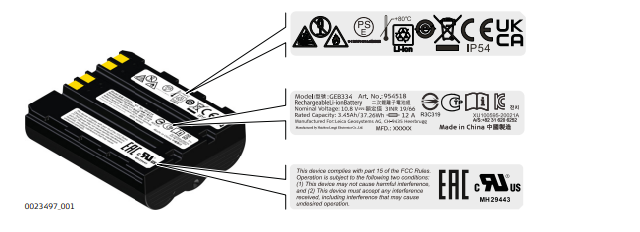

Labelling internal battery GEB334

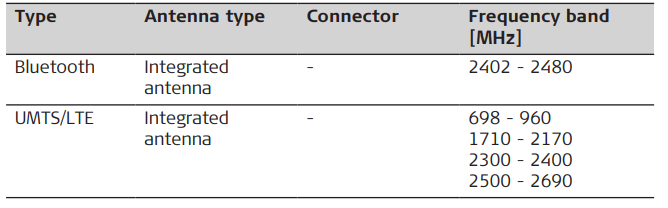

Antenna

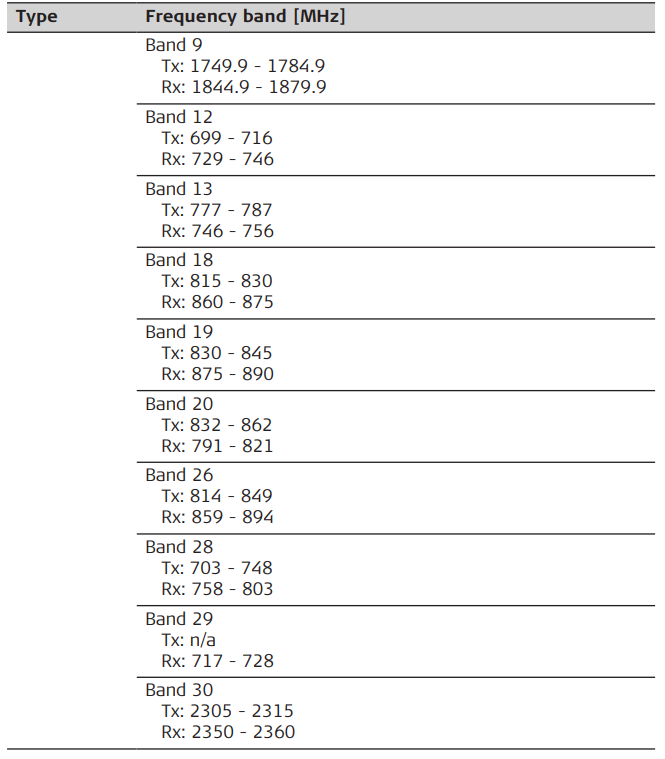

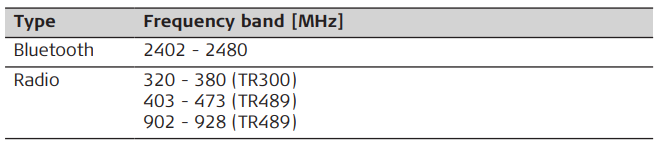

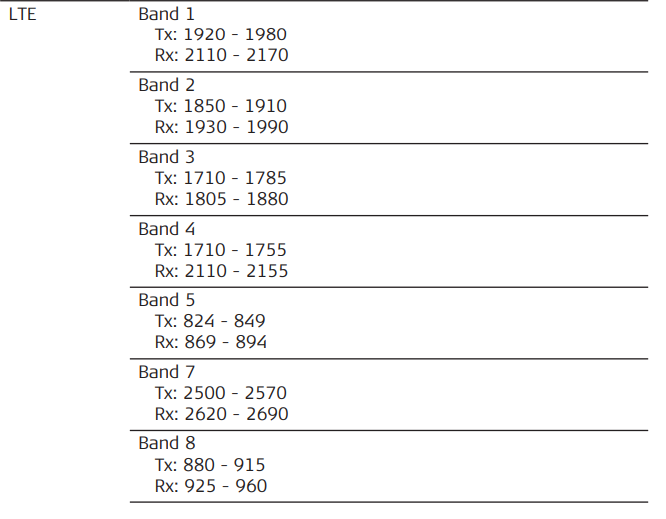

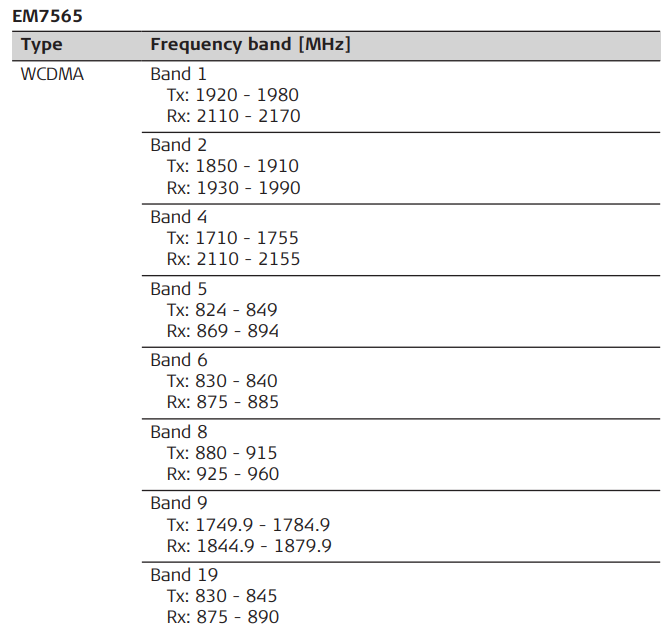

Frequency band


Output power


Radiation Exposure Statement: The radiated output power of the instrument is below the radio frequency exposure limits. Nevertheless, the instrument should be used in such a manner
that the potential for human contact during normal operation is minimised.


Specific Absorption Rate (SAR):  The product meets the limits for the maximum permissible exposure of the guide-lines and standards which are force in this respect. The product must be used with the recommended antenna. A separation distance of at least 31
centimetres should be kept between the antenna and the body of the user or nearby person within the intended application.

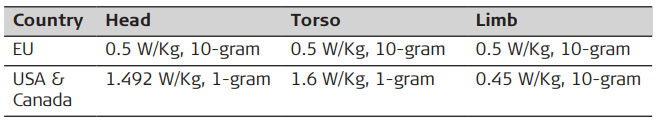

SAR values

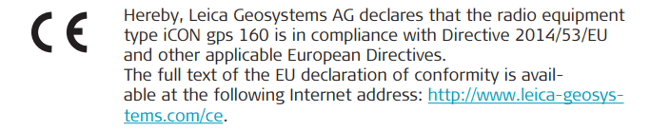

EU


USA


This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference  that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, it may cause
harmful interference to radio communications.

However, there is no guarantee that interference does not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.


Changes or modifications not expressly approved by Leica Geosystems for compliance could void the user's authority to operate the equipment.


Canada


Canada Compliance Statement
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licenceexempt RSS(s). Operation is subject to the following two conditions:

1. This device may not cause interference
2. This device must accept any interference, including interference that may cause undesired operation of the device

Canada Déclaration de Conformité
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes:
1. L’appareil ne doit pas produire de brouillage
2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement du dispositif


Japan

• This device is granted pursuant to the Japanese Radio Law (電波法) and the
Japanese Telecommunications Business Law (電気通信事業法).
• This device should not be modified (otherwise the granted designation number will become invalid).


 Others

The conformity for countries with other national regulations has to be approved prior to use and operation.
