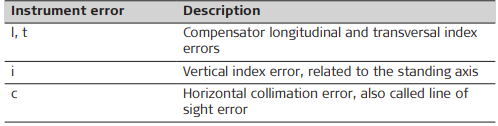

Description: The combined adjustment procedure determines the following instrument errors in one process:
Combined adjustment procedure step-by-step
The following description explains the most common settings:
➜ It is recommended to use a clean Leica circular prism as target. Do not use a 360° prism.
- Select Sensor from the Home Menu.
- Select Sensor Calibration.
• To start calibration, tap
.

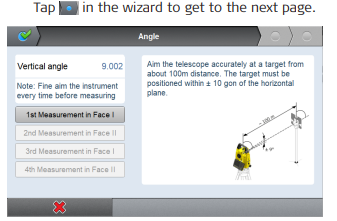

Follow the wizard which guides through the calibration. - • Aim the telescope accurately at a target at about 100 m distant. The target must be positioned within ± 9°/± 10 gon of the horizontal plane.
• Start the procedure in face I.
• Press the measurement keys to measure and to continue to the next step.
➜ The fine aiming has to be performed manually in both faces. -

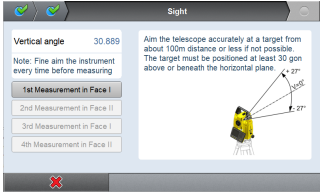

• Aim the telescope accurately at a target at about 100 m distant or less if not possible. The target must be positioned at least 27°/30 gon above or beneath the horizontal plane.
• Start the procedure in face I.
• Press the measurement keys to measure and to continue to the next step. Tap
in the wizard to get to the next page.
➜ The fine aiming has to be performed manually in both faces. - Adjustment Accuracy
After pressing the last

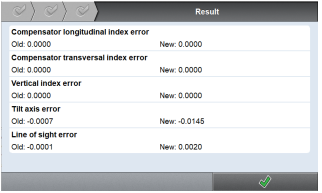

in the wizard the results are shown and stored to the instrument.
- Tap
to get back to the Devices page.
Calibration report
The purpose of the calibration report is a documentation of the results of the field calibration. The report proofs the quality of the equipment for quality insurance.
At the end of the sensor calibration, a report (*.calibration) is created automatically. The report contains all calibration values. The report is stored on the hard drive of the controller (for instruments with keyboard unit only):
The reports and results of past calibrations can also be exported.
Select Export from the Home Menu. Tap within the section Details and select TS Calibration.
