Code Grouping

 Grouping Codes

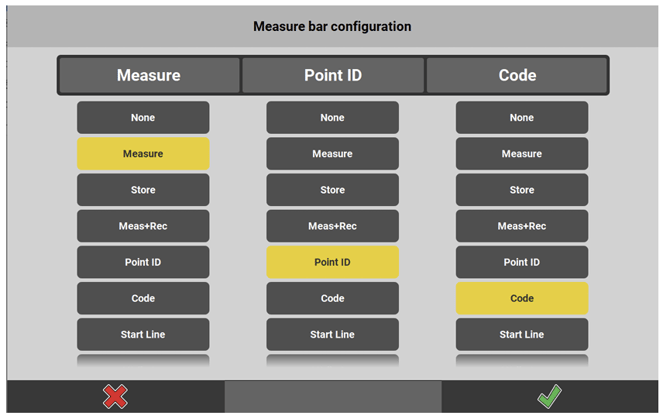

  1. To manage code groups, configure the Measure bar to display Code. Tap and hold the Measure bar. Select Code from the Measure bar configuration screen, and tap to accept.
  2. Back in the Map View tap Code in the Measure bar.

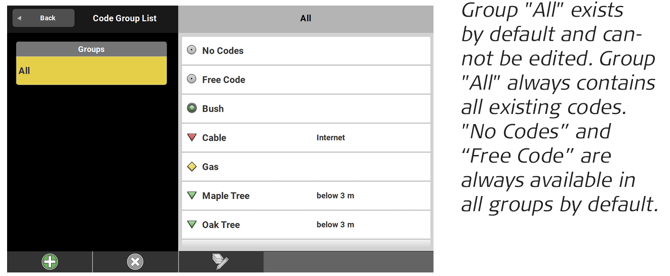

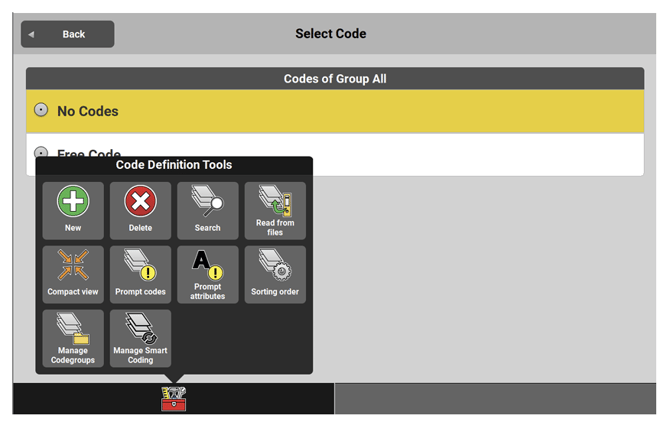

  3. In the Select Code page open the Toolbox and tap Manage Code groups. On the left all Groups are listed, on the right the codes belonging to the selected group are shown.

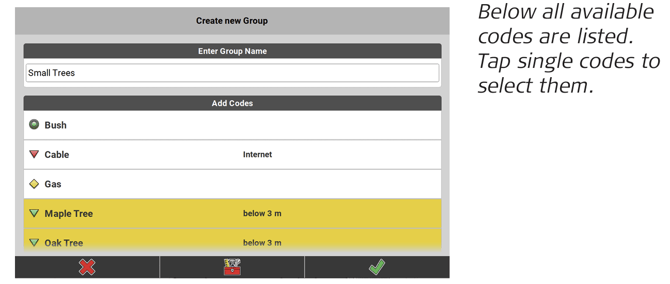

  4.  Tap to create a new code group and enter a code group name. ↪ The Toolbox offers functionality to switch to Compact view to Search for single codes and to change the Sorting order.

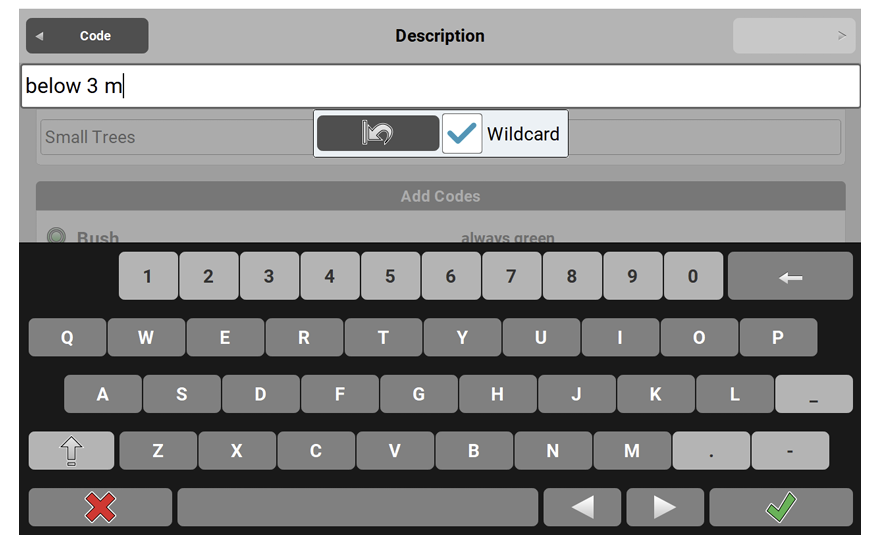

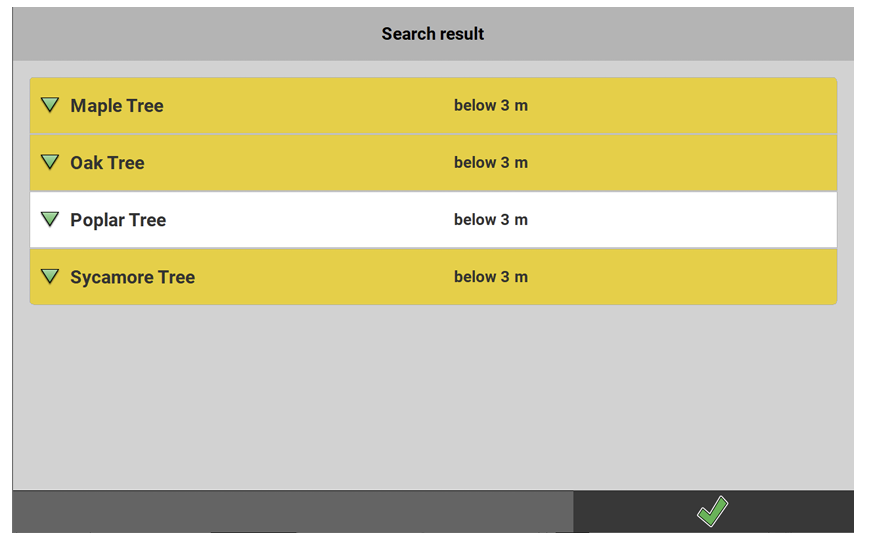

    ↪ If single codes have a description, you can search for codes using their description. Tap to start the search. ↪ Select the codes to be added to the group and confirm with .

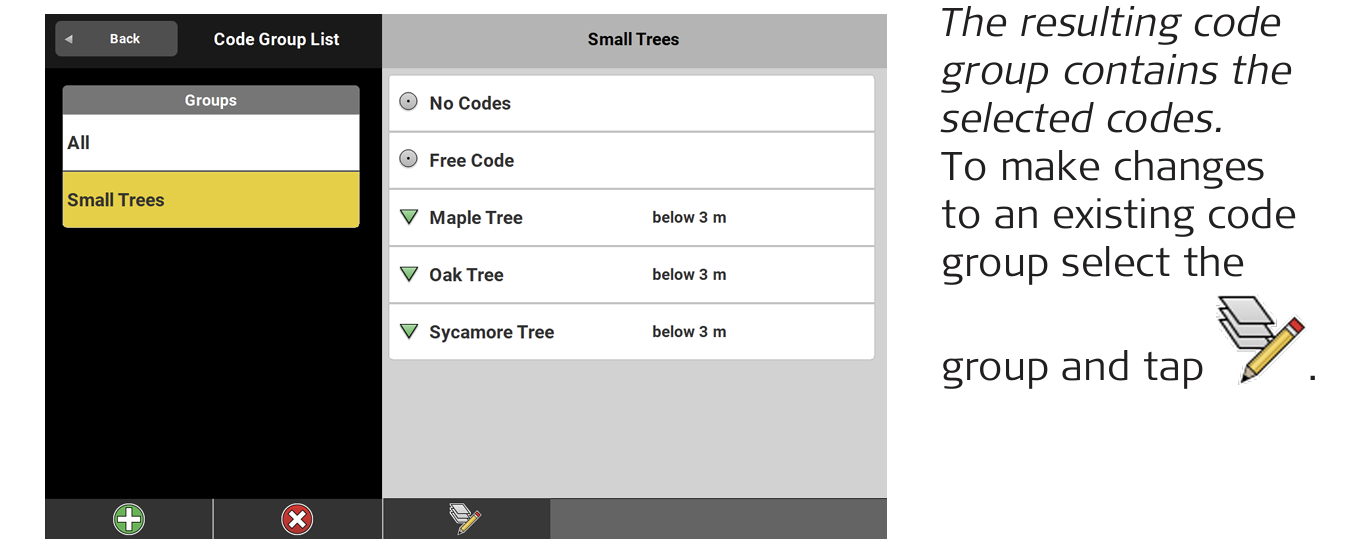

  5. Tap  to add the selected codes to the new code group.

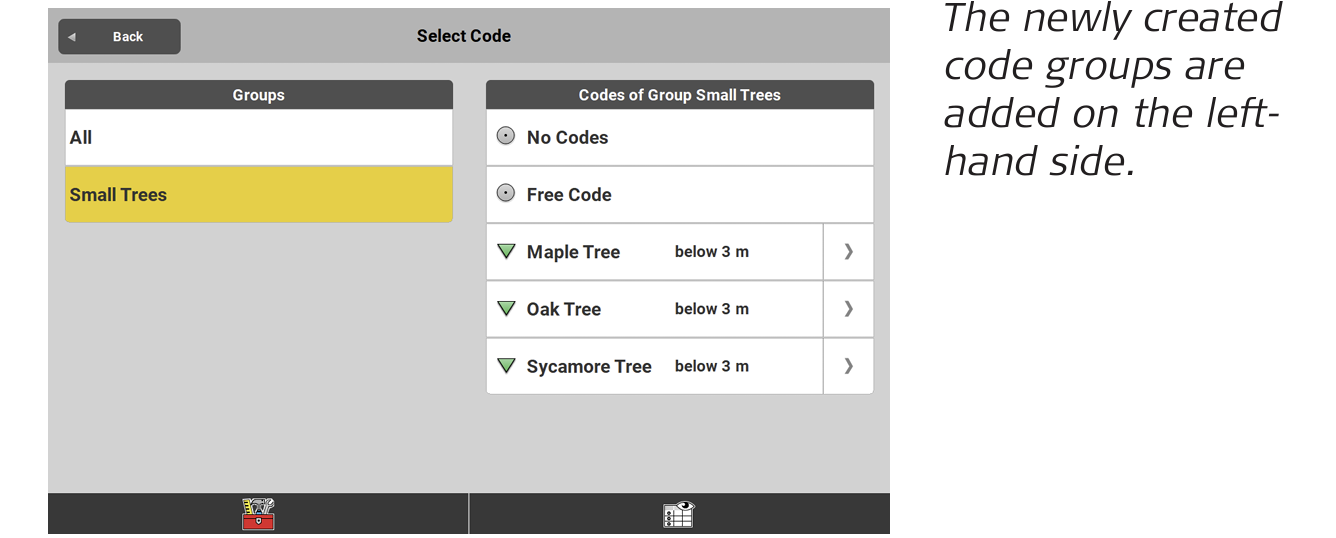

  6.  Tap Back to be returned to the Select Code page. ↪ Tap /  to toggle between a split screen showing the list of code groups on the left and a screen showing only the codes belonging to the selected code group.
    ↪ To delete a code group open the Toolbox and go to Manage Code
    groups. Tap  to access the Delete Code Group(s) page. Select
     the group(s) to be deleted and tap .
