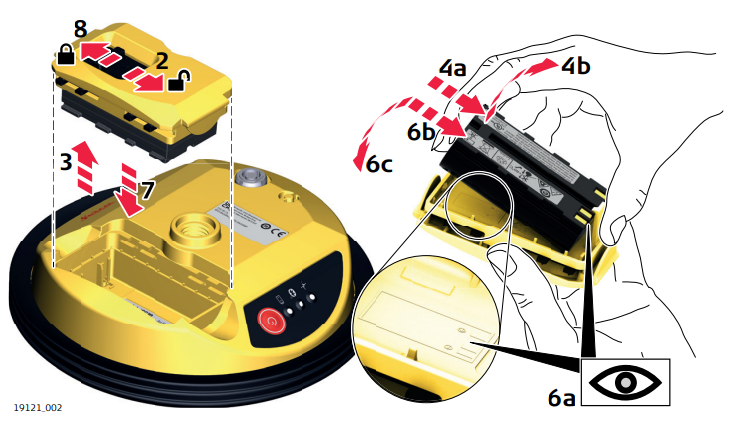

Insert and remove the battery on the iCON gps 30 step-by-step
- Turn iCON gps 30 over to gain access to the battery compartment.
- Open the battery compartment by pushing the slide fastener in the direction of the arrow with the open-lock symbol.
- Pull out the battery housing. The battery is attached to the housing.
- Hold the battery housing and pull the battery from the battery housing.
- A polarity of the battery is displayed inside the battery housing. This is a visual aid to assist in placing the battery correctly.
- Place the battery onto the battery housing, ensuring that the contacts are facing outward. Click the battery into position
- Place the battery housing with the inserted battery back into the battery compartment of the instrument.
- Close the battery compartment by pushing the slide fastener in the direction of the arrow with the close-lock symbol.
